Emulation Design Considerations
-
-
-
-
22 Designing for JTAG Emulation

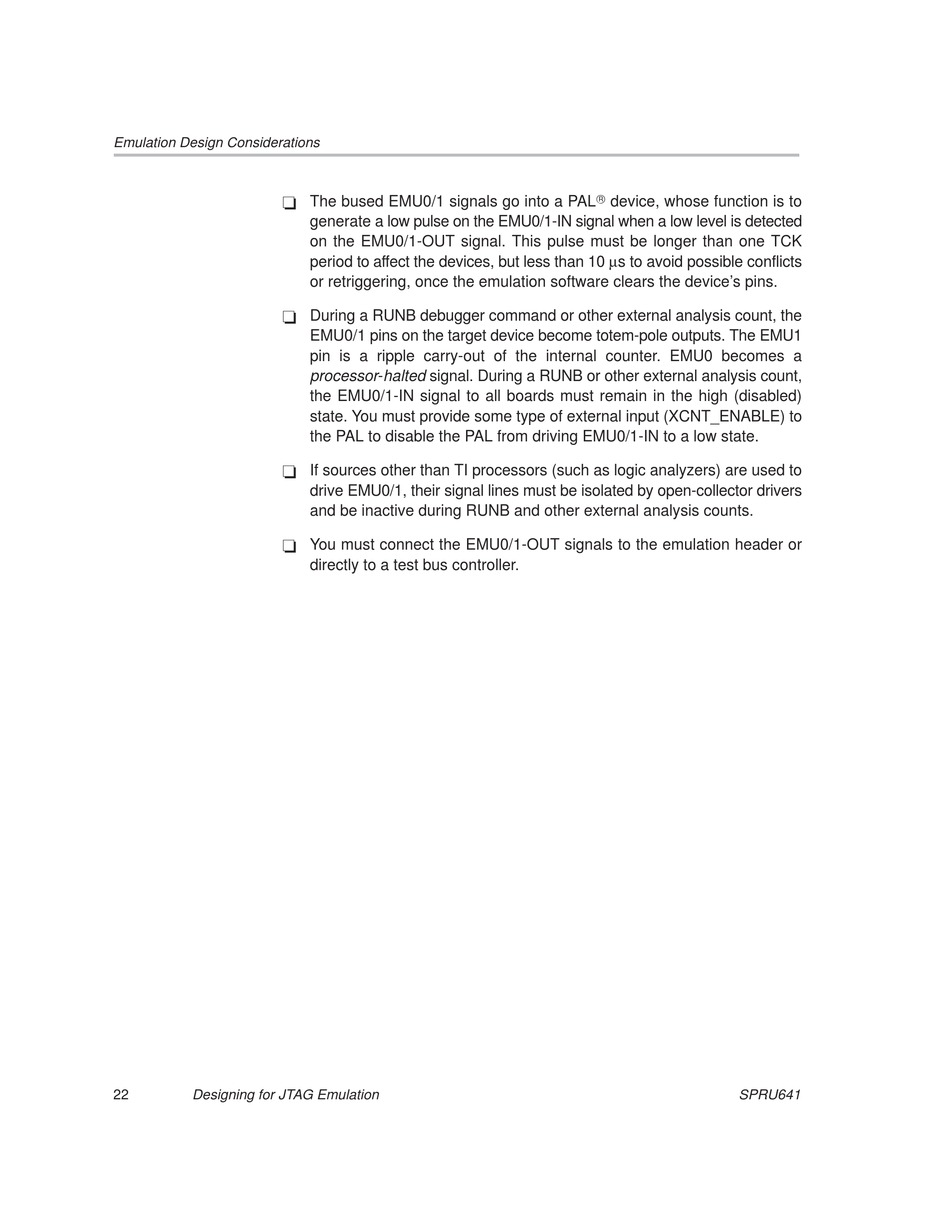

The bused EMU0/1 signals go into a PAL
generate a low pulse on the EMU0/1-IN signal when a low level is detected
on the EMU0/1-OUT signal. This pulse must be longer than one TCK
period to affect the devices, but less than 10 µs to avoid possible conflicts
or retriggering, once the emulation software clears the device's pins.
During a RUNB debugger command or other external analysis count, the
EMU0/1 pins on the target device become totem-pole outputs. The EMU1
pin is a ripple carry-out of the internal counter. EMU0 becomes a
processor-halted signal. During a RUNB or other external analysis count,
the EMU0/1-IN signal to all boards must remain in the high (disabled)
state. You must provide some type of external input (XCNT_ENABLE) to
the PAL to disable the PAL from driving EMU0/1-IN to a low state.
If sources other than TI processors (such as logic analyzers) are used to
drive EMU0/1, their signal lines must be isolated by open-collector drivers
and be inactive during RUNB and other external analysis counts.
You must connect the EMU0/1-OUT signals to the emulation header or
directly to a test bus controller.

