1. Getting Started

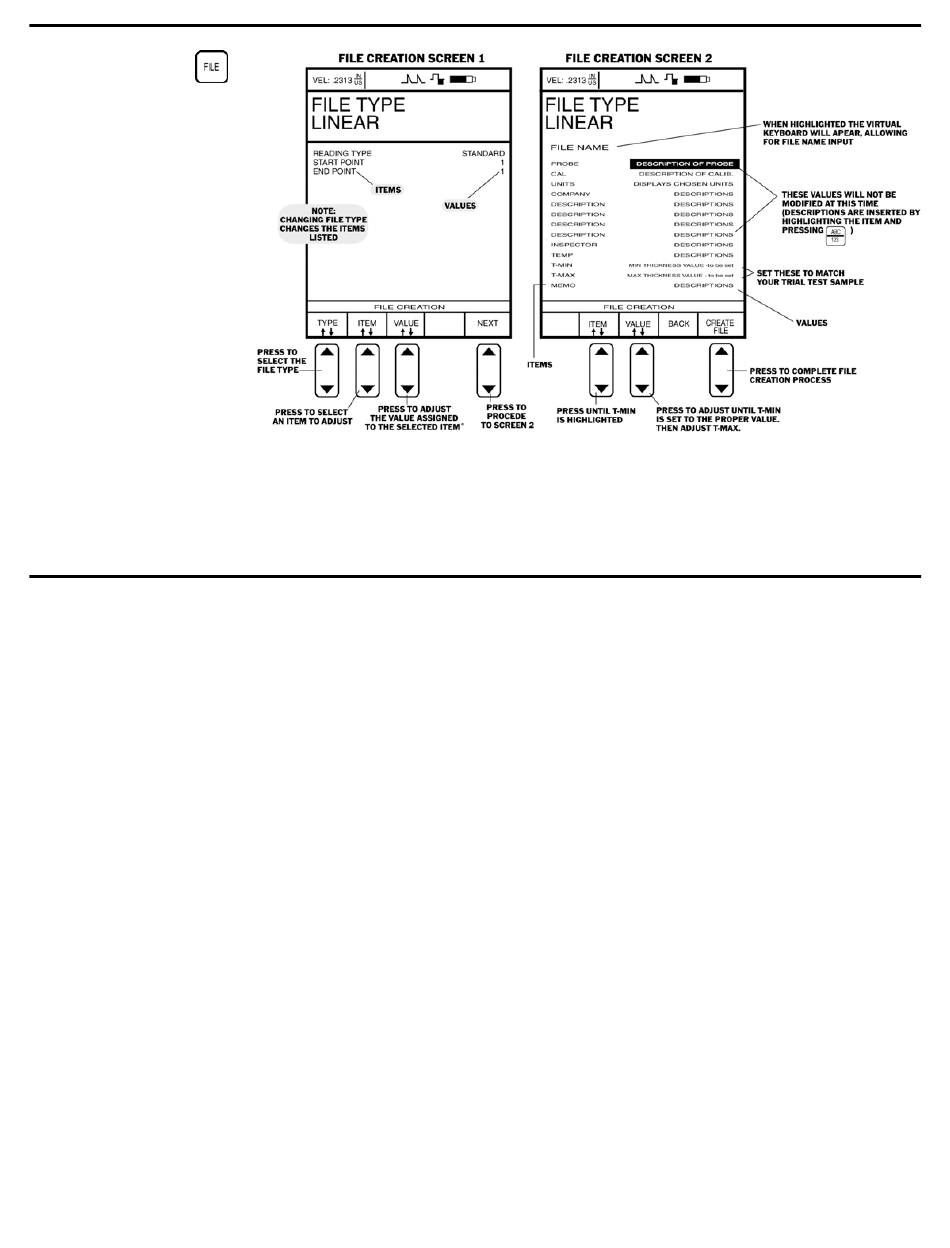

FIGURE 1-6—Pressing
activates the FILE
CREATION FUNCTION. Here,
the user completes the first
step in the file creation
process by specifying the
file type. (In this case, the
LINEAR file type has been
selected.) The user then
defines various file features
called ITEMs. The second
display, which appears
during the file creation
process, allows the user to
specify the File Name (as
shown in Figure 1-7) and
maximum and minimum
acceptable material
thicknesses. In Section
5.3.2, you'll learn how to use
this screen to insert various
descriptions into the file
header (specifying the probe
serial number, for instance).
