4. Measuring Thickness

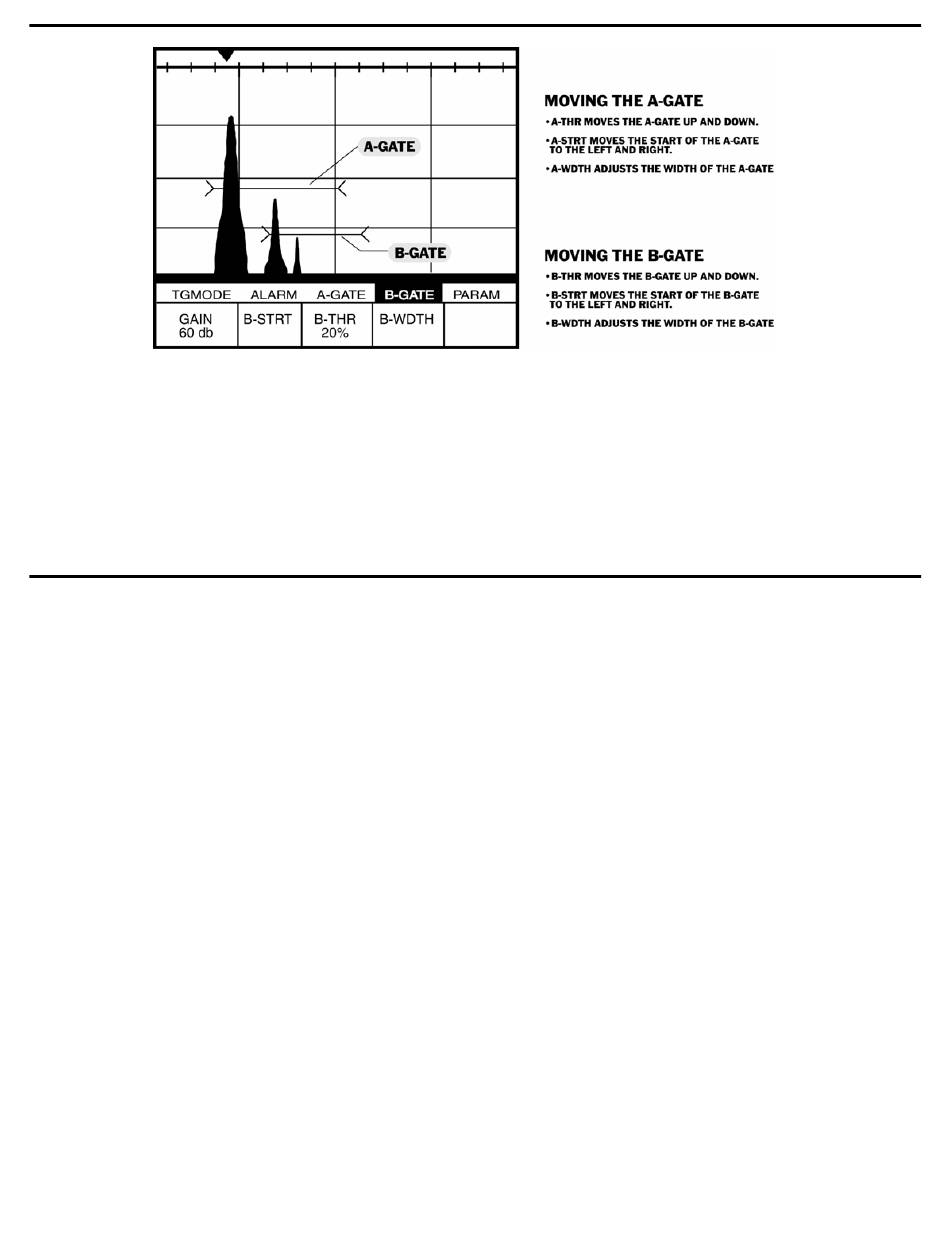

FIGURE 4-14—The width and starting position of the A-gate and B-gate can be adjusted. Adjusting the height of either gate
changes the point at which it will be crossed by the A-scan.
DMS 2 Operating Manual
Page 121
