2.10.3.2. DSDF Original Regi. Drive

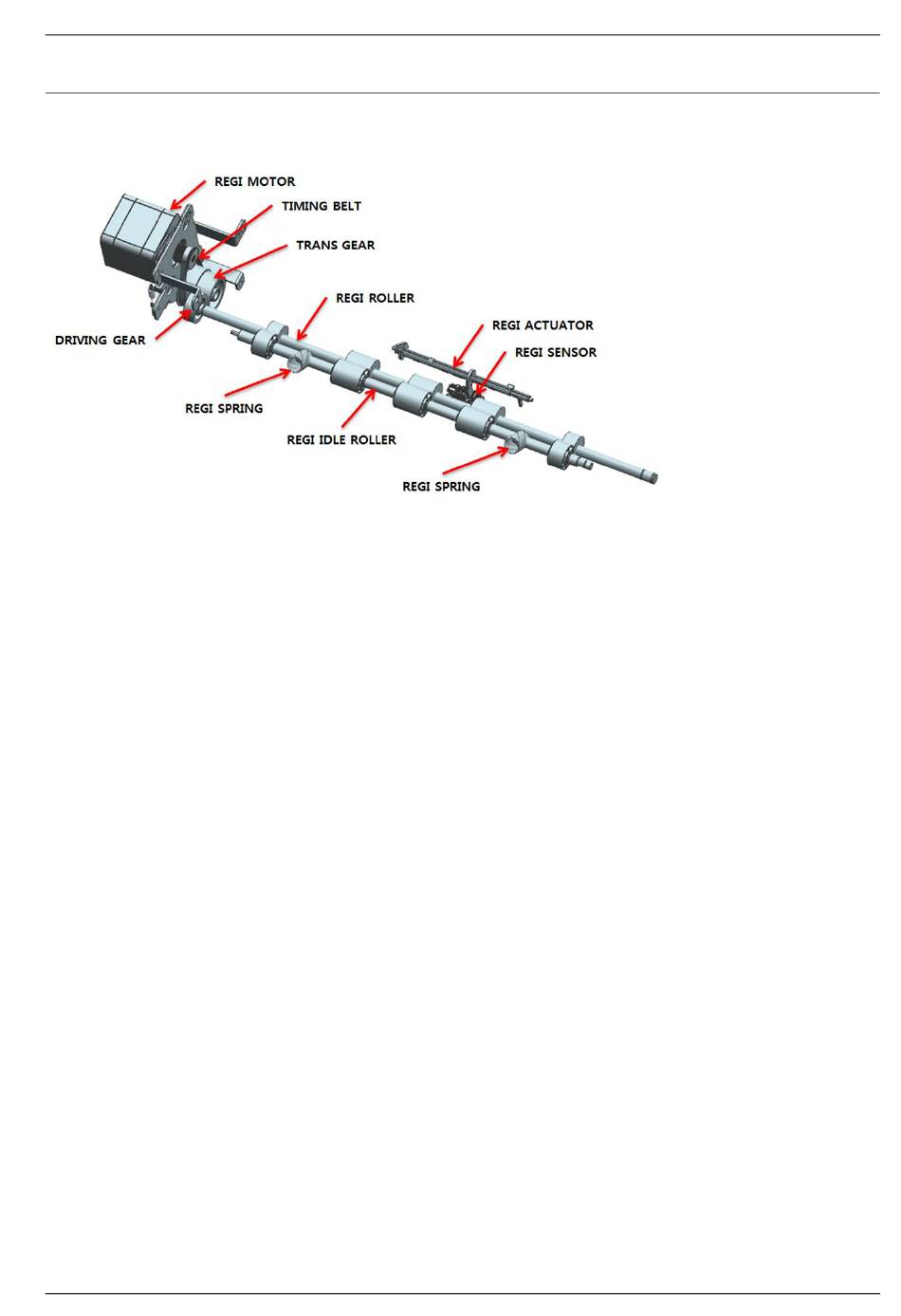

DSDF Original Regi Drive consists of Regi motor, Regi roller, Regi sensor etc.
•
Operation Procedure
1) The picked up original is detected by Regi-Actuator and the regi sensor is on. At this time, the regi motor is
stopped and the original is aligned.
2) After the regi sensor is on, regi motor rotates.
3) After the transferred original passes the regi. actuator, the regi sensor is off and the regi motor stops.
