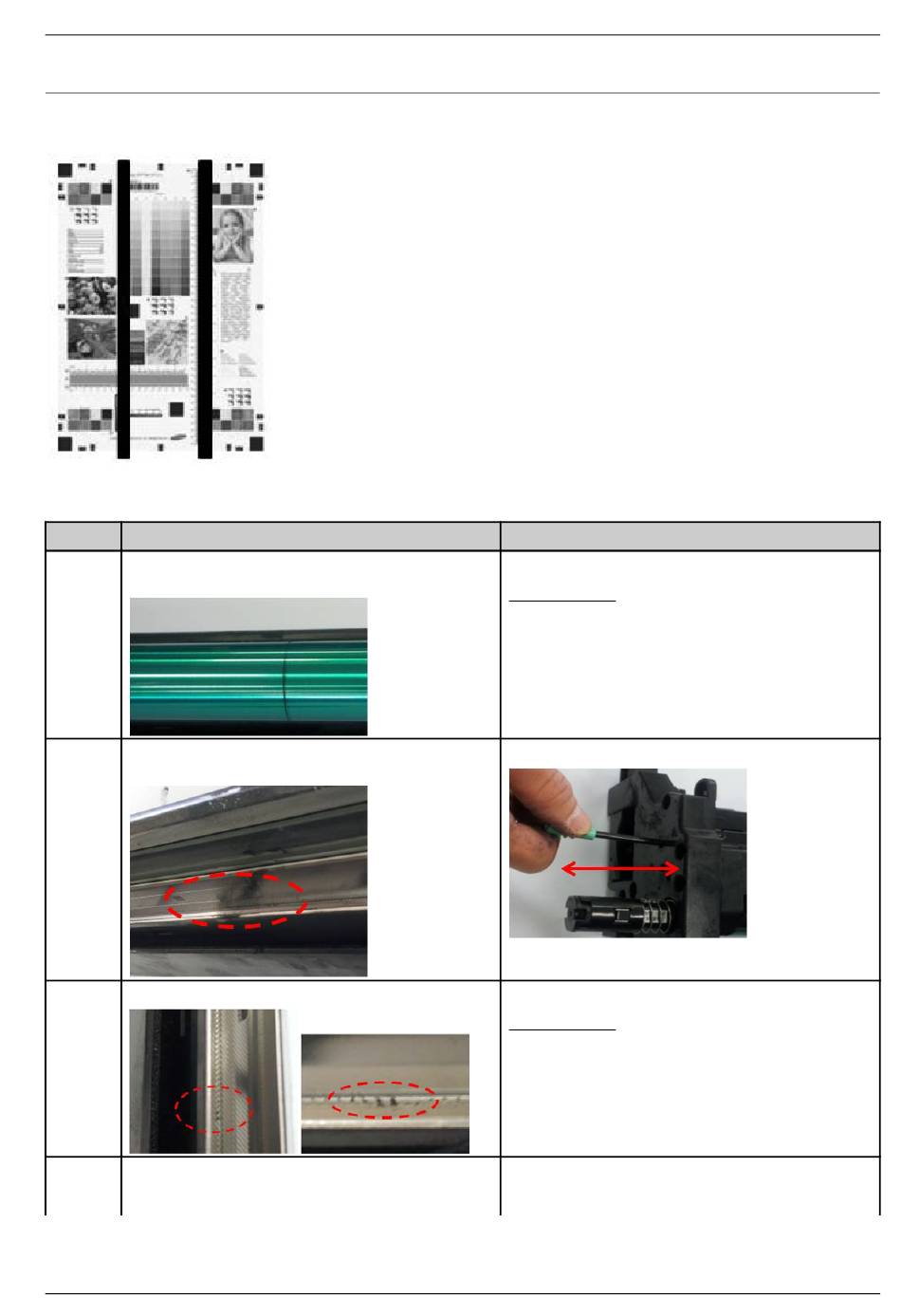

4.7.1. Vertical Black Lines

A. Typical faulty images
B. Troubleshooting procedure
Step Check item
1 OPC is scratched or contaminated in the vertical
direction.
2 If Charge Scorotron saw in Developer unit is
contaminated?
3 If the Charge Scorotron saw is defected?
4 Scanner unit is contaminated.
(ADF Glass / Mirror / CCD Sensor)
Copyright© 1995-2017 SAMSUNG. All rights reserved.
Action
Replace Drum unit.
(Refer to 3.2.1.)
Clean the Scorotron with the Cleaning bar.
Replace Drum unit.
(Refer to 3.2.1.)
Wife the surface of contaminated parts with a soft cloth.
