3. Disassembly and Reassembly

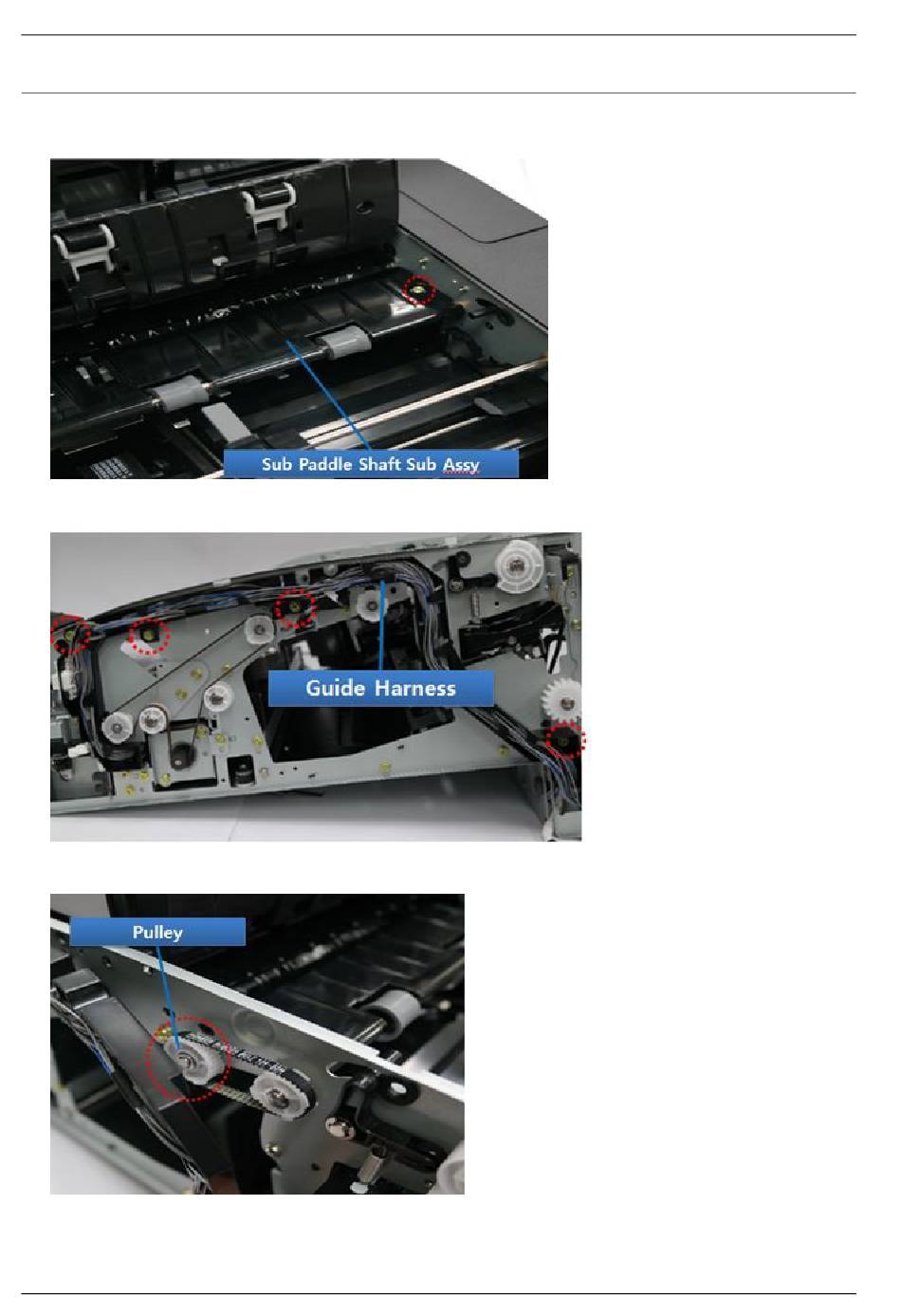

3.3.34.5. Sub Paddle Shaft Sub Assy

1) Open the Cover Top Tray Sub Assy. Then, remove 1 screw securing the Sub Paddle Shaft Sub Assy.
2) Remove 4 screws securing the Guide Harness.
3) Remove the E-Ring. Then, remove the Pulley.
3-79
