3. Disassembly and Reassembly

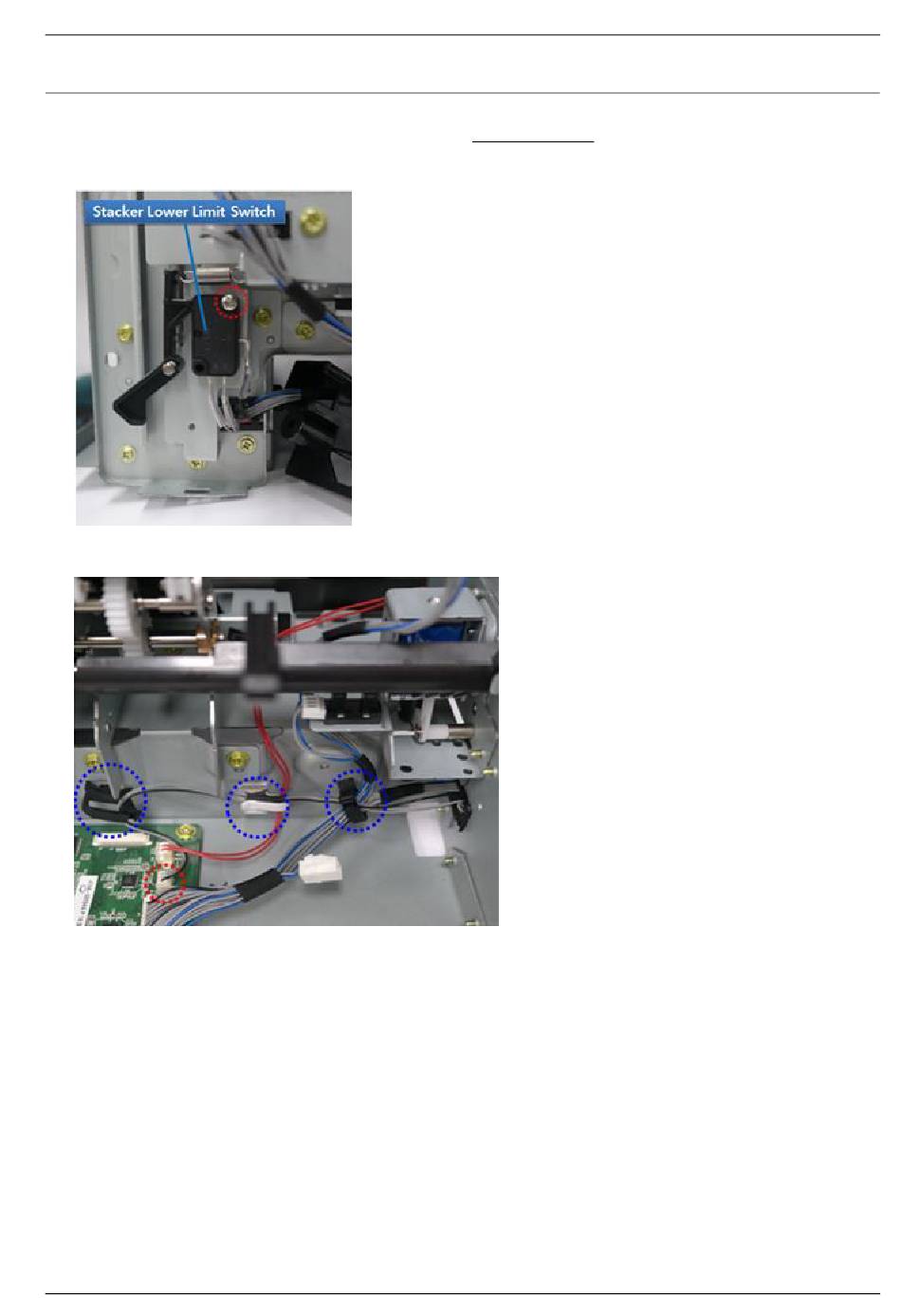

3.3.34.15. Stacker Lower Limit Switch

1) Follow the step 1~10 in Front Jogger Motor disassembly. (Refer to 3.3.34.6.)
2) Remove 1 screw.
3) Open 3 clamps. Unplug the connector. And, release the sensor.
Copyright© 1995-2017 SAMSUNG. All rights reserved.
3-96
