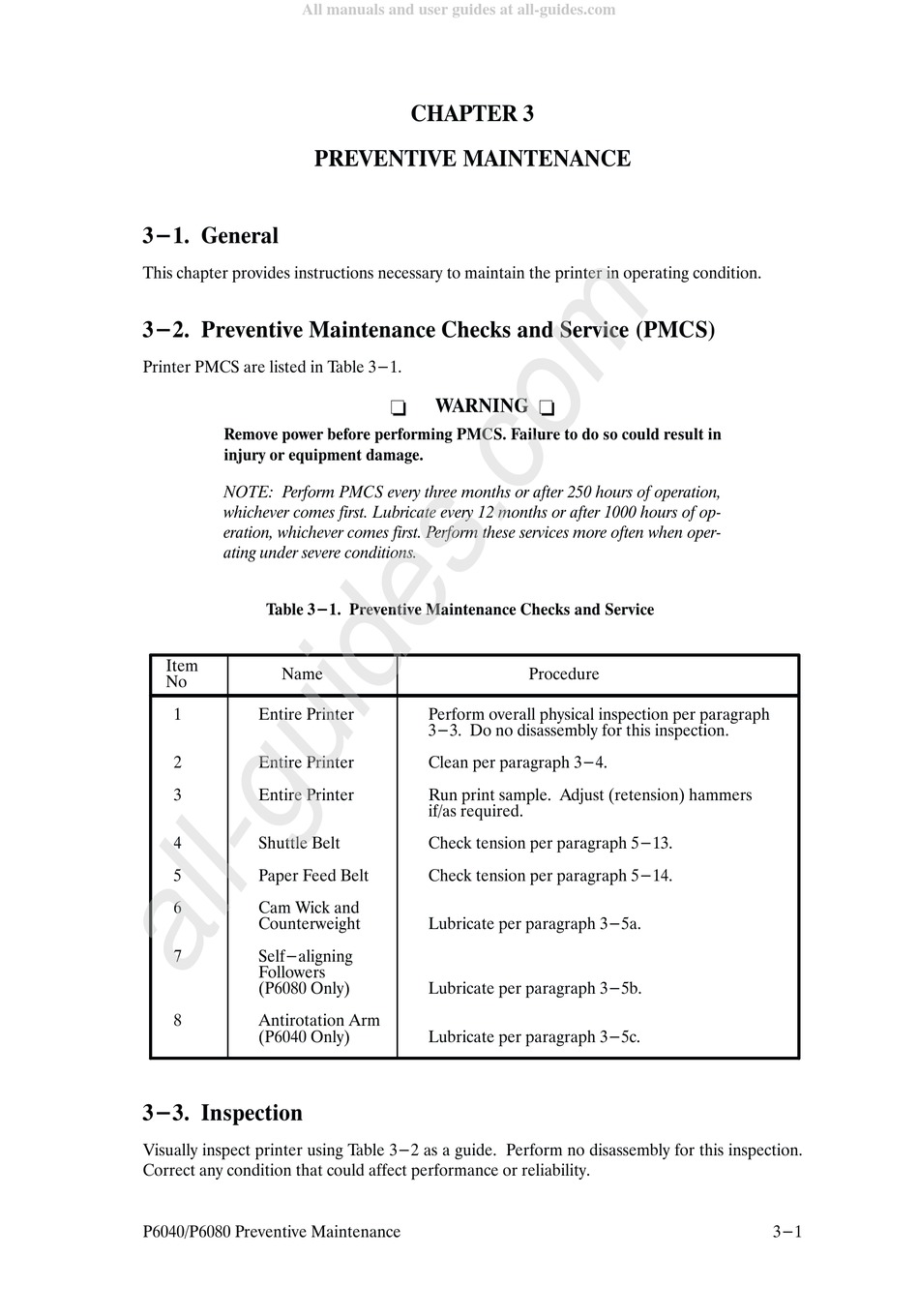

PREVENTIVE MAINTENANCE

3-1. General

This chapter provides instructions necessary to maintain the printer in operating condition.
3-2. Preventive Maintenance Checks and Service (PMCS)
Printer PMCS are listed in Table 3-1.
Remove power before performing PMCS. Failure to do so could result in
injury or equipment damage.
NOTE: Perform PMCS every three months or after 250 hours of operation,
whichever comes first. Lubricate every 12 months or after 1000 hours of op
eration, whichever comes first. Perform these services more often when oper
ating under severe conditions.
Table 3-1. Preventive Maintenance Checks and Service
Item
Name
No
1 Entire Printer
2 Entire Printer
3 Entire Printer
4 Shuttle Belt
5 Paper Feed Belt
6 Cam Wick and
Counterweight
7 Self-aligning
Followers
(P6080 Only)
8 Antirotation Arm
(P6040 Only)

3-3. Inspection

Visually inspect printer using Table 3-2 as a guide. Perform no disassembly for this inspection.
Correct any condition that could affect performance or reliability.
P6040/P6080 Preventive Maintenance
CHAPTER 3
WARNING
- -
Procedure
Perform overall physical inspection per paragraph
3-3. Do no disassembly for this inspection.
Clean per paragraph 3-4.
Run print sample. Adjust (retension) hammers
if/as required.
Check tension per paragraph 5-13.
Check tension per paragraph 5-14.
Lubricate per paragraph 3-5a.
Lubricate per paragraph 3-5b.
Lubricate per paragraph 3-5c.
3-1
