consider the direction of the detector lens, its viewing angles, and the presence
of obstacles to the view of the lens.
The direction of the detector lens should be perpendicular to the intended path
of entry into the room.
Do not install the detector
1. Outdoors — This can lead to false alarms and detector failure.
2. In places where objects and structures can block the view of the detector —
For example, behind a ower or a column.
3. In places where glass structures may block the detector's view; it doesn't
register movement behind glass.
4. Inside premises with temperature and humidity outside the permissible
limits — This could damage the detector.

Installation and connection

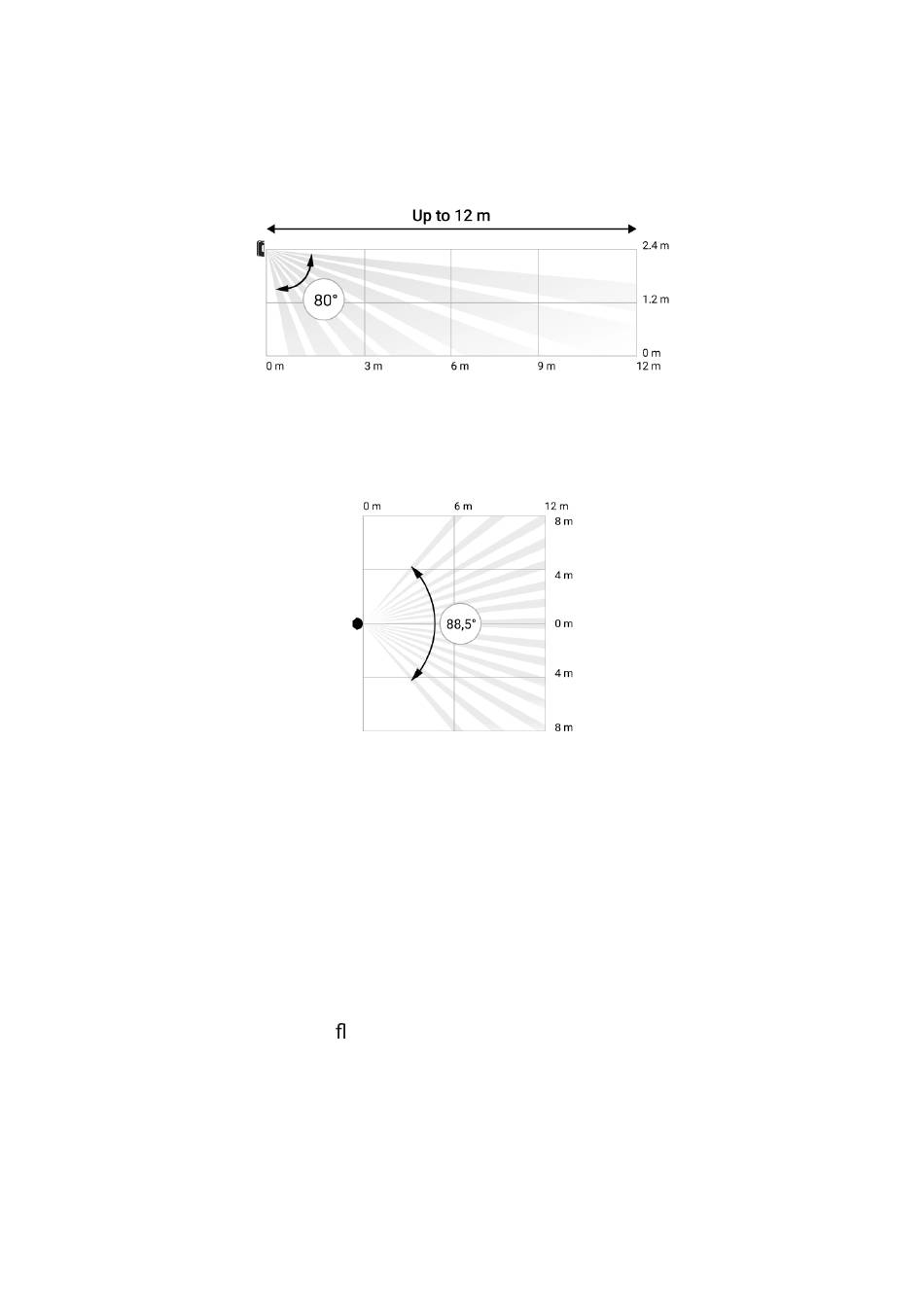

Horizontal detector viewing angle
Vertical detector viewing angle
