MotionProtect Plus Fibra User manual

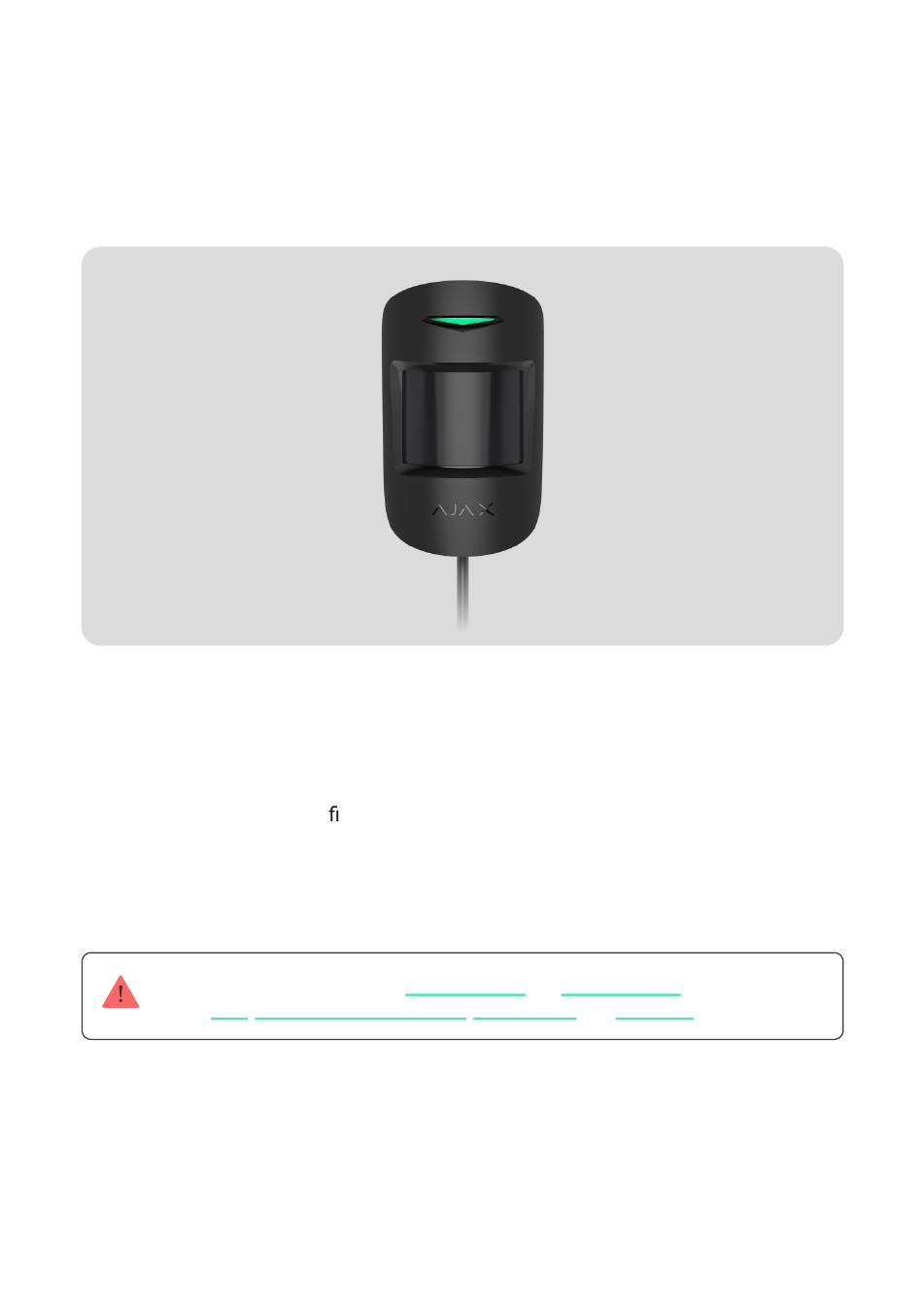

MotionProtect Plus Fibra is a wired motion detector with an additional K-band
microwave sensor. It can recognize movement at a distance of up to 12 meters*
(high sensitivity for EN compliance). Together with the IR sensor, it applies a
radio-frequency scan that lters out thermal interference. Does not respond to
pets up to 50 centimeters tall and weighing up to 20 kilograms. For indoor
installation.
The detector is compatible with
other
hubs radio signal range extenders ocBridge Plus
,
MotionProtect Plus Fibra works as part of the Ajax system, exchanging data
with the hub using the secure Fibra wired protocol. The wired connection range
is up to 2,000 meters when using a U/UTP cat.5 twisted pair.
MotionProtect Plus Fibra is a member of the product line of wired Fibra devices.
The installation, sale, and administration of these devices are performed only by
accredited Ajax partners.
Updated January 8, 2024
Hub Hybrid (2G)
and
,
Hub Hybrid (4G)
. Connection to
, and
uartBridge
is not provided.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect Plus Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect Plus Fibra

Summary of Contents for AJAX MotionProtect Plus Fibra

  • Page 1 Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair. MotionProtect Plus Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by...

  • Page 2: Functional Elements

    * — For INCERT compliance 10 meters (high sensitivity) Buy MotionProtect Plus Fibra Functional elements 1. LED indicator. 2. Motion detector lens. 3. SmartBracket mounting panel. To remove the panel, slide it down. 4. Perforated part of the mounting panel. Triggers a tamper in case of any attempt to detach the detector from the surface.
  • Page 3 , and noti es users and the security company. All MotionProtect Plus Fibra alarms and events are recorded in the noti cation feed of the Ajax app. Users know exactly where motion is detected. The noti cations contain the name of the hub (the name of the protected object), the...

  • Page 4: Pet Immunity

    Fibra supports block encryption with a oating key and veri es each communication session with devices to prevent sabotage and spoo ng. To monitor connection with the system devices and display their statuses in Ajax apps, the protocol involves regular device polling by the hub with a speci ed interval.

  • Page 5: Temperature Compensation

    To offset this factor, we use a temperature compensation. Temperature compensation is used in all Ajax motion detectors, so MotionProtect Plus Fibra detects motion over the entire operating temperature range. More on temperature compensation...

  • Page 6: Selecting The Installation Site

    Ajax app. The device number corresponds to the loop (zone) number. Selecting the installation site MotionProtect Plus Fibra is mounted on a vertical surface or in a corner with the bundled screws. Drill holes in the SmartBracket mount for installation. The detector is intended for indoor installation only.

  • Page 7: Detection Zone

    The Fibra signal strength is determined by the number of undelivered or corrupted data packages over a certain period. The icon in the Devices in Ajax apps indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength.
  • Page 8 When choosing where to place the detector, perform the Detection Zone Test check the operation of the device and accurately determine the sector in which the detector registers motion. The location of the detector determines the area to be monitored and the effectiveness of the security system.
  • Page 9 Tips for designing Fibra wired systems are available in this article Topologies Ajax systems support two topologies: Beam (Radial wiring) and Ring. Connecting devices using a Ring topology will be implemented in the next OS Malevich updates. Hardware update of Hub Hybrid is not required.
  • Page 10 Occupies one bus output of the hub. Occupies two bus outputs of the hub. Up to 8 beams on the same hub. Up to 4 rings on the same hub. Up to 2,000 m of wired communication for the Up to 500 m of wired communication for the same line.

  • Page 11: Additional Information

    If you use a different type of cable, the communication range for wired connection may vary. No other types of cables have been tested. Veri cation using a calculator To make sure that the project is calculated correctly and the system will work in real practice, we have developed a communication range calculator of Fibra lines...

  • Page 12: Cable Routing

    cable will be affected by fewer external factors that affect the natural wear of the conductor and its insulating layer. As a rule, security system cables are routed during the construction or repair stage and after wiring at the object. If impossible to install cables inside the walls, route them so that the cable is su ciently protected and hidden from prying eyes.

  • Page 13: Installation And Connection

    0.75 to 1 mm². Installation and connection Before installing MotionProtect Plus Fibra, make sure that you have selected the optimal location and that it meets the requirements of this manual. To reduce the risk of sabotage, the cables must be hidden from view and located in a place that is di cult for intruders to access.
  • Page 14 1 — external power supply. 2 — backup battery. 2. Plug the detector connection cable into the hub enclosure. Connect the wires to the required hub line. +24V — 24 V⎓ power terminal. А, B — signal terminals. GND — ground. 3.
  • Page 15 9. Place the detector on the SmartBracket mounting panel. 10. Connect the backup battery and external power supply to the hub. Turn on the hub. Add MotionProtect Plus Fibra to the system 12. Perform the Fibra of Signal Strength Test .

  • Page 16: Adding To The System

    2. Add a hub compatible with the detector to the app, make the necessary settings, and create at least one virtual room 3. Make sure that the hub is on and has Internet access via Ethernet and/or mobile network. You can check the connection in the Ajax app or by looking...
  • Page 17 4. Make sure the hub is disarmed and does not start updates by checking its status in the Ajax app. 5. Make sure the detector is physically connected to the hub. How to add MotionProtect Plus Fibra To add a detector manually: 1. Open the Ajax PRO app .
  • Page 18 Method 1: by LED indication. In the list of available devices to add, click on any item. The LED of this detector will start ashing after you press it. This way, you’ll know exactly which detector you’re adding, how to name it, and which room and group it should be connected To add a detector: 1.

  • Page 19: Functionality Testing

    MotionProtect Plus Fibra only works with one hub. When connected to a new hub, the detector stops sending commands to the old one. Once added to a new hub, MotionProtect Plus Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
  • Page 20 The icons display some of MotionProtect Plus Fibra states. You can view them in the Ajax app in the Devices tab. Icon Meaning Fibra Signal Strength — displays the signal strength between the hub and the detector. Recommended value is 2–3 bars.
  • Page 21 States The states include information about the device and its operating parameters. MotionProtect Plus Fibra states can be found in the Ajax app: 1. Go to the Devices tab. 2. Select MotionProtect Plus Fibra from the list. Parameter Value Detector temperature. Measured on the processor and changes gradually.
  • Page 22 The status of the detector tamper that responds to detachment or opening of the device enclosure: Open — the detector is removed from the mount. Check the mounting of the detector. Closed — the detector is installed on the mount. Normal state. Learn more Sensitivity level of the motion detector: Low —...
  • Page 23 Devices Auto Deactivation in the settings). Learn more Alarm Reaction Shows how the detector reacts to alarms: Instant Alarm — the armed detector immediately reacts to a threat and raises the alarm. Entry/Exit — when a delay is set, the armed device starts the countdown and doesn’t Operating Mode raise the alarm even if triggered until the...
  • Page 24 The number of the Fibra line the device is Bus № connected to. Settings To change the detector settings in the Ajax app: 1. Go to the Devices tab. 2. Select MotionProtect Plus Fibra from the list. 3. Go to Settings by clicking on the gear icon 4.
  • Page 25 The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which MotionProtect Plus Fibra is assigned. The room name is displayed in the text of SMS Room and noti cations in the events feed.
  • Page 26 When this option is enabled, connected to the system are activated when motion is Alert with a siren if motion detected detected by the MotionProtect Plus Fibra detector. Alarm Reaction Specify how this device will react to alarms: Instant Alarm — the armed detector immediately reacts to a threat and raises the alarm.
  • Page 27 The test allows the user to check the detector’s response to the motion and determine the Detection Zone Test optimal installation location. Learn more Opens MotionProtect Plus Fibra User Manual in User Guide the Ajax app. Permanent Deactivation Allows the user to disconnect the device without removing it from the system.

  • Page 28: Led Indication

    Malfunctions If a hub identi es a detector malfunction (for example, there is no connection with the hub via Fibra protocol), the Ajax app will display a malfunction counter in the upper left corner of the device icon. All malfunctions can be seen in the detector states. Fields with malfunctions will...

  • Page 29: Maintenance

    Wipe the lens gently as scratches may impair the detector sensitivity. Technical speci cations Learn more Compliance with standards Setup in compliance with EN 50131 requirements Complete set 1. MotionProtect Plus Fibra. 2. SmartBracket mounting panel. 3. Installation kit. 4. Quick start guide. Warranty...
  • Page 30 Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
