MotionProtect Curtain User Manual
Updated August 14, 2020

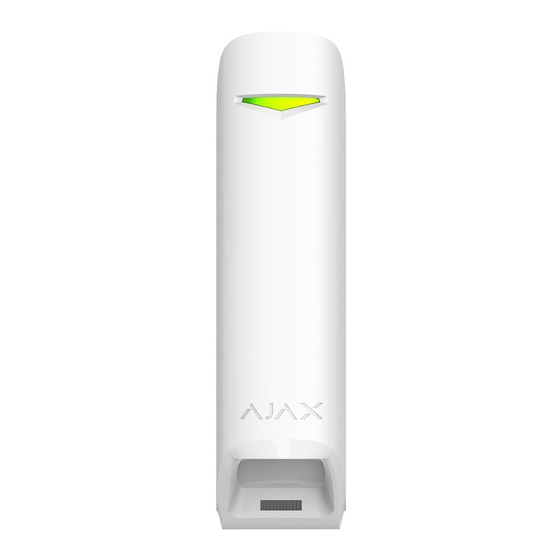

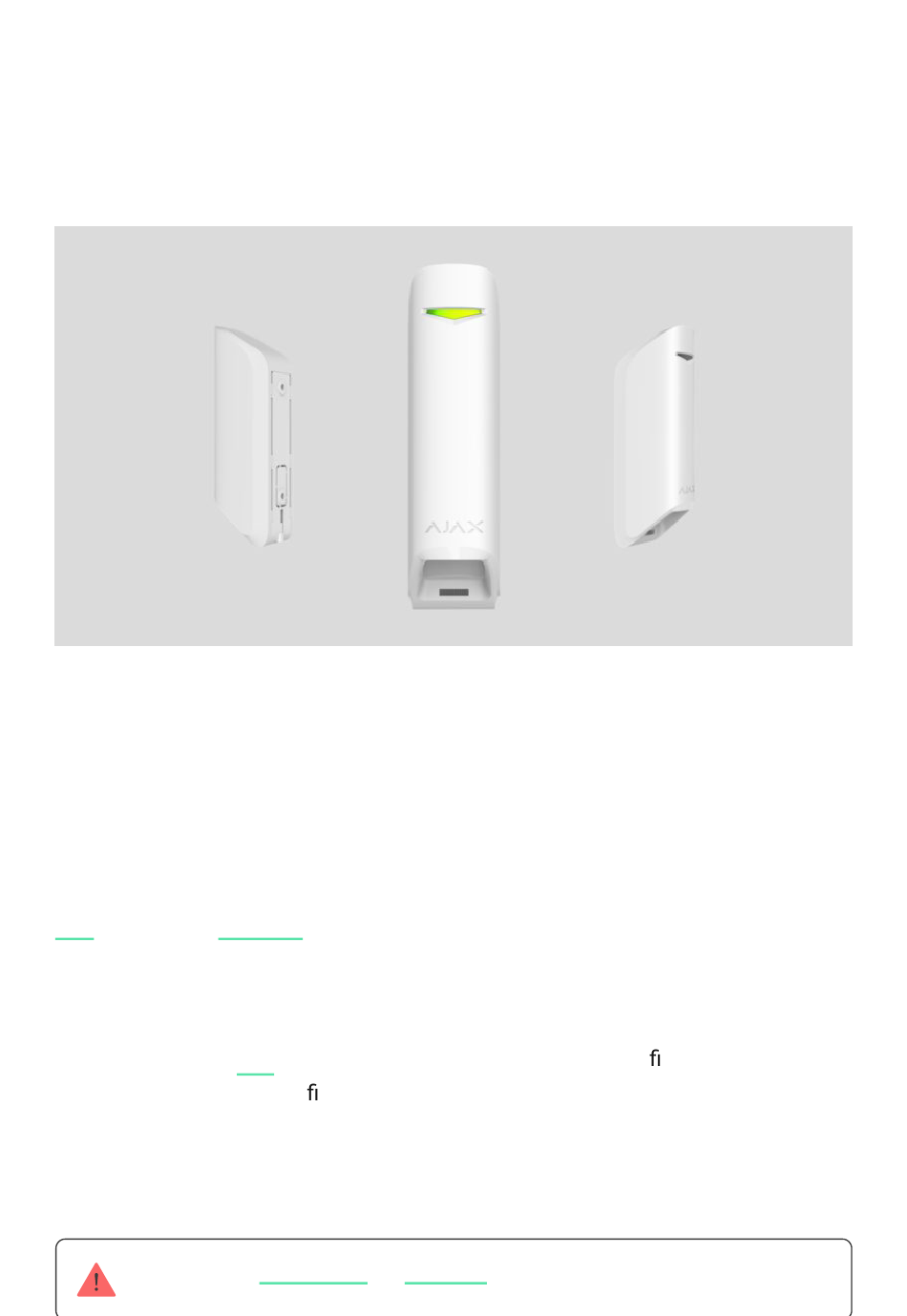

MotionProtect Curtain is a curtain type wireless motion detector. The detector
has a narrow horizontal detection angle and is designed for indoor perimeter
control: windows, doorways, and other entrances or exits of the guarded facility.
Maximum motion detection distance is 15 m.
MotionProtect Curtain integrates into Ajax security systems, connecting to a
hub
through the
Jeweller
secure protocol. Wireless coverage may reach up
1,700 m line-of-sight. The pre-installed battery ensures up to 3 years of
autonomous operation.
An iOS or Android
app
is used for detector setup. It also noti es the user about
any events with push noti cations, SMS, or calls (if enabled).
Ajax can be connected to the central monitoring station of a security company.
Connection to
ocBridge Plus
and
uartBridge
integration modules is not provided.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJAX MotionProtect Curtain
Summary of Contents for AJAX MotionProtect Curtain
- Page 1 It also noti es the user about any events with push noti cations, SMS, or calls (if enabled). Ajax can be connected to the central monitoring station of a security company. Connection to ocBridge Plus uartBridge integration modules is not provided.
-
Page 2: Functional Elements
Operating Principle MotionProtect Curtain’s IR sensors detect intrusion into the premises by detecting moving objects having a temperature close to that of the human body. Once the system is armed, the detector starts polling its two IR sensors. If a... - Page 3 Having caught an alarm state, the Hub triggers sirens and noti es the user and the security company. Motion alarms are sent every 5 seconds To prevent false alarms, MotionProtect Curtain has a Correlation Signal Processing functionality that can be enabled in the detector’s settings .
- Page 4 (at the same facility). The connection request will be sent to the Hub only once the device turns on. If the MotionProtect Curtain fails to connect to the hub, it will automatically power down within 6 seconds after turning on. There is no need to turn off the...
- Page 5 If the MotionProtect Curtain has already been paired with another hub, turn off the detector, and then follow the standard pairing procedure. After pairing, the detector will appear on the app’s hub device list. The frequency of the device status updates depends on the polling interval indicated in the hub’s settings (36 seconds by default).
-
Page 6: Detector Setup
Firmware The detector’s rmware version Device ID Device identi er Detector Setup 1. Devices 2. MotionProtect Curtain 3. Settings Setting Value First eld Detector name (editable) The virtual room to which the device can be Room... - Page 7 Night Mode If active, the detector becomes armed once Arm in Night Mode system enters Night Mode Allows you to disable the ashing of the LED indicator during an alarm. Available for devices with rmware version 6.53.1.1 or higher Alarm LED indication How to nd the rmware version or the ID of the detector or device? HomeSiren...
- Page 8 The MotionProtect Curtain indicator LED may turn red or green, depending on the status of the device. Indication when pressing the power button Event Indication The power button is pressed (detector is on) Lights up red while the button is held...
-
Page 9: Integrity Testing
Integrity Testing Ajax security systems can run tests to verify the integrity of connected devices. The tests start instantly, but no later than within 36 seconds by default. The test start time depends on the detector polling interval setting (see the Jeweller section in the Hub settings). - Page 10 Near metal objects and mirrors that cause the attenuation or interfere with radio signals Within any premises with the temperature and humidity beyond the permitted range Closer than 1 m to a hub If the detector keeps reacting to interference and raising false alarms, but it is impossible to install it anywhere else, the Correlation Signal Processing can be enabled in the settings.
- Page 11 The placement of a MotionProtect Curtain also depends on the distance to a hub and whether there are any obstacles between the devices that may hinder the radio signal, e.g., walls, oor deck, or large objects in the room.
-
Page 12: Detector Installation
Installing the detector at any other height will narrow the detection zone, affecting the quality of motion detection. Keep in mind that MotionProtect Curtain does not detect movement behind the glass. Therefore, do not install the detector in places where glass structures may block its range of view, e.g., in places where an open window may obstruct... - Page 13 directly to a surface to the included bracket. Installation procedure: 1. Attach the SmartBracket panel or a bracket to the surface with the included screws or other equally reliable fasteners. Screw the SmartBracket panel onto the included bracket. 2. Attach the detector to the SmartBracket attachment panel. 3.
-
Page 14: Speci Cations
If the detector’s LED fails to light up after the device is attached to the SmartBracket, check the tamper status in the Ajax app and then check if it ts tightly onto the attachment panel. If you try to detach the detector from the surface or the panel, you will receive a noti cation. -
Page 15: Complete Set
From -10°С to +40°С Protection class IP54 Overall dimensions 134 × 44 × 34 mm Weight 118 g Complete Set 1. MotionProtect Curtain 2. SmartBracket panel 3. Battery CR123A (pre-installed) 4. Installation kit 5. Quick Start Guide 6. Bundled Bracket Warranty... -
Page 16: Need Help
The full text of the warranty User Agreement Technical support: support@ajax.systems Need help? In this section you’ll nd detailed manuals and educational videos about all features of Ajax. And in case you need help of a technical specialist, we’re available 24/7. - Page 17 Send request...
