MotionProtect Jeweller User Manual
Updated July 30, 2022

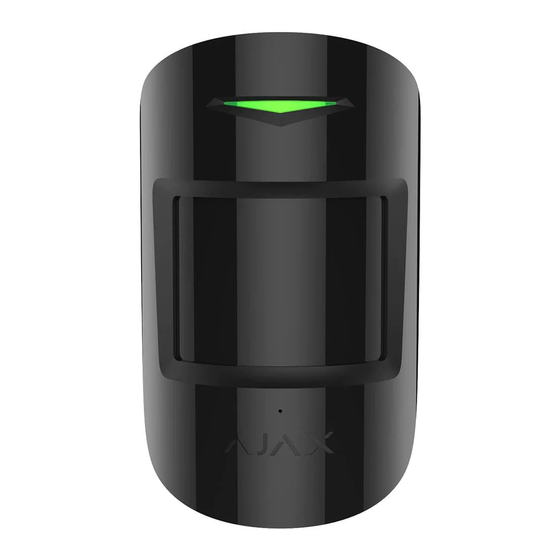

MotionProtect Jeweller is a wireless indoor motion detector. It can operate for
up to 5 years from a built-in battery, and monitors the area within a 12-meter
radius. MotionProtect ignores animals, while recognizing a human from the rst
step.
MotionProtect operates within the Ajax security system, connected to the
hub
via the protected
Jeweller
protocol. The communication range is up to 1700
meters in the line of sight. In addition, the detector can be used as a part of
third-party security central units via the
uartBridge
or
ocBridge Plus
integration
modules.
The detector is set up via the
Ajax app
for iOS, Android, macOS and Windows.
The system noti es users of all events through push noti cations, SMS and
calls (if activated).
Buy MotionProtect Jeweller
Functional Elements
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJAX MotionProtect Jeweller
Summary of Contents for AJAX MotionProtect Jeweller
- Page 1 MotionProtect Jeweller User Manual Updated July 30, 2022 MotionProtect Jeweller is a wireless indoor motion detector. It can operate for up to 5 years from a built-in battery, and monitors the area within a 12-meter radius. MotionProtect ignores animals, while recognizing a human from the rst step.
-
Page 2: Operating Principle
. Triggers when an attempt is made to detach the detector from the surface or remove it from the mounting panel. 6. Device switch. 7. Detector QR code. Is used to connect the device to the Ajax security system. Operating Principle 00:00... -
Page 3: Pet Immunity
MotionProtect Jeweller is a wireless motion detector. The detector can identify intrusions by detecting moving objects with temperatures close to the human body using IR sensors. When an armed detector identi es motion, it instantly sends an alarm to the hub, activating the sirens connected to the system, triggering scenarios, and notifying users and the security company. -
Page 4: Temperature Compensation
The detector must be installed at 2.4 meters without obstruction to its view. For example, in a corner where the view will not be blocked by a closet or other furniture on which a pet can climb. It is also important to set the proper sensitivity in the detector settings High —... - Page 5 When the ambient temperature is about the temperature of the human body, the correct operation of the detector is not guaranteed unless temperature compensation is applied. It is used in all Ajax motion detectors. MotionProtect recognizes motion across the entire operating temperature range with temperature compensation.
- Page 6 Ajax app. Connecting to the hub 1. Open the Ajax app. If you have access to multiple hubs or using the PRO app, select the hub where you want to add the detector. 2. Go to the Devices tab and click Add Device.
- Page 7 The detector connected to the hub will appear in the list of hub devices in the Ajax app. Updating the statuses of devices in the list depends on the Jeweller or Jeweller/Fibra settings; the default value is 36 seconds.
- Page 8 Malfunctions When a malfunction is detected (for example, there is no connection via Jeweller), the Ajax app displays a malfunction counter on the device icon. All malfunctions are shown in the detector states. Fields with malfunctions will be highlighted in red.
- Page 9 MotionProtect has tamper triggering events temporarily deactivated. Learn more States The states include information about the device and its operating parameters. The states of MotionProtect can be found in the Ajax app: 1. Go to the Devices tab. 2. Select MotionProtect from the list.
- Page 10 Jeweller is a protocol for transmitting MotionProtect events and alarms. Battery level of the device. Displayed as a percentage. When the batteries are low, the Ajax apps and the security company will receive appropriate noti cations. Battery Charge After sending a low battery noti cation, the detector can work for up to 2 months.
- Page 11 Delay when entering (alarm activation delay) is the time the user has to disarm the security system after entering the secured area. Learn more Delay time when leaving: from 5 to 120 seconds. Delay when leaving (arming delay) is the time the user has to leave the secured area after the Delay When Leaving, sec security system arming.
- Page 12 Learn more Firmware Detector rmware version. Detector ID. Also available on the QR code on Device ID the detector enclosure and its package box. Device № Number of the device loop (zone). Settings To change MotionProtect settings in the Ajax app:...
- Page 13 1. Go to the Devices tab. 2. Select MotionProtect from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required parameters. 5. Click Back to save the new settings. Setting Value Detector name. It is displayed in the list of hub devices, SMS text, and noti cations in the event feed.
- Page 14 Night mode. Learn more Delay time when entering in the Night mode: from 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security Night Mode Delay When Entering, sec system after entering the premises. Learn more Delay time when leaving in the Night Mode: from 5 to 120 seconds.
- Page 15 Why motion detectors react to animals and how to avoid this When this option is enabled, the detector is always in the armed mode and detects motion. Always Active Learn more sirens If active, added to the system are Alert with a siren if motion detected activated when the motion is detected.
- Page 16 Learn more about auto deactivation of devices Opens the MotionProtect user manual in the User Guide Ajax app. Unpairs the detector, disconnects it from the Unpair Device hub, and deletes its settings. Detector operation indication 00:00...
-
Page 17: Functionality Testing
Functionality testing The Ajax security system provides several types of tests to ensure that the installation place is chosen correctly. MotionProtect tests do not start immediately but not later than over a single hub–detector polling interval (36 seconds by default). -
Page 18: Signal Strength
The device is designed for indoor use only. When choosing where to install MotionProtect, consider the parameters that affect its operation: Motion detection zone. Jeweller signal strength. Distance between the detector and the hub or radio signal range extender. Presence of obstacles for radio signal passage: walls, inter- oor ceilings, large objects located in the room. -
Page 19: Detection Zone
extender in a certain period of time.The icon on the Devices tab and the corresponding eld in the device States indicate the signal strength: Three bars — excellent signal strength. Two bars — good signal strength. One bar — low signal strength, stable operation is not guaranteed. Crossed out icon —... - Page 20 Where not to install the detector Outdoors. This can lead to false alarms and detector failure. We recommend using Ajax outdoor detectors for such cases. In the direction where direct sunlight hits the detector lens. This can lead to false alarms. We recommend using...
-
Page 21: Detector Installation
Inside premises with temperature and humidity outside the permissible limits. This could damage the detector. We recommend using Ajax outdoor detectors for such cases. At a distance of less than 1 meter from the hub or radio signal range extender. This can lead to a loss of communication with the detector. - Page 22 Double-sided tape can only be used for temporary installation. The device attached by the tape may come unstuck from the surface. As long as the device is taped, the tamper will not be triggered when the device is detached from the surface. 3.
-
Page 23: Detector Maintenance
The LED will smoothly light up and go out if the detector detects any motion or the tamper is actuated. How long MotionProtect Jeweller will operate on pre-installer battery How to replace batteries in MotionProtect Jeweller... -
Page 24: Technical Speci Cations
905.0 – 926.5 MHz 915.85 – 926.5 MHz Radio frequency band 921.0 – 922.0 MHz Depends on the region of sale. hubs radio signal Operates with all Ajax range extenders ocBridge Plus Compatibility uartBridge Maximum RF output power Up to 20 mW... -
Page 25: Complete Set
4. Installation kit. 5. Quick Start Guide. Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —... - Page 26 e-mail Telegram Subscribe to the newsletter about safe life. No spam Phone: 0 (800) 331 911 Email Subscribe...
