Functional Elements; Operating Principle - AJAX MotionProtect Plus Fibra User Manual

MotionProtect Plus Fibra is the device of the new Fibra wired product line. Such
devices can only be purchased, installed and administered by accredited Ajax
partners.
Buy MotionProtect Plus Fibra

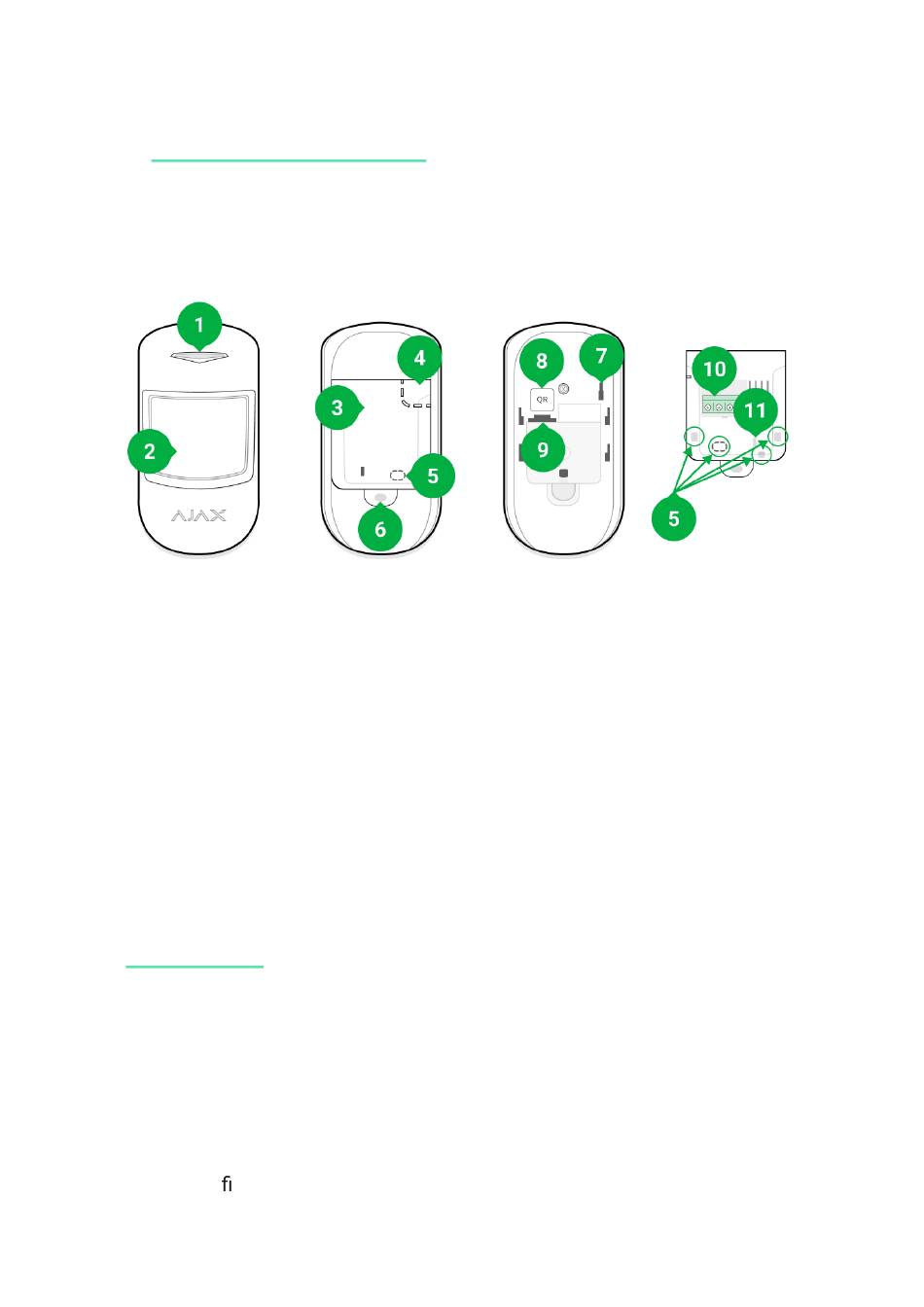

Functional elements

1. LED indicator.
2. Motion detector lens.
3. SmartBracket mounting plate (to remove the plate, slide it down).
4. Perforated part of the mounting plate. Intended to trigger a tamper in case
of any attempt to detach the detector from the surface. Do not break it off.
5. Perforated part for wire output.
6. The hole for attaching the SmartBracket mounting panel with a screw.
7. Tamper button . Triggers when an attempt is made to detach the detector
from the surface or remove the mounting panel.
8. QR code. Used to connect the detector to the Ajax security system.
9. Terminal block connection socket.
10. Terminal block for detector connection.
11. A hole for xing the wires with ties.
