MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support
MotionProtect / MotionProtect Plus

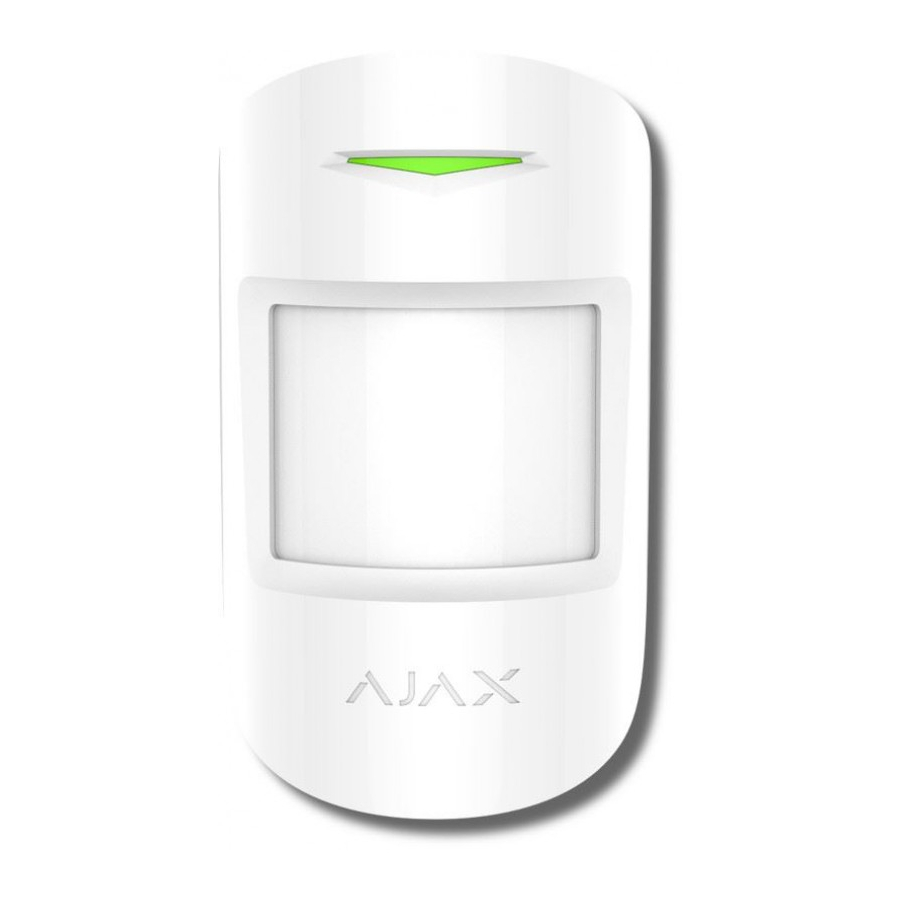

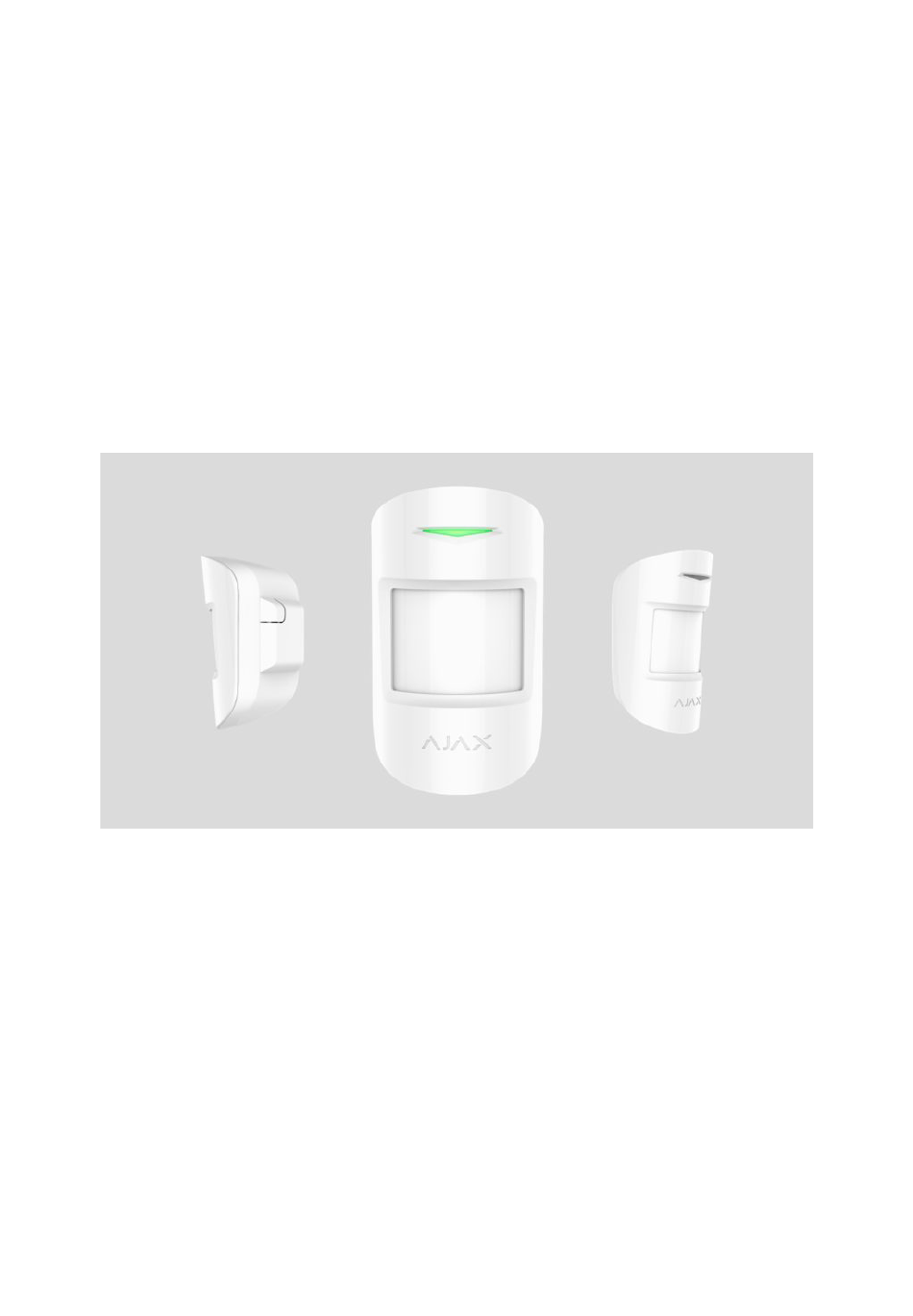

MotionProtect is a wireless motion detector designed for indoor
use. It can operate for up to 5 years from an in-built battery, and
monitors the area within 12-meter radius. MotionProtect ignores
animals, while recognizes a human from the Crst step.
MotionProtect Plus uses radio frequency scanning along with a
thermal sensor, Cltering interference from thermal radiation. Can
operate up to 5 years from an in-built battery.
https://support.ajax.systems/en/manuals/motionprotect/?_ga=2.95014106.754703337.1648293156-504169808.1647685641
User Manual
Updated January 25, 2022
26.03.2022 12.55
Side 1 af 22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect

Summary of Contents for AJAX MotionProtect

  • Page 1 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 MotionProtect / MotionProtect Plus User Manual Updated January 25, 2022 MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius.

  • Page 2: Functional Elements

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Buy motion detector with microwave sensor MotionProtect Plus MotionProtect (MotionProtect Plus) operates within the Ajax security system, connected to the via the protected Jeweller protocol. The communication range is up to 1700...

  • Page 3: Operating Principle

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 1. LED indicator 2. Motion detector lens 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the detector) 4.
  • Page 4 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 When the MotionProtect Plus detects motion, it will additionally carry out radio frequency scanning of the room, preventing false actuation from thermal interferences: air Zows from sun-heated curtains and louvre shutters, operating thermal air fans, Creplaces, air conditioning units, etc.
  • Page 5 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Only users with administrator rights can add the device to the hub How to connect the detector to the hub: 1. Select the Add Device option in the Ajax application.
  • Page 6 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 For detection and pairing to occur, the detector should be located within the coverage of the wireless network of the hub (at a single protected object). Request for connection to the hub is transmitted for a short time at the moment of switching on the device.
  • Page 7 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 To connect the detector to a third party security central unit with the uartBridge ocBridge Plus integration module, follow the recommendations in the manuals of these devices. States 1.
  • Page 8 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 radio Displays the status of using a signal range extender Sensitivity Sensitivity level of the motion sensor If active, the motion detector is always Always Active in the armed mode...
  • Page 9 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 1. Devices 2. MotionProtect | MotionProtect Plus 3. Settings Setting Value First Celd Detector name, can be edited Selecting the virtual room to which the Room device is assigned...
  • Page 10 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 potential obstacles (windows, air conditioner, heating element, etc) Low — ignore pets weighing up to 20 kg and up to 50 cm tall Sensitivity For MotionProtect Plus: High — the detector disregards cats (under 25 cm) Medium —...
  • Page 11 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Entirely — the device will not execute system commands or participate in automation scenarios, and the system will ignore device alarms and other notiCcations Lid only — the system will ignore...

  • Page 12: Detector Testing

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Detector operation indication Event Indication Note Lights up green for about Turning on the detector one second Detector connection to Lights up continuously hub ocBridge for a few seconds...

  • Page 13: Device Installation

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Attenuation test Device installation Selection of the Detector Location The controlled area and the efciency of the security system depends on the location of the detector. The device developed only for indoor use.
  • Page 14 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Check the signal level at the installation location If the signal level is at one bar, we cannot guarantee stable operation of the security system. Take all possible measures to improve the quality of the signal! As a minimum, move the device —...
  • Page 15 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Installation of the Detector Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual https://support.ajax.systems/en/manuals/motionprotect/?_ga=2.95014106.754703337.1648293156-504169808.1647685641...
  • Page 16 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 The Ajax MotionProtect detector (MotionProtect Plus) should be attached to a vertical surface or in the corner. 1. Attach the SmartBracket panel to the surface using bundled screws, using at least two Cxing points (one of them — above the tamper).

  • Page 17: Detector Maintenance

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 If the detector is torn off from the surface or removed from the attachment panel, you will receive the notiCcation. Do not install the detector: 1. outside the premises (outdoors) 2.

  • Page 18: Tech Specs

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 contaminants as they appear. Use soft dry napkin suitable for equipment maintenance. Do not use any substances containing alcohol, acetone, gasoline and other active solvents for cleaning the detector. Wipe the lens very carefully and gently —...
  • Page 19 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Pet immunity Why motion detectors react to animals and how to avoid it > Tamper protection Jeweller Radio communication protocol Learn more 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 –...

  • Page 20: Complete Set

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Installation method Indoors Operating temperature range From -10°С to +40°С Operating humidity Up to 75% Overall dimensions 110 × 65 × 50 mm Weight 86 g (Motion Protect Plus – 96...

  • Page 21: Warranty

    MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should Crst contact the support service —...
  • Page 22 MotionProtect / MotionProtect Plus User Manual | Ajax Systems Support 26.03.2022 12.55 Email Subscribe https://support.ajax.systems/en/manuals/motionprotect/?_ga=2.95014106.754703337.1648293156-504169808.1647685641 Side 22 af 22...
