MotionProtect Plus Fibra User Manual

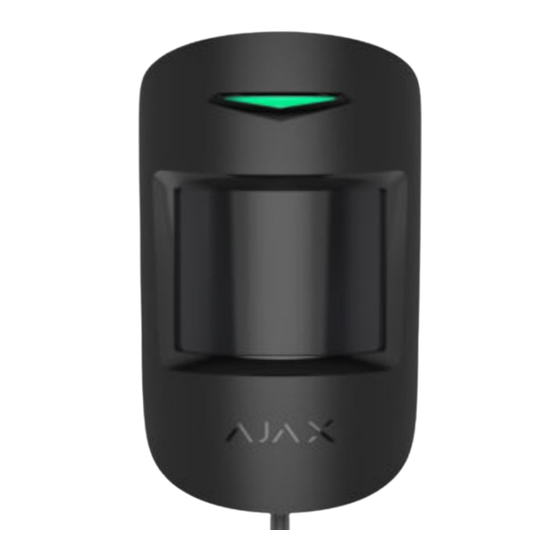

MotionProtect Plus Fibra — a wired motion detector with an additional
microwave sensor. It can recognize movement at a distance of up to 12 meters.
Together with the IR sensor, it applies a radio-frequency scan that lters out
thermal interference.
It does not react to animals up to 50 centimeters tall and weighing up to 20
kilograms when properly installed and con gured. It is intended for indoor
installation.
The detector is compatible with
other
hubs radio signal range extenders ocBridge Plus
supported. Integration with other security systems is not provided
MotionProtect Plus Fibra only works as a part of the Ajax security system,
communicating with the hub via the secure Fibra protocol. The wired connection
range is up to 2000 meters when connected via the twisted pair U/UTP cat.5.
Updated June 21, 2022
Hub Hybrid (2G)
,
and
Hub Hybrid (4G)
,
, and
uartBridge
. Connection to
is not
Advertisement
Table of Contents
Related Manuals for AJAX MotionProtect Plus Fibra
Summary of Contents for AJAX MotionProtect Plus Fibra
- Page 1 Integration with other security systems is not provided MotionProtect Plus Fibra only works as a part of the Ajax security system, communicating with the hub via the secure Fibra protocol. The wired connection range is up to 2000 meters when connected via the twisted pair U/UTP cat.5.
-
Page 2: Functional Elements
MotionProtect Plus Fibra is the device of the new Fibra wired product line. Such devices can only be purchased, installed and administered by accredited Ajax partners. Buy MotionProtect Plus Fibra Functional elements 1. LED indicator. 2. Motion detector lens. 3. SmartBracket mounting plate (to remove the plate, slide it down). - Page 3 , and noti es users and the security company. All MotionProtect Plus Fibra alerts and events are recorded in the noti cation feed of the Ajax app. Users know exactly where motion is detected. The noti cations contain the...
-
Page 4: Pet Immunity
More about Fibra protocol (in progress) Pet immunity When properly installed and con gured, MotionProtect Plus Fibra does not react to animals up to 50 centimeters tall and weighing up to 20 kilograms. The detector must be installed at a height of 2.4 meters without any obstruction to its view —... -
Page 5: Temperature Compensation
When the ambient temperature is about the temperature of the human body, the correct operation of the detector is not guaranteed unless temperature compensation is applied. It is used in all Ajax motion detectors. With temperature compensation, the detector recognizes motion across the entire operating temperature range. -
Page 6: Detector Placement
Addressability of each Ajax device allows you to send not only events to the PRO Desktop or to the CMS but also the type of the device, the name of the device, and the virtual room to which the detector is assigned. - Page 7 settings. How to calculate the number of connectable detectors (in progress) For facilities that are under construction or renovation, cables are laid after the main wiring of the facility. Use special protective tubes to route system cables to organize and secure them; special ties, clips, and staples can be used to secure the cables. ...
-
Page 8: Detection Zone
Two bars — good signal strength. One bar — low signal strength, stable operation is not guaranteed. Crossed out icon — no signal. The signal strength is in uenced by the following factors: the number of devices connected to one bus, the length and type of cable, and the proper connection of the wires to terminals. -
Page 9: Installation And Connection
consider the direction of the detector lens, its viewing angles, and the presence of obstacles to the view of the lens. The direction of the detector lens should be perpendicular to the intended path of entry into the room. Horizontal detector viewing angle Vertical detector viewing angle Do not install the detector 1. - Page 10 Before installing MotionProtect Plus Fibra, make sure that you have selected the optimal location and that it meets the conditions of this manual. Cables must be hidden from view and located in a place that is di cult for intruders to access to reduce the likelihood of sabotage.
- Page 11 +24V — power supply input А, B — signal terminals GND — ground 3. Remove the SmartBracket mounting panel from the detector and carefully break out the perforated part to lead the cable out from the back. If you need to lead the cable out from below or from the side, use a drill to make a hole in the places indicated in the diagram.
- Page 12 9. Turn on the hub and supply the connected detector with power. When power is applied, an LED will notify that the detector is turned on. Add a MotionProtect Plus Fibra to the system 11. Conduct the signal strength test .
- Page 13 Adding to the system The detector is only compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Adding and con guring Fibra devices is only possible through the Ajax PRO app by a user with administrator rights. Types of accounts and their rights Before adding a device 1.
- Page 14 1. Open the PRO version of the app . Select the hub you want to add MotionProtect Plus Fibra to. 2. Go to the Devices tab and click Add device. 3. Name the detector, scan or type in the QR code (placed on the detector...
- Page 15 1. Click on the device in the list. 2. Create a name. 3. Specify the room and the security group (if enabled). 4. Click Save. If the detector is connected to the hub successfully, it will disappear from the list of available detectors.
- Page 16 MotionProtect Plus Fibra only works with one hub. When connected to a new hub, the detector stops exchanging commands with the old one. Once added to a new hub, MotionProtect Plus Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
- Page 17 Learn more MotionProtect Plus Fibra has detected motion. The detector identi es motion only in the armed mode. MotionProtect Plus Fibra is temporarily deactivated by a user or PRO with administrator rights. Learn more MotionProtect Plus Fibra has been disabled due to exceeding the number of alarms.
- Page 18 The value is updated as soon as the detector identi es a temperature change of at least 1°C. Signal strength between the hub and MotionProtect Plus Fibra. Recommended values — 2—3 bars. Fibra signal strength Fibra — protocol for transmitting MotionProtect...
- Page 19 Delay When Leaving, sec Delay time when leaving (5 to 120 seconds). Delay when leaving (arming delay) is the time the user has to leave the secured area after arming. Learn more Delay time when entering in the Night mode. Delay when entering (alarm activation delay) is the time the user has to disarm the security Delay when entering for the Night mode, sec...
- Page 20 The number of the hub bus the detector is Bus № physically connected to. Settings To change the detector settings in the Ajax app: 1. Go to the Devices tab 2. Choose MotionProtect Plus Fibra from the list. 3. Go to Settings by clicking on the gear icon.
- Page 21 The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which MotionProtect Plus Fibra is assigned. Room The room name is displayed in the text of SMS and noti cations in the event feed.
- Page 22 Alarm LED indication When off, the detector’s LED will not alert you about an alarm and a tamper triggering. Sensitivity level of the motion detector. The choice depends on the type of the object, the presence of probable sources of false alarms, and the type of the protected area: Low —...
-
Page 23: Functionality Testing
A voltage of 7 V and below is out after an alarm or a tamper Low bus voltage. considered low. triggering. Functionality testing The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. MotionProtect... -
Page 24: Maintenance
(36 seconds with a default hub settings of the hub). You can change the ping period of devices in the Fibra menu of the hub settings. There are 2 tests available for MotionProtect Plus Fibra: Fibra signal strength test (in progress) -
Page 25: Complete Set
Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely. - Page 26 Subscribe to the newsletter about safe life. No spam Email Subscribe...
