Motion Protect User Manual

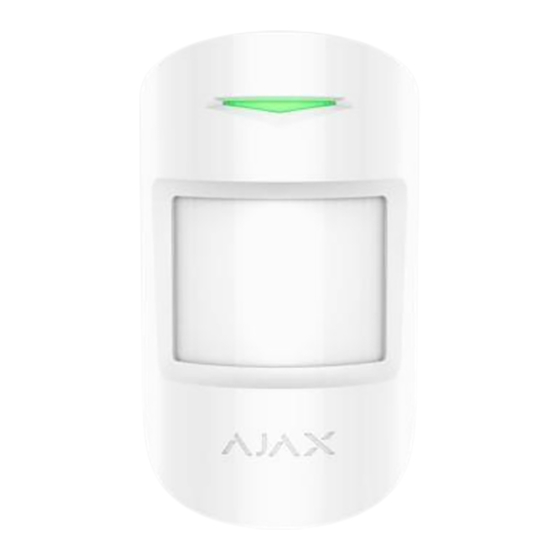

Motion Protect is a wireless motion detector designed for indoor use. It
can operate for up to 5 years from an in-built battery, and monitors the area
within 12-meter radius. Motion Protect ignores animals, while recognizes a
human from the first step.
Motion Protect operates within the Ajax security system, connected to
the
via the protected
protocol. The communication range is up
hub
Jeweller
to 1700 meters in the line of sight. In addition, the detector can be used as
a part of third-party security central units via the
or
Ajax uartBridge
Ajax
integration modules.
ocBridge Plus
The detector is set up via the
for iOS, Android, mac OS and
Ajax app
Windows. The system notifies user of all events through push notifications,
SMS and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to
the central monitoring station of a security company.

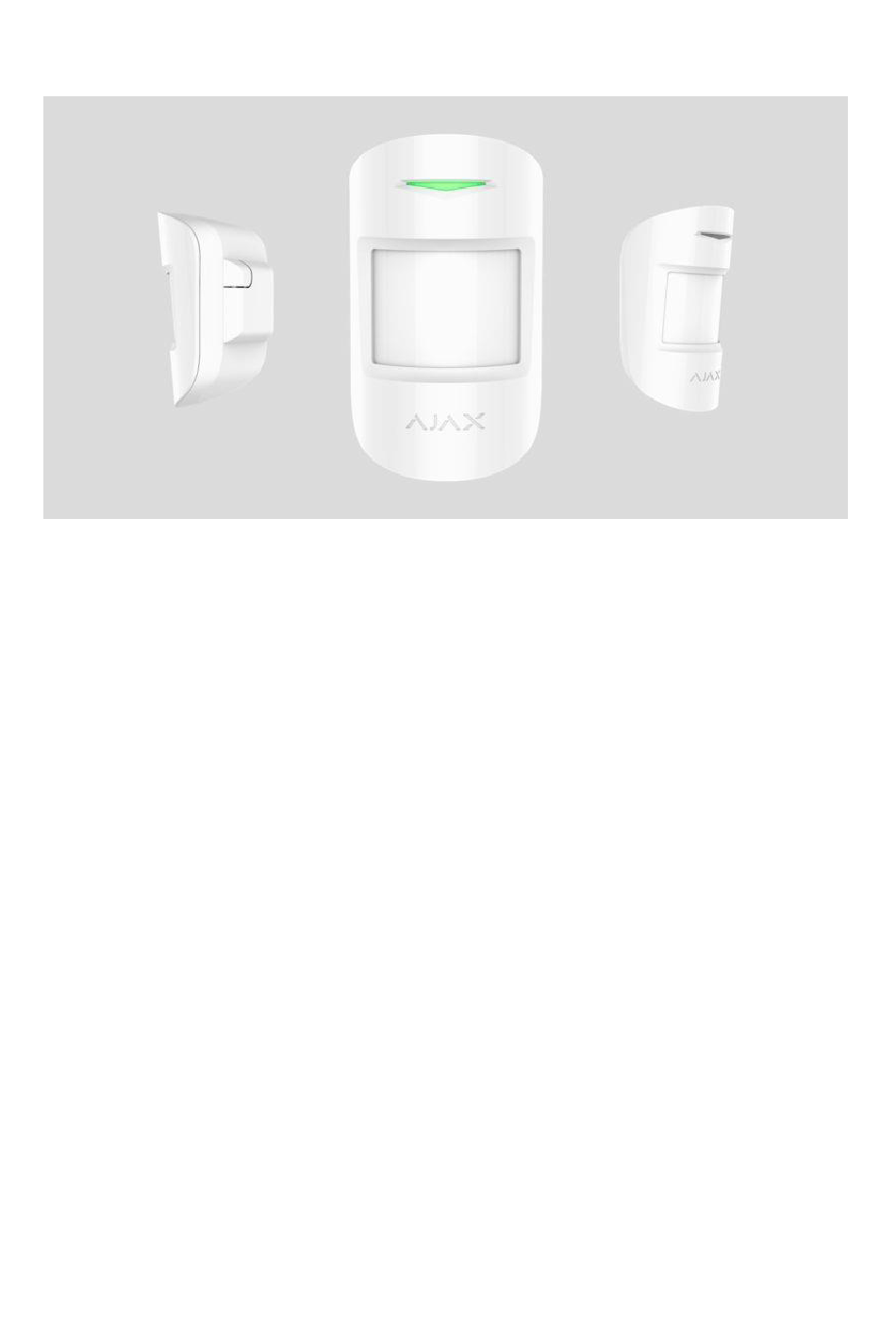

Functional Elements

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motion Protect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Motion Protect

Summary of Contents for AJAX Motion Protect

  • Page 1 Motion Protect User Manual Motion Protect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius. Motion Protect ignores animals, while recognizes a human from the first step.

  • Page 2: Operating Principle

    5. Device switch 6. QR code Operating Principle Thermal PIR sensor of Motion Protect detects intrusion into protected room by detecting moving objects whose temperature is close to the temperature of the human body. However, the detector can ignore domestic animals if the suitable sensitivity has been chosen in the settings.
  • Page 3 Only users with administrator rights can add the device to the hub How to connect the detector to the hub: 1. Select the Add Device option in the Ajax application. 2. Name the device, scan/write manually the QR Code (located on the body...
  • Page 4 Connecting the Detector to Third Party security systems To connect the detector to a third party security central unit with integration module, follow the uartBridge ocBridge Plus recommendations in the manuals of these devices. States 1. Devices 2. Motion Protect...
  • Page 5 Parameter Value Temperature of the Detector. Measured on the processor and Temperature changes gradually Jeweller Signal Strength Signal strength between the hub and the detector Connection Connection status between the hub and the detector Battery Charge Battery level of the detector, displayed in increments of 25% The tamper mode of the detector, which reacts to the detachment of or damage of the body Delay when entering, sec...
  • Page 6 Sensitivity Sensitivity level of the motion sensor Always Active If active, the motion detector is always in the armed mode Firmware Detector firmware version Device ID Device identifier Settings 1. Devices 2. Motion Protect 3. Settings...
  • Page 7 If active, the detector will switch to armed mode when using Arm in night mode night mode Choosing the sensitivity level of the motion sensor. For Motion Protect: • High — for premises with a minimum amount of obstacles, motion is detected as quickly as possible Sensitivity •...

  • Page 8: Detector Testing

    Replacement manual Detector Testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start immediately but within a period of 36 seconds when using the standard settings. The time of the start depends on the settings of the detector polling period (the paragraph on Jeweller settings in the hub settings).

  • Page 9: Device Installation

    The controlled area and the efficiency of the security system depends on the location of the detector. Location of Motion Protect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.
  • Page 10 Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the field of view of the detector. We recommend installing the detector at the height of 2.4 meters. If the detector is not installed at the recommended height, this will reduce the area of the motion detection zone and impair the operation of the function of ignoring animals.
  • Page 11 The Ajax Motion Protect detector should be attached to a vertical surface or in the corner. 1. Attach the Smart Bracket panel to the surface using bundled screws, using at least two fixing points (one of them – above the tamper). After selecting other attachment screws, make sure that they do not damage or deform the panel.

  • Page 12: Detector Maintenance

    6. Closer than 1 m from the hub. Detector Maintenance Check the operational capability of the Ajax Motion Protect detector on a regular basis. Clean the detector body from dust, spider webs and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.

  • Page 13: Tech Specs

    Tech specs PIR sensor Sensitive element Motion detection distance Up to 12 m Motion detector viewing 88,5° / 80° angles (H/V) Yes, height up to 50 cm, weight up to 20 kg Pet immunity Tamper protection 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, Frequency band depending on the sales region Operates with Hub , Hub Plus , Hub 2 , ReX , ocBridge...

  • Page 14: Complete Set

    4. Installation kit 5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support...
