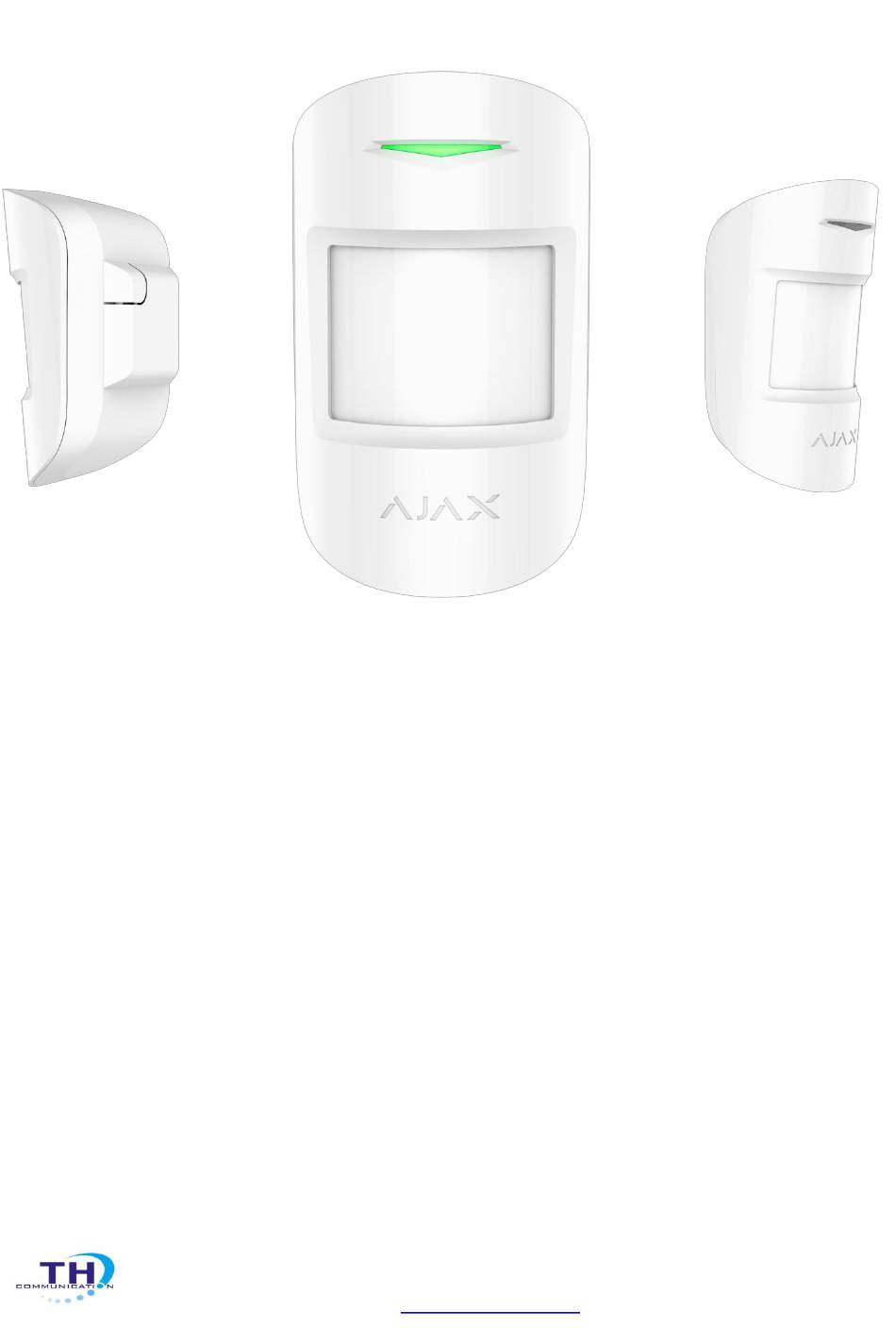

MotionProtect / MotionProtect Plus User Manual

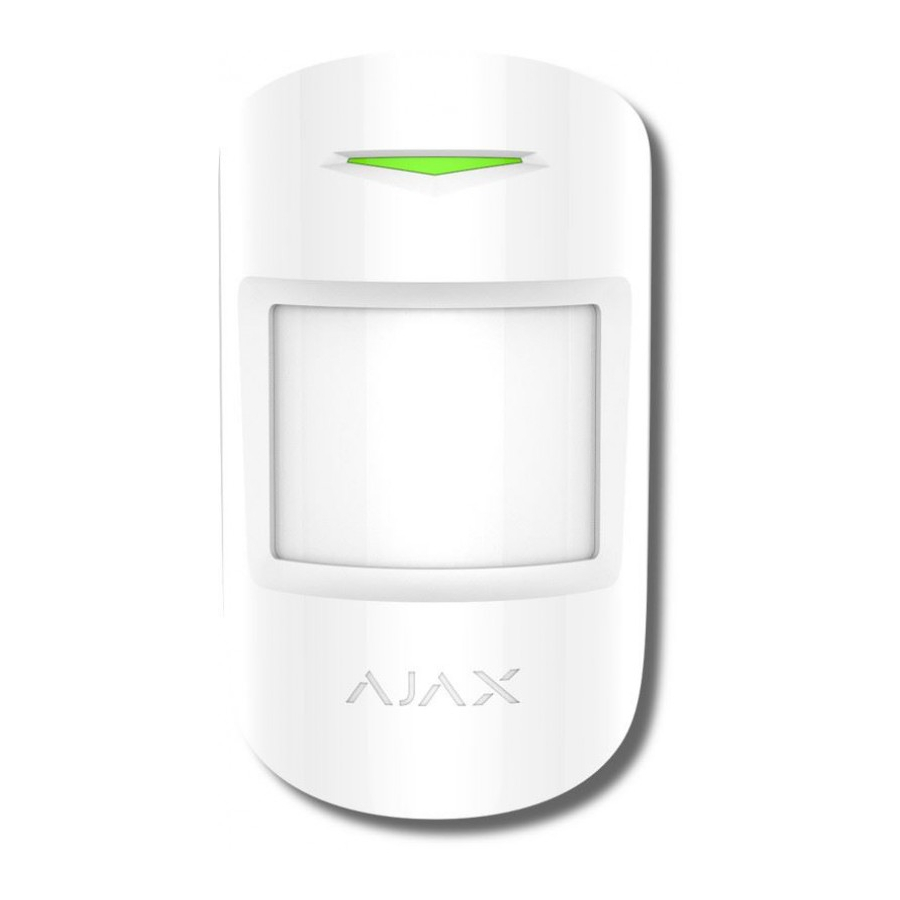

MotionProtect is a wireless motion detector designed for use inside premises. It can operate
up to 7 years from a pre-installed battery, and tracks the area with the radius of 12 meters, is
able to ignore animals, however, can recognize a man from the first step.
MotionProtect Plus together with a thermal detector uses radio frequency scanning, filtering
interferences from thermal radiation. Can operate up to 5 years from a pre-installed battery.
��
Buy motion detector with microwave sensor MotionProtect Plus
MotionProtect
(MotionProtect
via the protected Jeweller protocol to the Hub. The communication range is up to 1700
(MotionProtect Plus up to 1200)
be used as part of third-party security central units due to the Ajax uartBridge or Ajax ocBridge
Plus integration module.
The detector is set up via a mobile application for iOS and Android-based smartphones. The
user is notified of all events through push notifications, SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a private security company.
��
Buy motion detector MotionProtect
Functional Elements
TH COMMUNICATION SDN BHD
Plus) operates within the Ajax security system, by connecting
meters if there are no obstacles. In addition, the detector can
www.thcomm.com.my
info@thcomm.com.my

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect

Summary of Contents for AJAX MotionProtect

  • Page 1 (MotionProtect Plus up to 1200) meters if there are no obstacles. In addition, the detector can be used as part of third-party security central units due to the Ajax uartBridge or Ajax ocBridge Plus integration module. The detector is set up via a mobile application for iOS and Android-based smartphones. The user is notified of all events through push notifications, SMS messages and calls (if activated).
  • Page 2 6. QR code MotionProtect Operating Principle Thermal PIR sensor of MotionProtect detects intrusion into a protected room by detecting moving objects whose temperature is close to the temperature of the human body. At that, the detector can ignore domestic animals - you only need to set up the suitable sensitivity in the settings.
  • Page 3 1. Following the Hub instruction recommendations, install the Ajax application on your smartphone. Create an account, add the Hub to the application, and create at least one room. 2. Go to the Ajax application. 3. Switch on the Hub and check the internet connection (via Ethernet cable and/or GSM network).
  • Page 4 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax Hub failed, switch off the detector for 5 seconds and repeat the attempt. The detector connected to the hub will appear in the list of devices of the hub in the application.
  • Page 5 Parameter Value Temperature of the Detector. Measured on the Temperature processor and changes gradually Signal strength between the Hub and the Signal Strength detector Battery level of the detector, displayed in Battery Charge increments of 25% The tamper mode of the detector, which reacts to the detachment of or damage to the body Delay when entering, sec Delay time when entering...
  • Page 6 Always Active armed mode Firmware Detector firmware version Device ID Device identifier Settings → ⚙ Devices → MotionProtect (MotionProtect Plus) Setting Value First field Detector name, can be edited Room Selecting the virtual room to which the device is assigned TH COMMUNICATION SDN BHD www.thcomm.com.my...
  • Page 7 Sensitivity  Low - ignore pets weighing up to 20 kg and up to 50 cm tall For MotionProtect Plus:  High: The detector disregards cats (under 25 cm).  Medium: Disregards small dogs (under 35 cm).

  • Page 8: Detector Testing

    The area of the controlled territory and, consequently, the efficiency of the security system depends on the location of the detector. Location of the Ajax MotionProtect detector determines its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.
  • Page 9 If, after moving, the device still has a low or unstable signal strength, use a radio signal range extender ReX. It is advisable that the direction of the detector lens sight is perpendicular to the probable way of intrusion into the room. Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the field of view of the detector.

  • Page 10: Installation Of The Detector

    If the detector is not installed at the recommended height, this will reduce the area of the motion detection zone and impair the operation of the function of ignoring animals. Installation of the Detector Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual! TH COMMUNICATION SDN BHD www.thcomm.com.my...
  • Page 11 LED - this will be a signal that the tamper on the detector is closed. If the LED indicator of the detector is not actuated after installation in SmartBracket, check the status of the tamper in the Ajax Security System application and then the fixing tightness of the panel.

  • Page 12: Detector Maintenance

    Detector Maintenance Check the operational capability of the Ajax MotionProtect detector on a regular basis. Clean the detector body from dust, spider web and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.

  • Page 13: Complete Set

    4. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service—in half of the...
