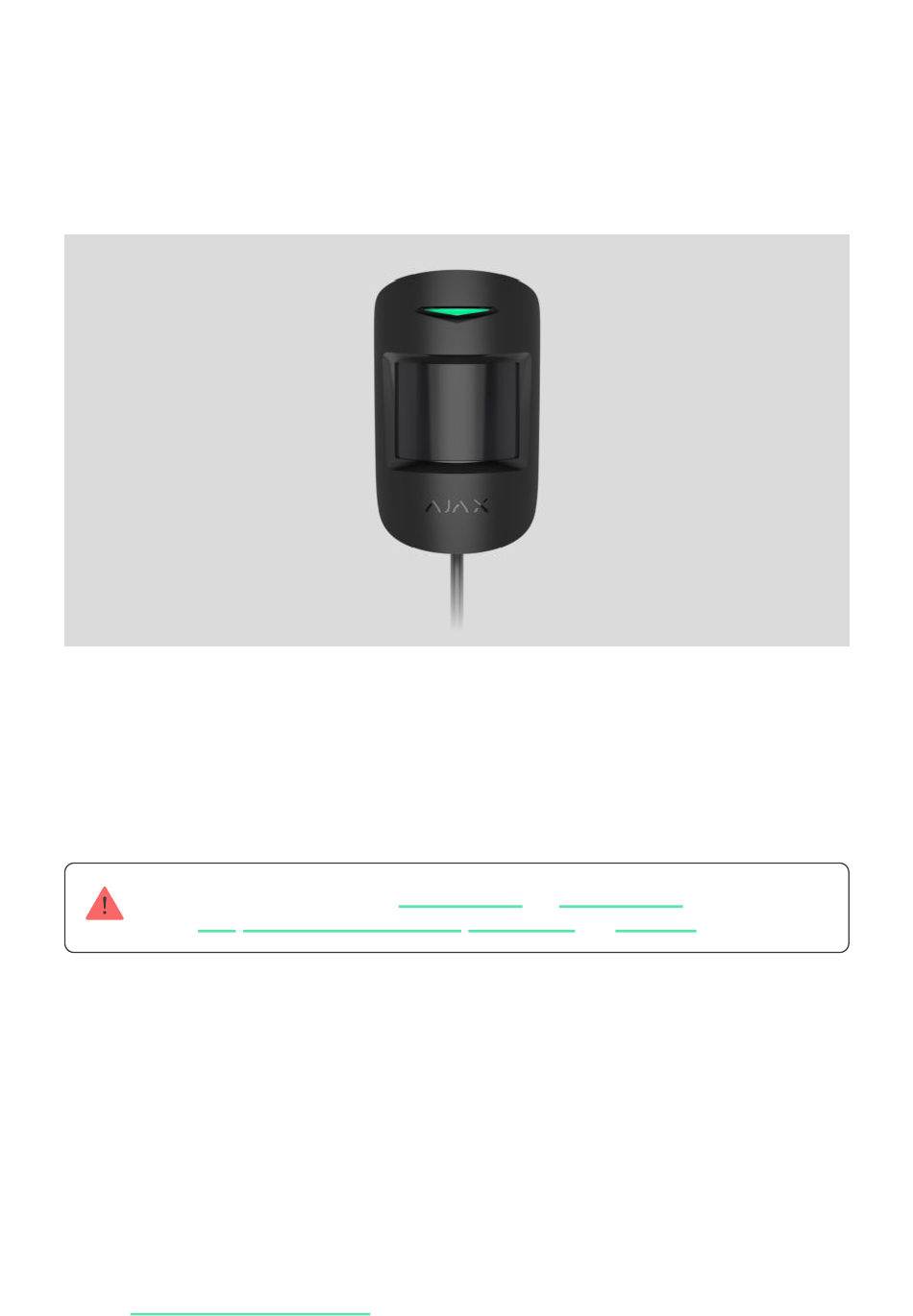

MotionProtect Fibra User Manual

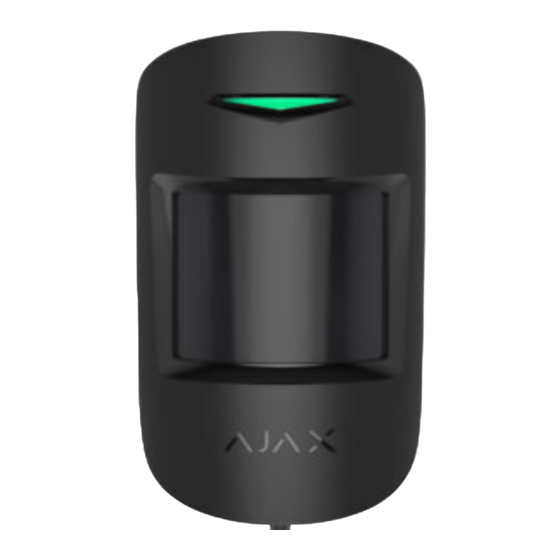

MotionProtect Fibra is a wired motion detector. It can recognize motion at a
distance of up to 12 meters. Does not respond to pets up to 50 centimeters tall
and weighing up to 20 kilograms. For indoor installation.
The detector is compatible with
other
hubs radio signal range extenders ocBridge Plus
,
MotionProtect Fibra works as part of the Ajax security system, exchanging data
with the hub using the secure Fibra wired protocol. The wired connection range
is up to 2,000 meters when using a U/UTP cat.5 twisted pair.
MotionProtect Fibra is a member of the product line of wired Fibra devices. The
installation, sale, and administration of these devices are performed only by
accredited Ajax partners.
Buy MotionProtect Fibra
Updated October 21, 2022
Hub Hybrid (2G)
and
,
Hub Hybrid (4G)
. Connection to
, and
uartBridge
is not provided.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect Fibra

Summary of Contents for AJAX MotionProtect Fibra

  • Page 1 Fibra wired protocol. The wired connection range is up to 2,000 meters when using a U/UTP cat.5 twisted pair. MotionProtect Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by accredited Ajax partners.

  • Page 2: Functional Elements

    8. QR code and ID (serial number) of the detector. It is used to pair the device with an Ajax security system. 9. Terminal strip connection socket. 10. Terminals for connecting the detector to the hub.
  • Page 3 MotionProtect Fibra is a wired motion detector. Using an IR sensor, the detector can identify intrusions by detecting moving objects with temperatures close to that of the human body. In the armed mode, the detector instantly transmits an alarm signal to the hub when it detects motion.

  • Page 4: Pet Immunity

    Fibra supports block encryption with a oating key and veri es each communication session with devices to prevent sabotage and spoo ng. To monitor connection with the system devices and display their statuses in Ajax apps, the protocol involves regular device polling by the hub with a speci ed interval.

  • Page 5: Temperature Compensation

    To offset this factor, we use temperature compensation. Temperature compensation is used in all Ajax motion detectors, so MotionProtect Fibra detects motion over the entire operating temperature range. More on temperature compensation Sending events to the monitoring station...

  • Page 6: Selecting The Installation Site

    Rapid Response Unit (RRU) has to be sent. Addressability of Ajax devices allows you to send not only events but also the type of the device, the name, group, and virtual room assigned to it to the PRO Desktop and to the CMS.
  • Page 7 The icon in the Devices tab in Ajax apps indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength. One bar — low signal strength; stable operation is not guaranteed.

  • Page 8: Detection Zone

    Check the Fibra signal strength before nal installation of the detector. If the signal strength is as low as one or zero bars, we cannot guarantee stable operation of the device. Detection zone When selecting detector placement, run a Detection Zone Test .
  • Page 9 Fibra wired and hybrid systems are available in this article Topologies Ajax security systems support two topologies: Beam (Radial wiring) and Ring. Connecting devices using a Ring topology will be implemented in the next OS Malevich updates. Hardware update of Hub Hybrid will not be required.
  • Page 10 Beam (Radial wiring) Ring Occupies one bus output of the hub. Occupies two bus outputs of the hub. Up to 8 beams on the same hub. Up to 4 rings on the same hub. Up to 2,000 m of wired communication for the Up to 500 m of wired communication for the same line.

  • Page 11: Additional Information

    Recommended cable types: U/UTP cat.5 4 × 2 × 0.51. The conductor material is copper. Signal cable 4 × 0.22. The conductor material is copper. If you use a different type of cable, the communication range for wired connection may vary.

  • Page 12: Cable Routing

    When preparing to route cables, check the electrical and re safety regulations in your region. It is safest to route cables inside walls, oors, and ceilings; this way, they will be invisible and unavailable for intruders. It also ensures greater durability; the cable will be affected by fewer of the external factors that can impact the natural wear of the conductor and its insulating layer.

  • Page 13: Installation And Connection

    0.75 to 1 mm². Installation and connection Before installing MotionProtect Fibra, make sure that you have selected the optimal location and that it meets the requirements of this manual. To reduce the risk of sabotage, the cables must be hidden from view and located in a place that is di cult for intruders to access.
  • Page 14 1 — external power supply. 2 — backup battery. 2. Plug the detector connection cable into the hub enclosure. Connect the wires to the required hub line. +24V — 24 V⎓ power terminal. А, B — signal terminals. GND — ground. 3.
  • Page 15 1 — for cable output from the rear of the detector. 2 — for cable output from the side. 3 — for cable output from the bottom. 4. If the detector is not the last device in the connection line, prepare a second cable in advance.
  • Page 16 9. Place the detector on the SmartBracket mounting panel. 10. Connect the backup battery and external power supply to the hub. Turn on the hub. Add MotionProtect Fibra to the hub 12. Perform the Fibra Signal Strength Test . The recommended signal strength is two or three bars.
  • Page 17 3. Make sure that the hub is on and has Internet access via Ethernet and/or mobile network. You can check the connection in the Ajax app or by looking at the LED on the hub board. It should light up white or green.
  • Page 18 1. Open the Ajax PRO app . Select the hub you want to add MotionProtect Fibra 2. Go to the Devices tab and click Add device. 3. Select Add all bus devices. The hub will scan all Fibra lines. After scanning, all wired devices connected to the hub will be displayed in the Devices tab.

  • Page 19: Functionality Testing

    MotionProtect Fibra only works with one hub. When connected to a new hub, the detector stops sending commands to the old one. Once added to a new hub, MotionProtect Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
  • Page 20 1. Select a hub if you have several of them or if you are using the Ajax PRO app. 2. Go to the Devices tab. 3. Select MotionProtect Fibra. 4. Go to the MotionProtect Fibra Settings by clicking on the gear icon 5.
  • Page 21 MotionProtect Fibra has been temporarily disabled by a user or a PRO with administrator rights. Learn more MotionProtect Fibra has been disabled due to exceeding the number of alarms. Learn more MotionProtect Fibra tamper-triggering events are temporarily disabled. Learn more States The states include information about the device and its operating parameters.
  • Page 22 the detector: Online — the detector is connected to the hub. O ine — the detector has lost connection with the hub. Bus Voltage Detector voltage value on the Fibra line. The status of the detector tamper that responds to detachment or opening of the device enclosure: Open —...
  • Page 23 120 seconds. Delay when leaving (arming delay) is the time the user has to leave the premises after enabling Night Mode. What is Delay When Leaving Sensitivity level of the motion detector: Low — the detector does not respond to pets up to 50 cm tall.
  • Page 24 The number of the Fibra line the device is Bus No. connected to. Settings To change the detector settings in the Ajax app: 1. Go to the Devices tab. 2. Select MotionProtect Fibra from the list. 3. Go to Settings by clicking on the gear icon 4.
  • Page 25 system after entering the premises. What is Delay When Entering Selecting delay time when leaving: 5 to 120 seconds. Delay when leaving (arming delay) is the time Delay When Leaving, sec the user has to leave the premises after arming. What is Delay When Leaving When this option is enabled, the detector will enter the armed mode when the system is set...
  • Page 26 The test allows the user to check the detector’s response to the motion and determine the Detection Zone Test optimal installation location. Learn more Opens MotionProtect Fibra User Manual in the User Guide Ajax app. Temporary Deactivation Allows the user to disconnect the device without removing it from the system.

  • Page 27: Led Indication

    Malfunctions If a hub identi es a detector malfunction (for example, there is no connection with the hub via Fibra protocol), the Ajax app will display a malfunction counter in the upper left corner of the device icon. All malfunctions can be seen in the detector states. Fields with malfunctions will be highlighted in red.

  • Page 28: Maintenance

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
  • Page 29 Warranty obligations User Agreement Contact Technical Support: e-mail Telegram Subscribe to the newsletter about safe life. No spam Email Subscribe...
