MotionProtect / MotionProtect Plus User
Manual
Updated August 13, 2020

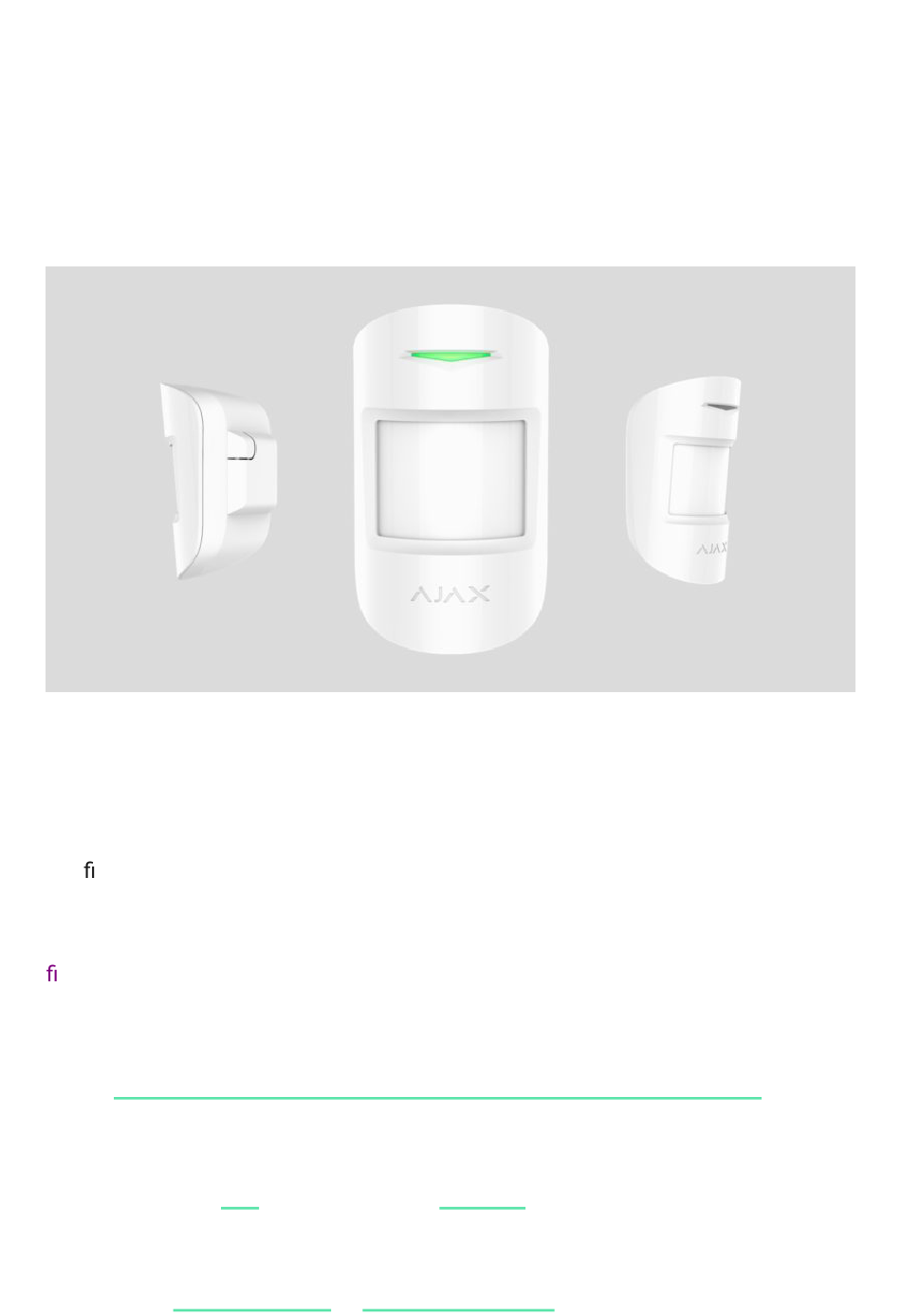

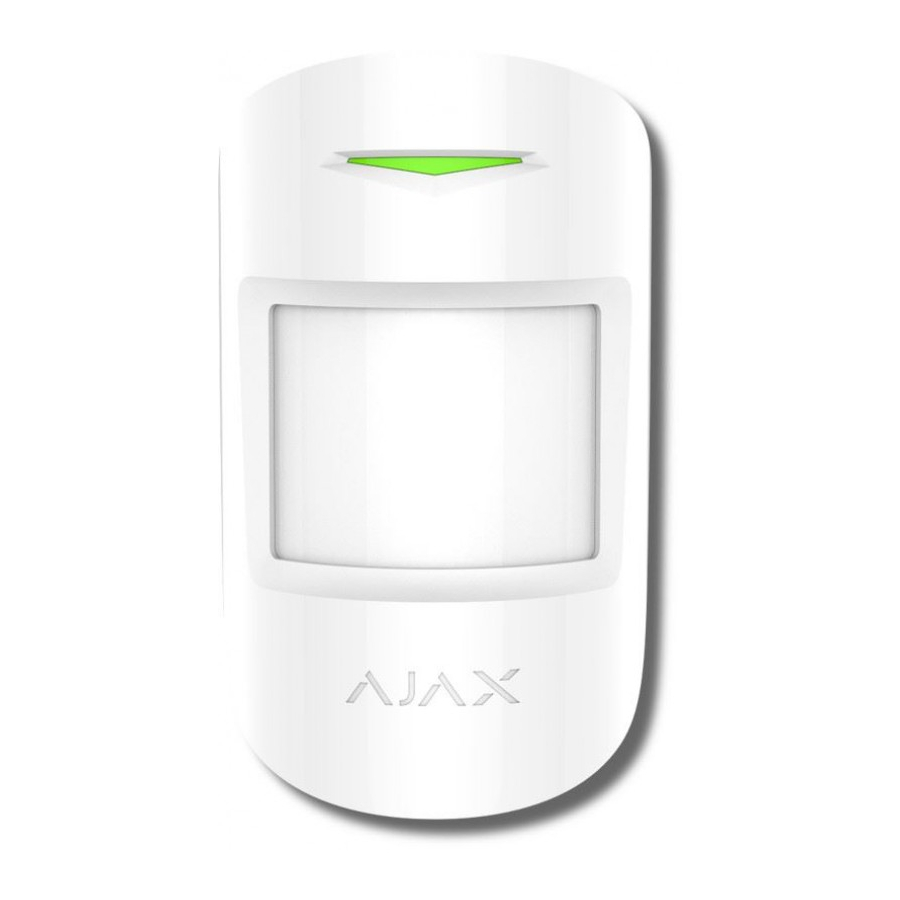

MotionProtect is a wireless motion detector designed for indoor use. It can
operate for up to 5 years from an in-built battery, and monitors the area within
12-meter radius. MotionProtect ignores animals, while recognizes a human from
the rst step.
MotionProtect Plus uses radio frequency scanning along with a thermal sensor,
ltering interference from thermal radiation. Can operate up to 5 years from an
in-built battery.
Buy motion detector with microwave sensor MotionProtect Plus
MotionProtect (MotionProtect Plus) operates within the Ajax security system,
connected to the
hub
via the protected
Jeweller
protocol. The communication
range is up to 1700
(MotionProtect Plus up to
1200) meters in the line of sight.
In addition, the detector can be used as a part of third-party security central
units via the
Ajax uartBridge
or
Ajax ocBridge Plus
integration modules.
