MotionProtect S Plus Jeweller user manual

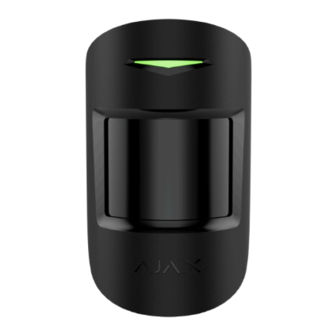

MotionProtect S Plus Jeweller is a wireless motion detector. Detects movement at a
distance of up to 12 meters*. Ignores pets when installed and configured correctly.
Together with the IR sensor, the detector applies a radio-frequency scan with a K-
band microwave sensor that filters out thermal interference. The device is designed
for indoor use only.
MotionProtect S Plus communicates with the hub using an encrypted
protocol. The communication range without obstacles is up to 1,200 meters.
* — for INCERT compliance 10 meters (high sensitivity)
This product line is developed for projects. Only accredited Ajax Systems partners can sell,
install, and administer Superior products.
Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous
possibilities for building systems of any configuration.
Functional elements
Updated June 26, 2024
Jeweller
radio
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AJAX MotionProtect S Plus Jeweller
Summary of Contents for AJAX MotionProtect S Plus Jeweller
- Page 1 MotionProtect S Plus Jeweller user manual Updated June 26, 2024 MotionProtect S Plus Jeweller is a wireless motion detector. Detects movement at a distance of up to 12 meters*. Ignores pets when installed and configured correctly. Together with the IR sensor, the detector applies a radio-frequency scan with a K- band microwave sensor that filters out thermal interference.
- Page 2 7. Device switch. . QR code with the device ID. It is used to pair the device with an Ajax hub. Compatible hubs and range extenders An Ajax hub with the firmware OS Malevich 2.16...
-
Page 3: Operating Principle
In case of an alarm, it instantly sends an alarm to the hub, activating the sirens connected to the system, triggering scenarios, and notifying users and the security company. All MotionProtect S Plus alarms and events are recorded in the event feed of the Ajax apps. -
Page 4: Pet Immunity
PRO-user with admin rights. In the second case, the delay occurs because the hub takes one polling interval to notify the detector about the transition to armed mode. How Ajax notifies of alarms More about Ajax motion detectors Pet immunity When properly installed and configured, MotionProtect S Plus does not react to pets... - Page 5 The addressability of Ajax devices allows sending events to the PRO Desktop or the CMS the type of the device, its name, security group, and virtual room. Note that the list of transmitted parameters may differ depending on the kind of CMS and the selected protocol for communication with the monitoring station.
- Page 6 The hub and the device operating at different radio frequencies are incompatible. The radio- frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can check the range of operating radio frequencies with the...
- Page 7 . Ensure the space is disarmed, and the hub is not starting an update by checking statuses in the Ajax app. This product line is developed for projects. Only accredited Ajax Systems partners can install, and administer Superior products. Connecting to the hub 1.
- Page 8 ), you will be notified when you try to add a new one. The detector connected to the hub will appear in the list of hub devices in the Ajax app. Updating the statuses of devices in the list depends on the Jeweller or Jeweller/Fibra settings;...
- Page 9 Jeweller signal strength. Displays the signal strength between the hub and the detector. The recommended value is 2–3 bars. Learn more The detector battery charge level is OK. Learn more The detector has a malfunction. The list of malfunctions is available in the detector states.
- Page 10 Learn more States The states include information about the device and its operating parameters. The states of MotionProtect S Plus can be found in Ajax apps: 1. Go to the Devices tab. 2. Select MotionProtect S Plus from the list.
- Page 11 Displays the status of using a range extender Battery level of the device. Displayed as a percentage. When the batteries are low, the Ajax apps and the security company will receive appropriate notifications. After sending a low battery Battery Charge notification, the detector can work for up to 2...
- Page 12 Learn more Shows the status of the device permanent deactivation setting: No — the device operates in the normal mode. Entirely — the detector is entirely excluded from the operation of the system. The device does not execute system commands and does Permanent Deactivation not report alarms or other events.
- Page 13 Detector ID detector enclosure and its package box. Device № Number of the device loop (zone). Settings To change MotionProtect S Plus settings in the Ajax apps: 1. Go to the Devices tab. 2. Select MotionProtect S Plus from the list.
- Page 14 3. Go to Settings by clicking on the gear icon 4. Set the required parameters. 5. Click Back to save the new settings. Setting Value Name of the detector. Displayed in the list of hub devices, the text of SMS and notifications in the event feed.
- Page 15 Learn more sirens When this option is enabled, the added to Alert with a siren if motion detected the system are activated when motion is detected by MotionProtect S Plus. Alarm Reaction Specify how this device will react to alarms: Instant Alarm —...
- Page 16 Signal Attenuation Test Learn more Opens the MotionProtect S Plus user manual in User Guide the Ajax app. Permanent Deactivation Allows the user to disable the device without removing it from the system. Three options are available: No — the device operates in normal mode and transmits all events.
- Page 17 Learn more Allows the user to disable events of the device until the first disarm. Three options are available: No — the device operates in normal mode and transmits all events. Entirely — the device is entirely excluded from the operation of the system for a time the One-Time Deactivation armed mode is active.
-
Page 18: Functionality Testing
Functionality testing The Ajax system offers several types of tests to help select the correct installation place for the devices. Tests do not start immediately. However, the waiting time does not exceed the duration of one “hub—device” polling interval. The polling interval can be checked and configured at hub settings (Hub →... -
Page 19: Signal Strength
Presence of obstacles for radio signal passage: walls, interfloor ceilings, large objects located in the room. Distance between the detector and other MotionProtect Plus Jeweller, MotionProtect S Plus Jeweller, or MotionProtect Plus Fibra should be 20 centimeters or more. Consider the recommendations for placement when developing a project for the security system of the facility. - Page 20 When choosing the installation place, consider the direction of the lens, viewing angles of the detector, and the presence of obstacles impairing the view. The intended path of the intruder must be perpendicular to the axis of the detector’s lens. Ensure that furniture, houseplants, vases, decorative or glass elements do not obstruct the view of the detector.
-
Page 21: Installation
. In places with low or unstable signal strength. This may result in the loss of the connection with the hub. 7. Near other MotionProtect Plus Jeweller, MotionProtect S Plus Jeweller, or MotionProtect Plus Fibra. The minimum distance between devices should be at least 20 centimeters. - Page 22 Double-sided tape can only be used for temporary installation. The device attached by the tape may come unstuck from the surface at any time. As long as the device is taped, the tamper will not be triggered when the device is detached from the surface. 3.
-
Page 23: Maintenance
. Place the detector on the SmartBracket mounting panel. 9. Tighten the holding screw on the bottom of the detector’s enclosure. The screw is needed for more reliable fastening and protection of the detector from quick dismantling. * — for INCERT compliance 10 meters (high sensitivity) Maintenance Check the functioning of the detector regularly. -
Page 24: Warranty
Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support first. In most cases, technical difficulties can be resolved remotely. - Page 25 Subscribe to the newsletter about safe life. No spam Email Subscribe...
