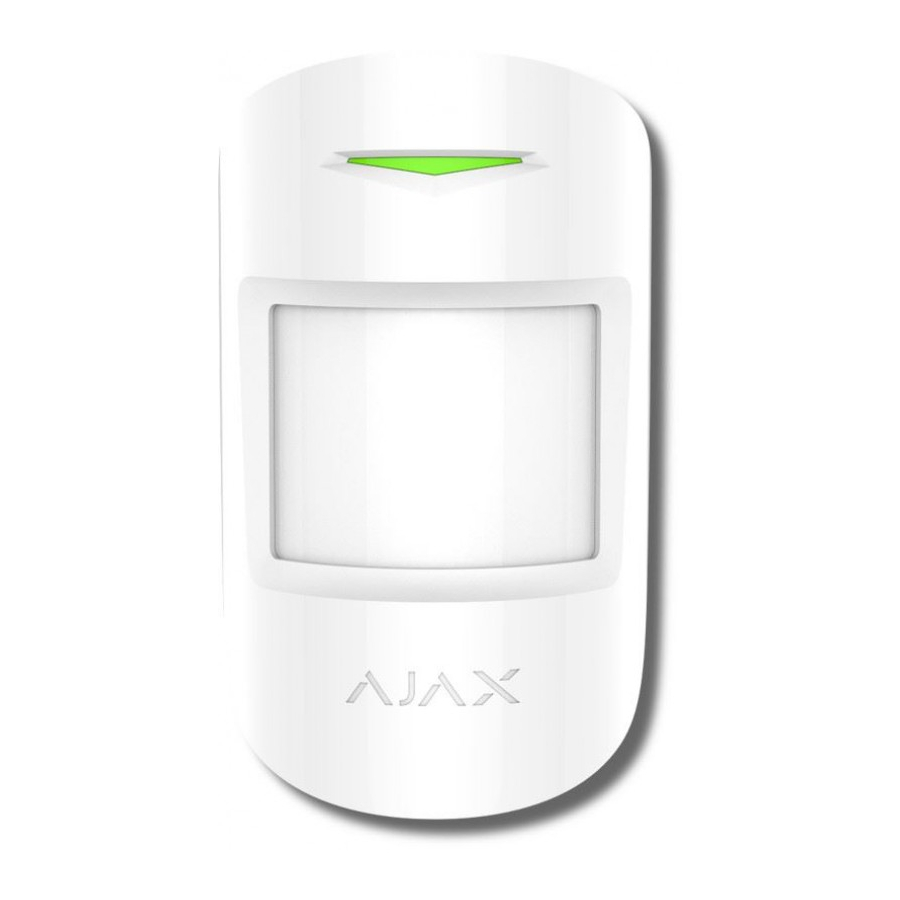

MotionProtect is a wireless motion detector designed for indoor use. It can
operate for up to 5 years from an in-built battery, and monitors the area within
12-meter radius. MotionProtect ignores animals, while recognizes a human from
the first step.
MotionProtect Plus uses radio frequency scanning along with a thermal sensor,
filtering interference from thermal radiation. Can operate up to 5 years from an
in-built battery.
MotionProtect (MotionProtect Plus) operates within the Ajax security system,
connected to the
via the protected
protocol. The communication
range is up to 1700
(MotionProtect Plus up to
1200) meters in the line of sight.
In addition, the detector can be used as a part of third-party security central
units via the
or
integration modules.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MotionProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect

Summary of Contents for AJAX MotionProtect

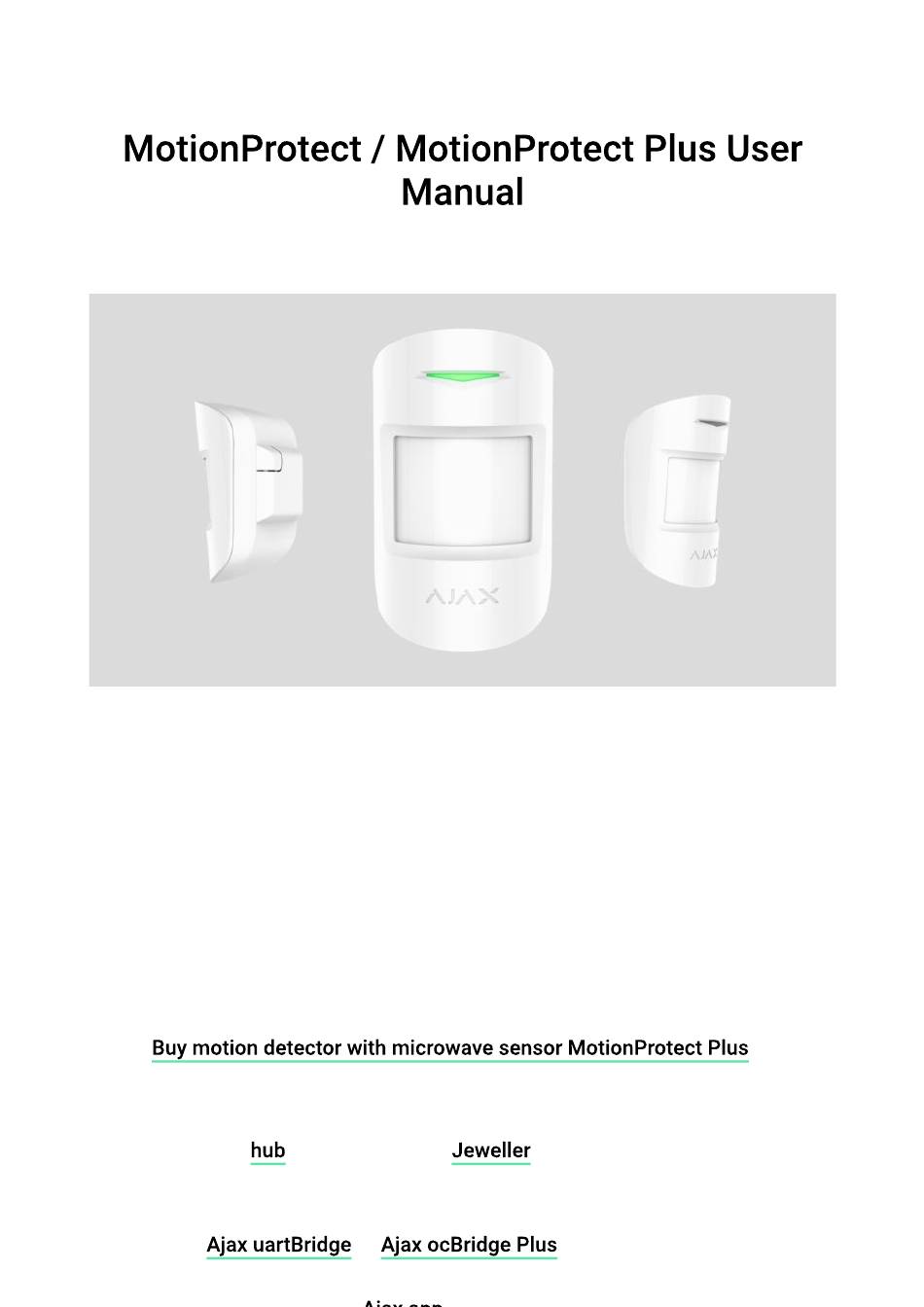

  • Page 1 Posted on May 27, 2021 MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius. MotionProtect ignores animals, while recognizes a human from the first step.
  • Page 2 The system notifies user of all events through push notifications, SMS and calls (if activated). The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a security company. 1. LED indicator 2. Motion detector lens 3.
  • Page 3 When the MotionProtect Plus detects motion, it will additionally carry out radio frequency scanning of the room, preventing false actuation from thermal interferences: air flows from sun-heated curtains and louvre shutters, operating thermal air fans, fireplaces, air conditioning units, etc.
  • Page 4 3. Select Add — the countdown will begin. 4. Switch on the device. For detection and pairing to occur, the detector should be located within the coverage of the wireless network of the hub (at a single protected object). Request for connection to the hub is transmitted for a short time at the moment of switching on the device.
  • Page 5 To connect the detector to a third party security central unit with the integration module, follow the recommendations in the manuals of these devices. 1. Devices 2. MotionProtect | MotionProtect Plus Parameter Value Temperature of the Detector. Measured on the...
  • Page 6 By number of alarms — the device is automatically disabled when the number of alarms is exceeded (specified in the settings for Devices Auto Deactivation). The feature is configured in the Ajax PRO app. Firmware Detector firmware version Device ID Device identifier...
  • Page 7 Sensitivity Low — ignore pets weighing up to 20 kg and up to 50 cm tall For MotionProtect Plus: High — the detector disregards cats (under 25 cm) Medium — disregards small dogs (under 35 Low — disregards animals under 50 cm.
  • Page 8 Lid only — the system will ignore only notifications about the triggering of the device tamper button Temporary Deactivation The system can also automatically disable devices when the set number of alarms is exceeded. User Guide Opens the User Guide Disconnects the detector from the hub and Unpair Device deletes its settings Before using the detector as a part of the security system, set up the suitable...
  • Page 9 The device developed only for indoor use. Location of MotionProtect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.
  • Page 10 Check the signal level at the installation location If the signal level is at one bar, we cannot guarantee stable operation of the security system. Take all possible measures to improve the quality of the signal! As a minimum, move the device – even 20 cm shift can significantly improve the quality of reception.
  • Page 11 Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual The Ajax MotionProtect detector  (MotionProtect Plus) should be attached to a vertical surface or in the corner.
  • Page 12 1. outside the premises (outdoors) 2. in the direction of the window, when the detector lens is exposed to direct sunlight (you can install MotionProtect Plus) 3. opposite any object with the rapidly changing temperature (e.g., electrical and gas heaters)
  • Page 13 8. closer than 1 m from the hub. Check the operational capability of the Ajax MotionProtect detector on a regular basis. Clean the detector body from dust, spider webs and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.
  • Page 14 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, Frequency band depending on the sales region Operates with all Ajax Compatibility Maximum RF output power Up to 20 mW Modulation of the radio signal GFSK Up to 1700 m (any obstacles absent)
  • Page 15 3. Battery CR123A (pre-installed) 4. Installation kit 5. Quick Start Guide Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service—in half of the cases, technical issues can be solved remotely!
