7. If the detector is the last in the line and the beam connection is used, install
a terminating resistor by connecting it to the signal terminals of the device.
When the ring connection method is used, a terminating resistor is not
needed.
More about connection methods (in progress)

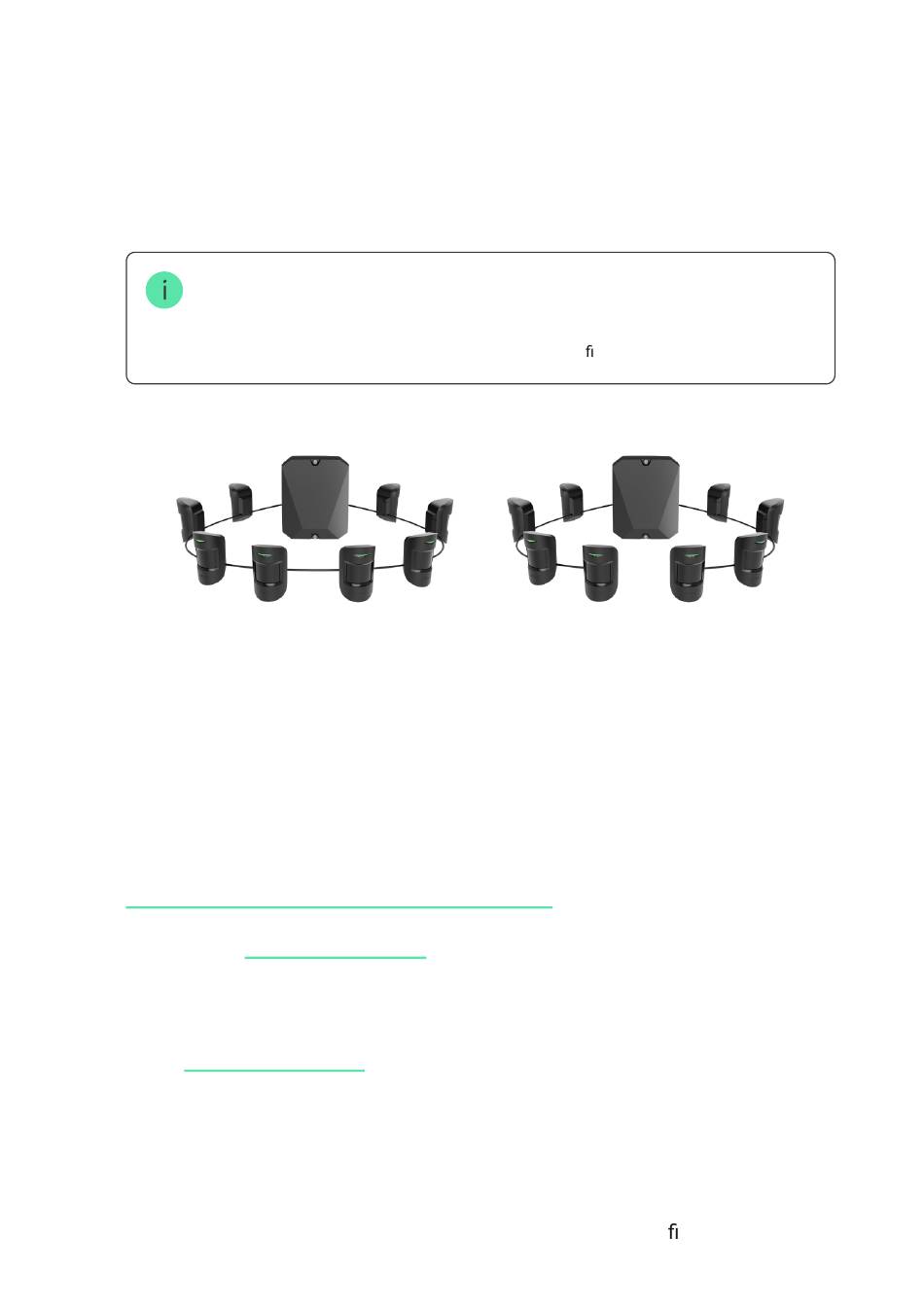

We recommend using the ring connection method (hub – device – hub). If the ring
is broken, not a single device will be disabled. In this case, two beams are formed,
which will continue to operate normally and transmit events to the hub. If the ring is
broken, the users and security company receive noti cation.
8. Temporarily install the SmartBracket mounting panel to a vertical surface or
corner using double-sided tape or other temporary fasteners at the chosen
installation place. This is needed to test the detector. The installation height
is 2.4 meters.
9. Turn on the hub and supply the connected detector with power. When power
is applied, an LED will notify that the detector is turned on.
10. Add a MotionProtect Plus Fibra to the system
11. Conduct the signal strength test
two or three bars. Otherwise, check the connection and the condition of the
cable.
12. Run a detection zone test
around the premises while observing the LED and determine the detection
zone of the detector. The maximum range of motion detection by the
detector is 12 meters. If the detector did not respond to motion during the
test in 5 out of 5 cases, it should be installed in a different location.
13. Attach the SmartBracket mounting panel with at least two xation points
using bundled screws. Use one of them on the perforated part of the mount
. The recommended signal strength value is
. In order to check the motion detector, walk
.
