MotionProtect / MotionProtect Plus User Manual
Updated January 19, 2021

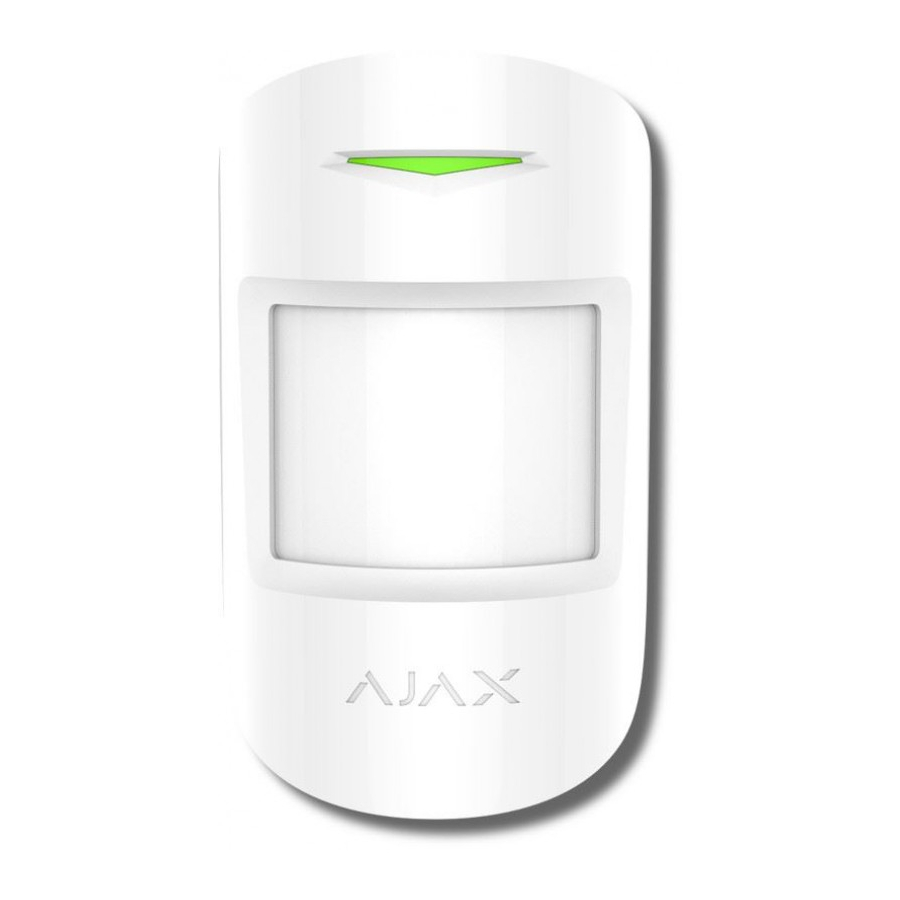

MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5
years from an in-built battery, and monitors the area within 12-meter radius. MotionProtect
ignores animals, while recognizes a human from the rst step.
MotionProtect Plus uses radio frequency scanning along with a thermal sensor, ltering
interference from thermal radiation. Can operate up to 5 years from an in-built battery.
Buy motion detector with microwave sensor MotionProtect Plus
MotionProtect (MotionProtect Plus) operates within the Ajax security system, connected to the
hub
via the protected
Jeweller
protocol. The communication range is up to 1700
Plus up to
1200) meters in the line of sight. In addition, the detector can be used as a part of
third-party security central units via the
Ajax uartBridge
modules.
The detector is set up via the
Ajax app
for iOS, Android, macOS and Windows. The system
noti es user of all events through push noti cations, SMS and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a security company.
Buy motion detector MotionProtect
Functional Elements
1. LED indicator
2. Motion detector lens
3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case
of any attempt to dismantle the detector)
4. Tamper button
5. Device switch
6. QR code
Operating Principle
Thermal PIR sensor of MotionProtect detects intrusion into protected room by detecting moving
objects whose temperature is close to the temperature of the human body. However, the
detector can ignore domestic animals if the suitable sensitivity has been chosen in the settings.
When the MotionProtect Plus detects motion, it will additionally carry out radio frequency
scanning of the room, preventing false actuation from thermal interferences: air ows from sun-
heated curtains and louvre shutters, operating thermal air fans, replaces, air conditioning units,
etc.
After actuation, the armed detector immediately transmits an alarm signal to the hub, activating
the sirens and notifying the user and security company.
(MotionProtect
or
Ajax ocBridge Plus
integration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect

Summary of Contents for AJAX MotionProtect

  • Page 1 MotionProtect / MotionProtect Plus User Manual Updated January 19, 2021 MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius. MotionProtect ignores animals, while recognizes a human from the rst step.
  • Page 2 If before arming the system, the detector has detected motion, it will not arm immediately, but during the next inquiry by the hub. Connecting the Detector to the Ajax Security System Connecting the Detector to the hub Before starting connection: 1.
  • Page 3 By number of alarms — the device is automatically disabled when the number of alarms is exceeded (speci ed in the settings for Devices Auto Deactivation). The feature is con gured in the Ajax PRO app. Firmware Detector rmware version...

  • Page 4: Detector Testing

    The device developed only for indoor use. Location of MotionProtect depends on the remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted oors, large-size objects located within the room.
  • Page 5 Installation of the Detector Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual The Ajax MotionProtect detector  (MotionProtect Plus) should be attached to a vertical surface or in the corner.

  • Page 6: Detector Maintenance

    8. closer than 1 m from the hub. Detector Maintenance Check the operational capability of the Ajax MotionProtect detector on a regular basis. Clean the detector body from dust, spider webs and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.

  • Page 7: Warranty

    5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service—in half of the...
