4. Launch the ADS1285EVM-PDK GUI software and power will be supplied to the EVM.
a. The default installation path is C:\Program Files (x86)\Texas Instruments\ADS1285 EVM.
5. As shown in
Figure
2-2, use the Configuration section of the GUI for a specific clock input, desired data
rate, and number of samples. Then, use the Capture button to collect data.
global input parameters and the various pages within the GUI.
SBAU394A – APRIL 2022 – REVISED SEPTEMBER 2022
Submit Document Feedback

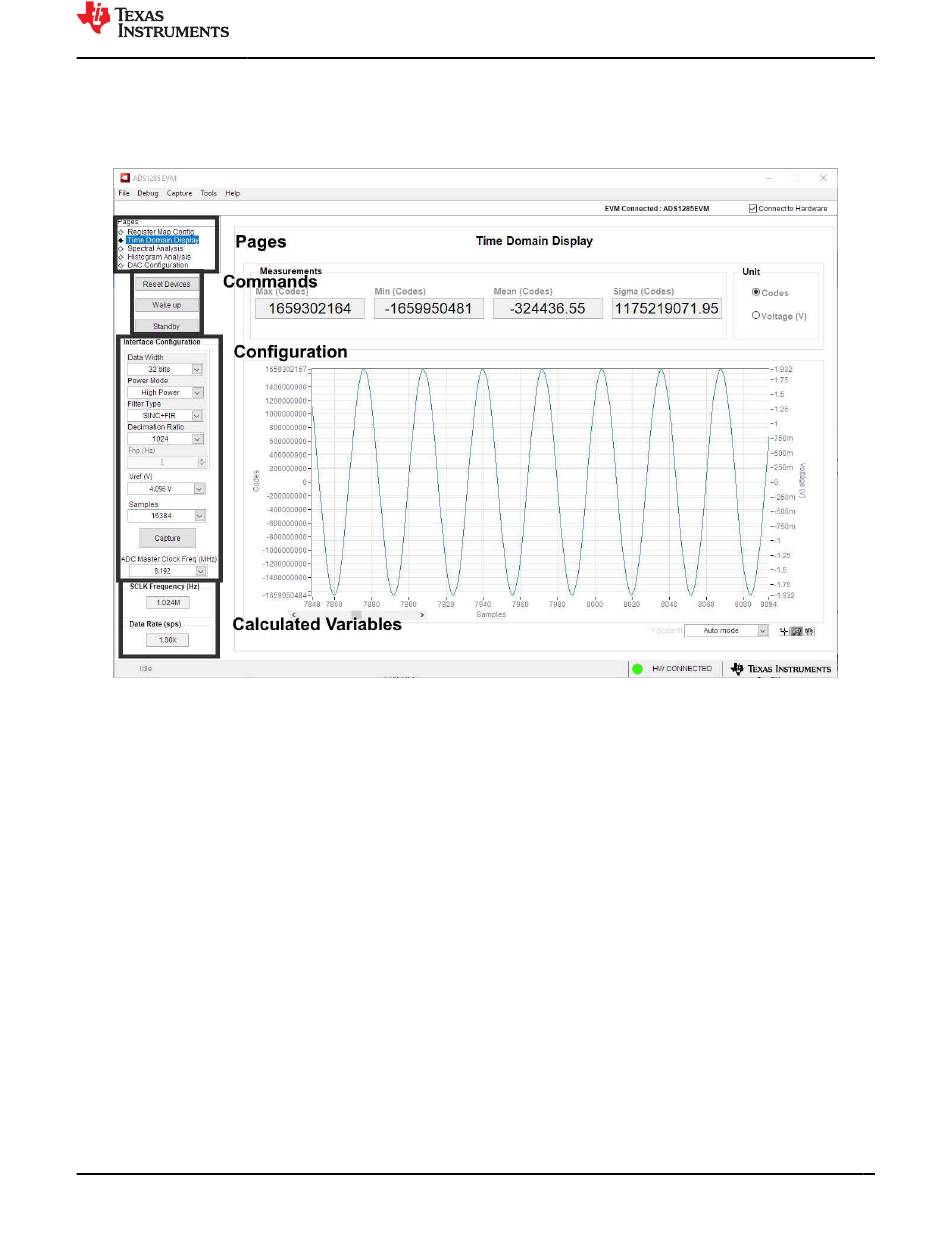

Figure 2-2. EVM GUI Global Input Parameters
Copyright © 2022 Texas Instruments Incorporated
ADS1285EVM-PDK Quick-Start Guide
Section 8.1
details the EVM GUI
ADS1285EVM-PDK Evaluation Module
