9.2 PCB Layout

Figure 9-1
through
Figure 9-6

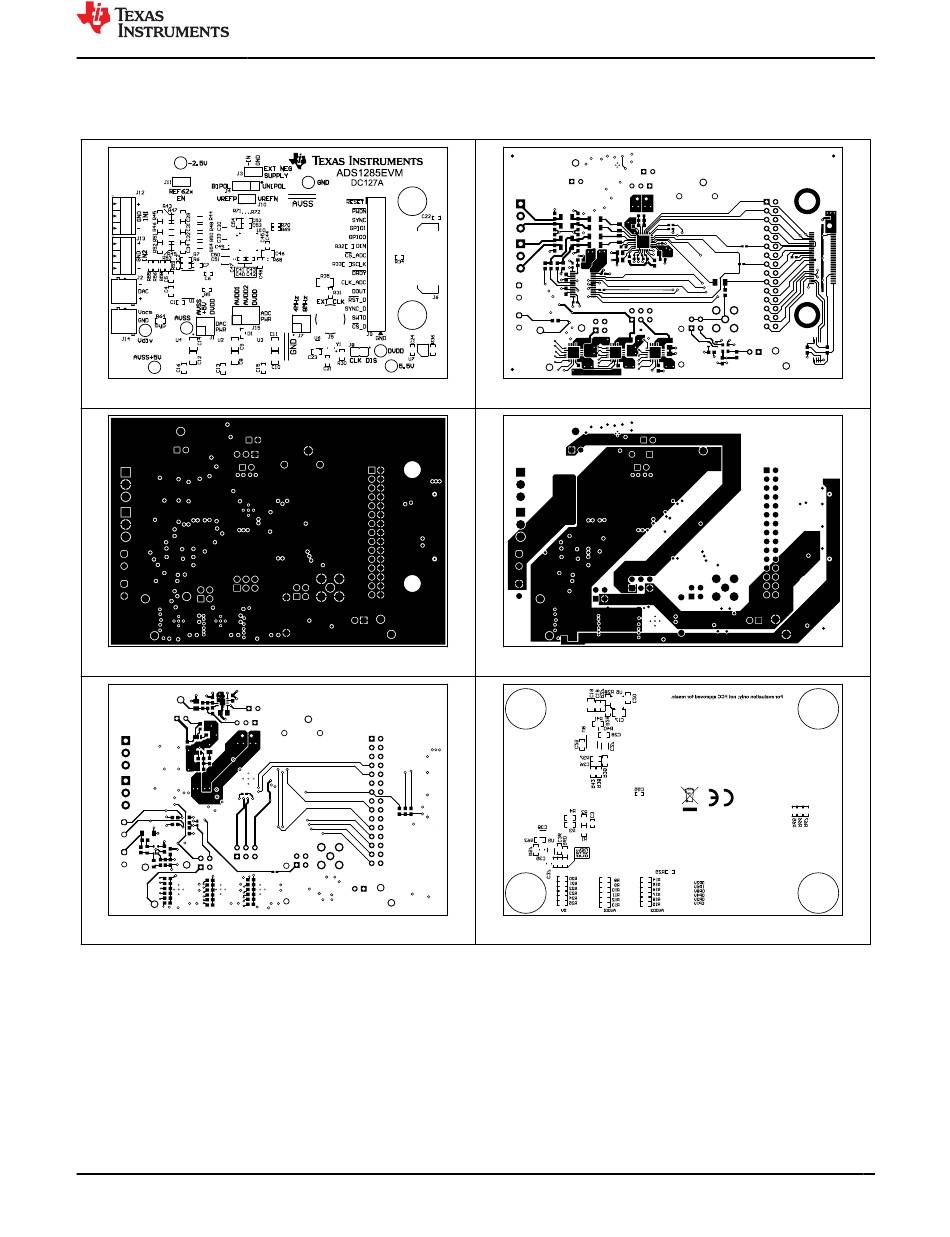

Figure 9-1. Top Silkscreen

Figure 9-3. Ground Layer 1

Figure 9-5. Bottom Layer

SBAU394A – APRIL 2022 – REVISED SEPTEMBER 2022
Submit Document Feedback
show the ADS1285EVM-PDK PCB layout.
Copyright © 2022 Texas Instruments Incorporated
ADS1285EVM-PDK Bill of Materials, PCB Layout, and Schematics

Figure 9-2. Top Layer

Figure 9-4. Power Layer

Figure 9-6. Bottom Silkscreen
