4. Identification

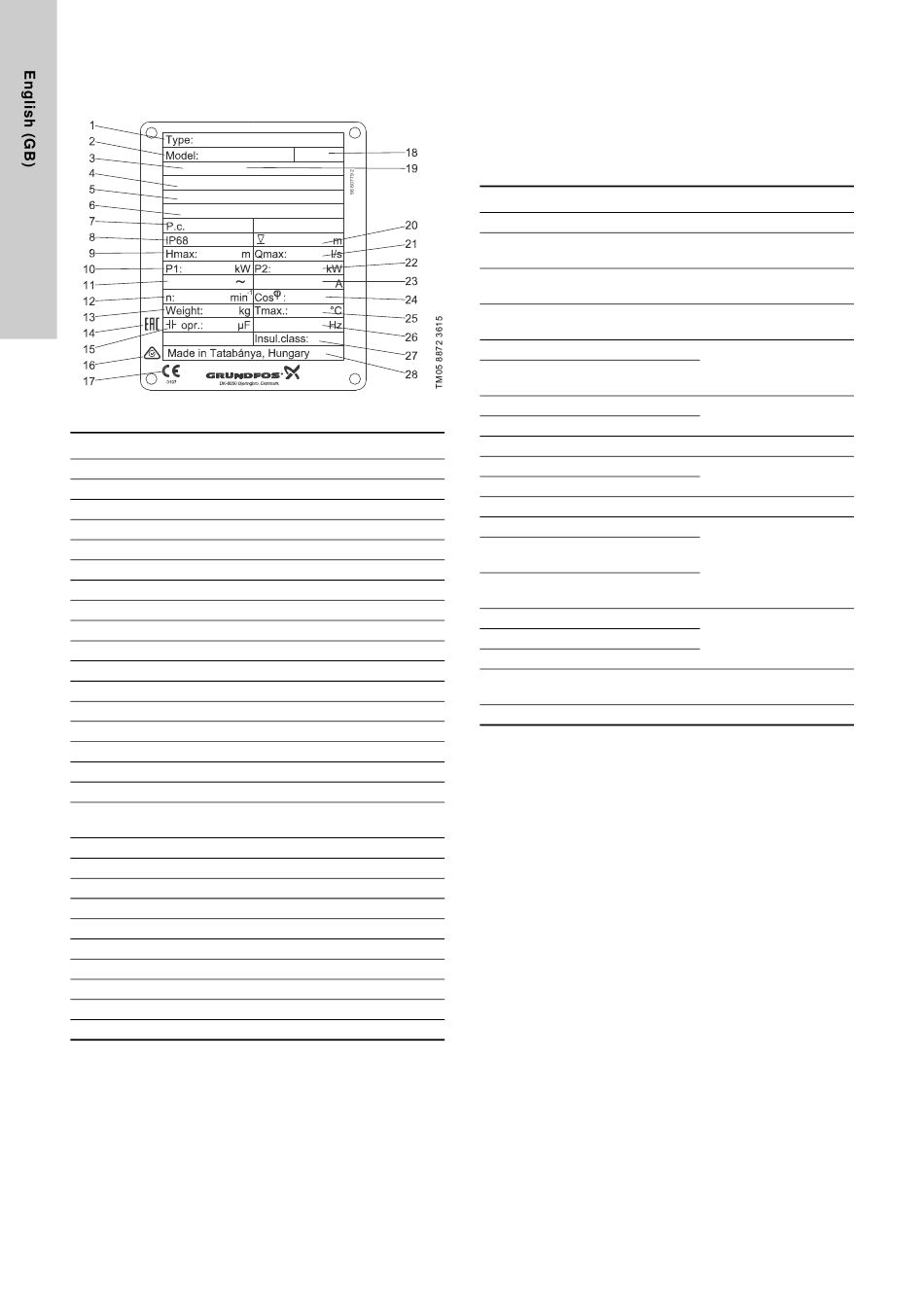

4.1 Nameplate

Nameplate, SEG AUTO
Fig. 1
Pos. Description
1 Type designation
2 Product number
3 Approval
4 ATEX certificate number
5 IEC Ex description
6 IEC Ex certificate number
7 Production code [year and week]
8 Enclosure class according to IEC 60529
9 Maximum head [m]
10 Rated input power [kW]
11 Rated voltage
12 Speed [rpm]
13 Net weight [kg]
14 EAC mark*
15 Run capacitor [µF]
16 RCM logo**
17 CE mark
Installation and operation instructions, publication
18
number
19 Ex description
20 Maximum installation depth [m]
21 Maximum flow rate [l/s]
22 Rated output power [kW]
23 Maximum current [A]
Cos φ, 1/1 load
24
25 Maximum liquid temperature [°C]
26 Frequency [Hz]
27 Insulation class
28 Production country
* For Russia only.
** For Australia only.
4
, 50 Hz
ADAPT

4.2 Type key

The type key covers the entire Grundfos SEG AUTO
of wastewater pumps. This is why the type key has a number of
empty fields for the grinder pumps. Each SEG grinder pump is
identified by means of the type key below.
Please note that not all combination options are available.
Example: SEG.40.12.E.Ex.2.1.502
Code Explanation
SE Grundfos sewage pumps
Grinder system in the pump
G
inlet
Nominal diameter of outlet
40
port [mm]
Code number from type
12
designation / 10 [kW]
[ ] Standard, without equipment
Electronic version with
E
AUTO functions
ADAPT
[ ] Standard pump
Ex Explosion-proof pump
2 2-pole
1 Single-phase motor
[ ] Three-phase motor
5 50 Hz
02 230 V, direct-on-line starting
400-415 V, direct-on-line
0B
starting
230-240 V, direct-on-line
0C
starting
[ ] First generation
A Second generation
B Third generation
Standard material (EN-GJL-
[ ]
200)
Z Custom-built pump
* Even if the pumps belong to different design generations, they
are similar in terms of power rating.
range
ADAPT
Designation
Pump type
Impeller type
Pump outlet
Output power
Sensor version
Pump version
Number of poles
Number of phases
Frequency [Hz]
Supply voltage and
starting method
Generation*
Pump material
Customisation
