Grundfos SEG Series Wiring Diagrams

2.0-5.5 hp
Hide thumbs Also See for SEG Series:
1
2

Advertisement

Quick Links

Download this manual
File Name: Wiring Diagram-SEG.pdf Rev. 7/24/17
EFFECTIVE DATE: July 24,2017
Wiring Diagrams for
SEG (2.0-5.5 HP) pumps
603 pumps (1 phase, 208-230V, 60Hz)
•
Connect pumps using a Direct-on-Line (DOL) connection.

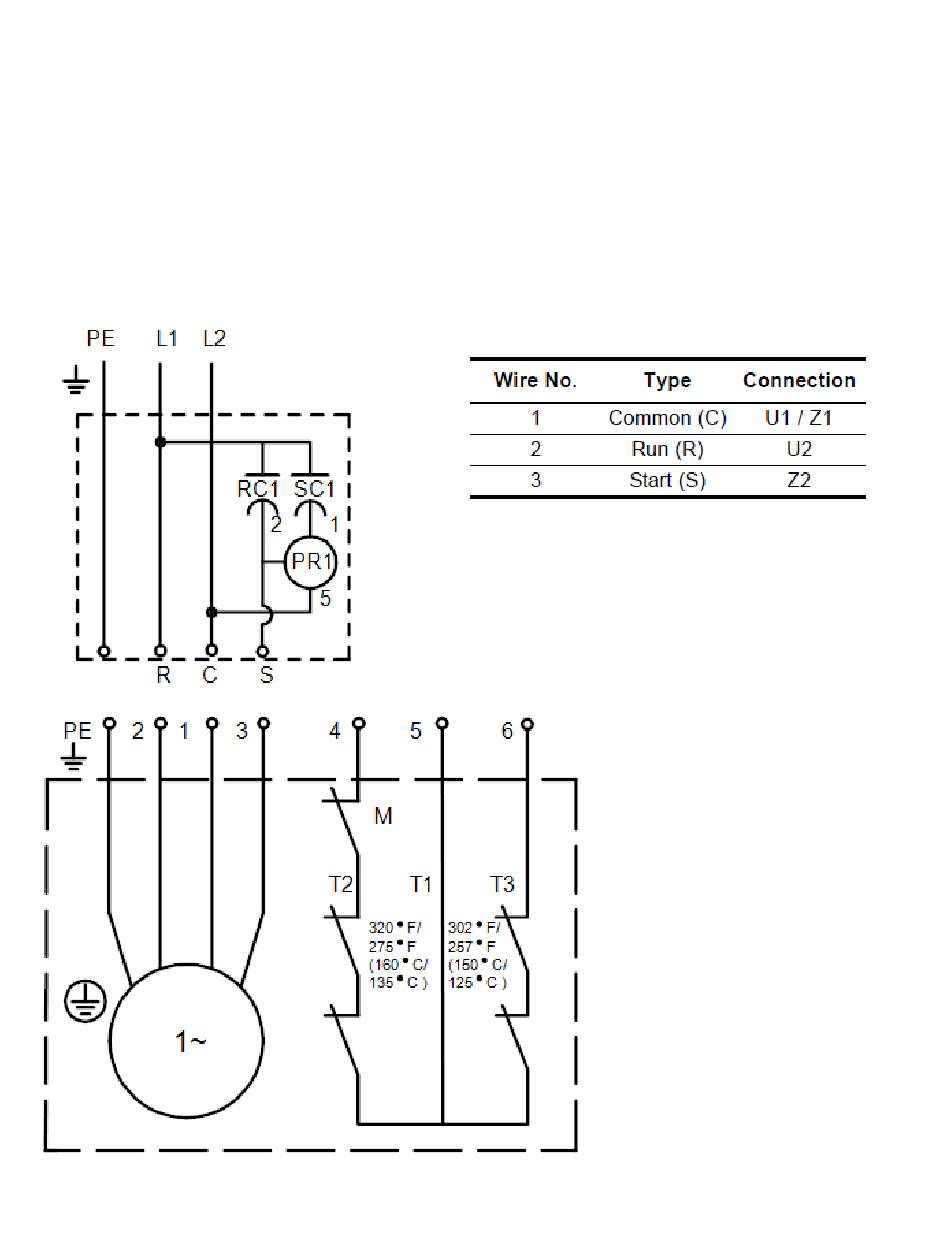

Fig. 1. Wiring Diagram, 1 phase 208-230, 60 Hz.

Advertisement

loading

Related Manuals for Grundfos SEG Series

Summary of Contents for Grundfos SEG Series

  • Page 1 File Name: Wiring Diagram-SEG.pdf Rev. 7/24/17 EFFECTIVE DATE: July 24,2017 Wiring Diagrams for SEG (2.0-5.5 HP) pumps 603 pumps (1 phase, 208-230V, 60Hz) • Connect pumps using a Direct-on-Line (DOL) connection. Fig. 1. Wiring Diagram, 1 phase 208-230, 60 Hz.
  • Page 2 File Name: Wiring Diagram-SEG.pdf Rev. 7/24/17 EFFECTIVE DATE: July 24,2017 Wiring Diagrams for SEG (2.0-5.5 HP) pumps 60M/60H pumps (3 phase, 200-230/460V, 60Hz) • Connect pumps using a Direct-on-Line (DOL) connection. Fig. 2. Wiring Diagram, 3 phase 200-230/460, 60 Hz.
