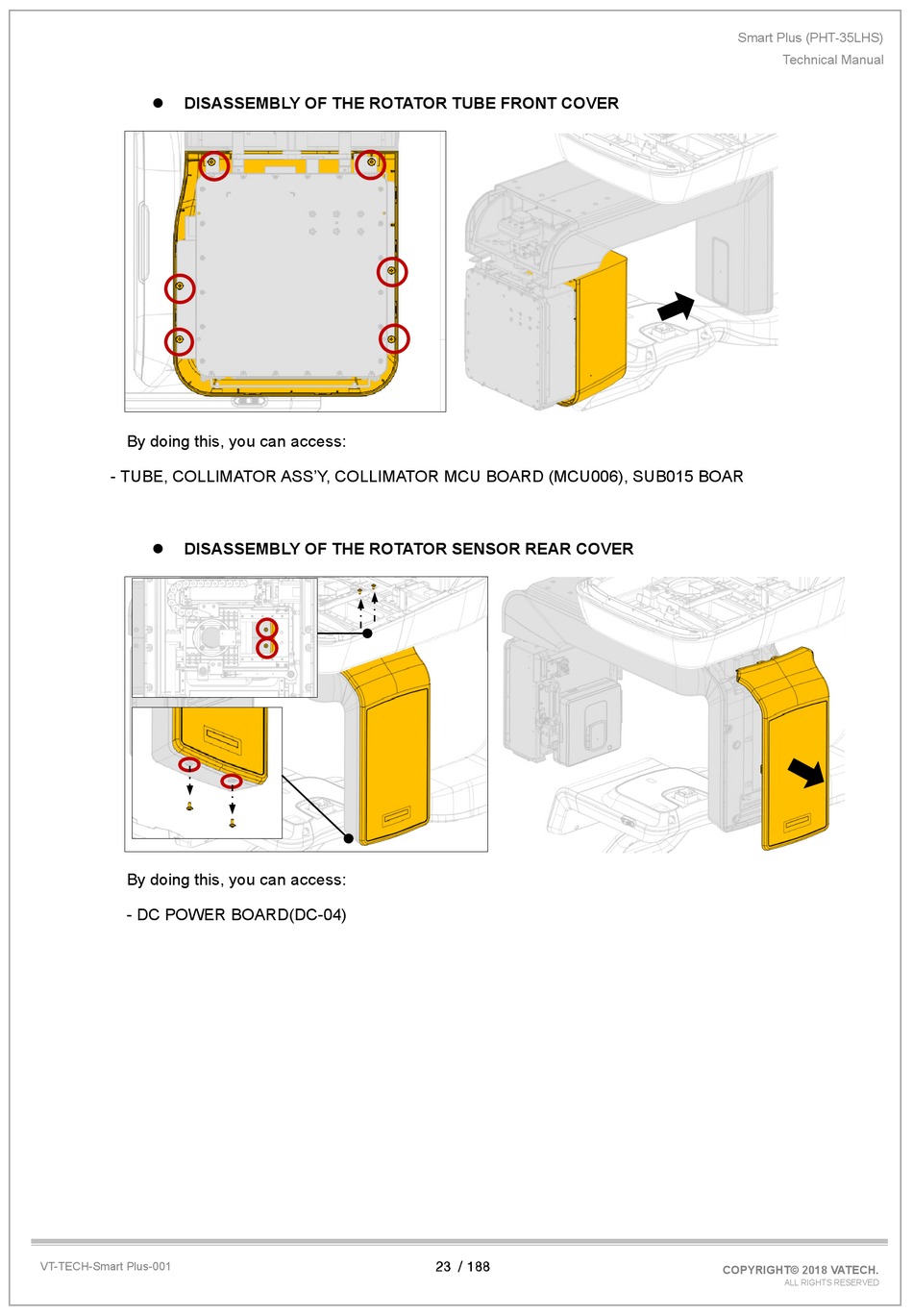

DISASSEMBLY OF THE ROTATOR TUBE FRONT COVER

By doing this, you can access:
- TUBE, COLLIMATOR ASS'Y, COLLIMATOR MCU BOARD (MCU006), SUB015 BOAR
DISASSEMBLY OF THE ROTATOR SENSOR REAR COVER

By doing this, you can access:
- DC POWER BOARD(DC-04)
