Setting the Collimator and Performing 4% Cut Evaluation

3.1. CEPH Collimator alignment using the EzAlign

Follow the procedure below to align the CEPH collimator with EzAlign.
1) When EzAlgin's first window appears, click Image Calibration.

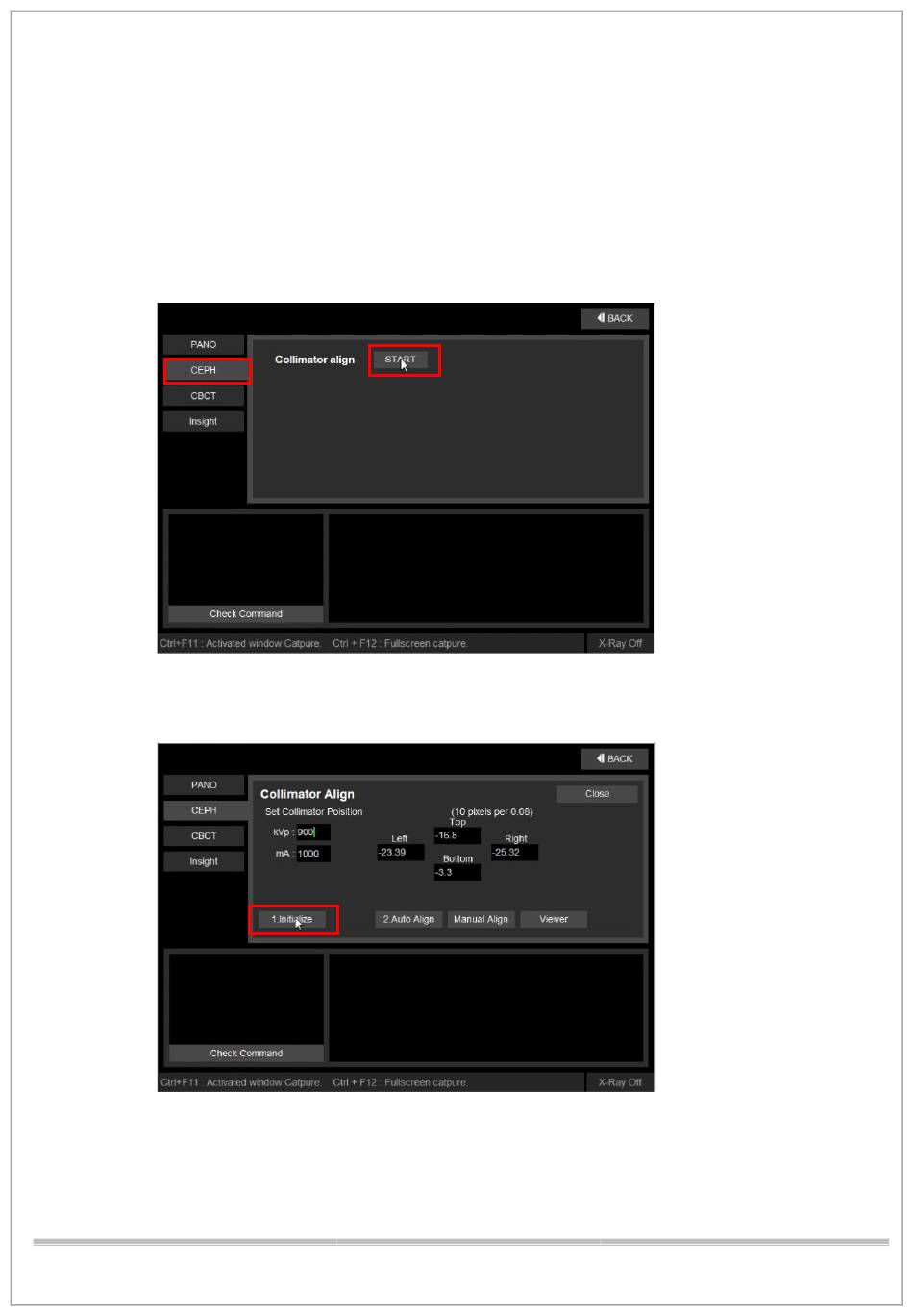

2) EzAlign has four tabs (PANO, CEPH, CBCT, Insight). Choose the CEPH tab and click Start next
to the collimator align menu. (See below)
①
3) After clicking Start, you can set the collimator position. When all parameters are correctly set,
click 1. Initialize for the next step.
