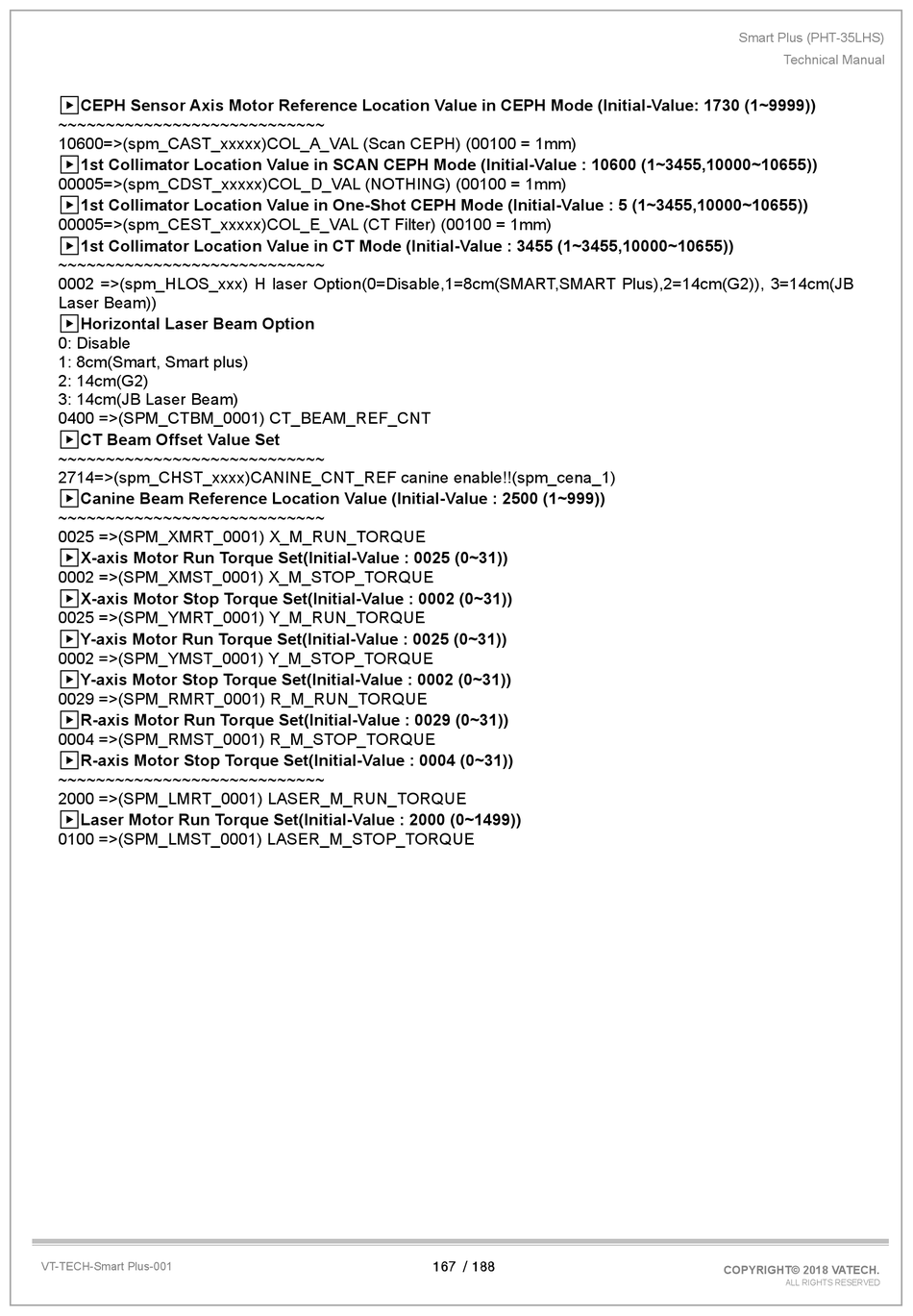

Smart Plus (PHT-35LHS)
Technical Manual
▶CEPH Sensor Axis Motor Reference Location Value in CEPH Mode (Initial-Value: 1730 (1~9999))
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
10600=>(spm_CAST_xxxxx)COL_A_VAL (Scan CEPH) (00100 = 1mm)
▶1st Collimator Location Value in SCAN CEPH Mode (Initial-Value : 10600 (1~3455,10000~10655))
00005=>(spm_CDST_xxxxx)COL_D_VAL (NOTHING) (00100 = 1mm)
▶1st Collimator Location Value in One-Shot CEPH Mode (Initial-Value : 5 (1~3455,10000~10655))
00005=>(spm_CEST_xxxxx)COL_E_VAL (CT Filter) (00100 = 1mm)
▶1st Collimator Location Value in CT Mode (Initial-Value : 3455 (1~3455,10000~10655))
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
0002 =>(spm_HLOS_xxx) H laser Option(0=Disable,1=8cm(SMART,SMART Plus),2=14cm(G2)), 3=14cm(JB
Laser Beam))
▶Horizontal Laser Beam Option
0: Disable
1: 8cm(Smart, Smart plus)
2: 14cm(G2)
3: 14cm(JB Laser Beam)
0400 =>(SPM_CTBM_0001) CT_BEAM_REF_CNT
▶CT Beam Offset Value Set
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
2714=>(spm_CHST_xxxx)CANINE_CNT_REF canine enable!!(spm_cena_1)
▶Canine Beam Reference Location Value (Initial-Value : 2500 (1~999))
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
0025 =>(SPM_XMRT_0001) X_M_RUN_TORQUE
▶X-axis Motor Run Torque Set(Initial-Value : 0025 (0~31))
0002 =>(SPM_XMST_0001) X_M_STOP_TORQUE
▶X-axis Motor Stop Torque Set(Initial-Value : 0002 (0~31))
0025 =>(SPM_YMRT_0001) Y_M_RUN_TORQUE
▶Y-axis Motor Run Torque Set(Initial-Value : 0025 (0~31))
0002 =>(SPM_YMST_0001) Y_M_STOP_TORQUE
▶Y-axis Motor Stop Torque Set(Initial-Value : 0002 (0~31))
0029 =>(SPM_RMRT_0001) R_M_RUN_TORQUE
▶R-axis Motor Run Torque Set(Initial-Value : 0029 (0~31))
0004 =>(SPM_RMST_0001) R_M_STOP_TORQUE
▶R-axis Motor Stop Torque Set(Initial-Value : 0004 (0~31))
~~~~~~~~~~~~~~~~~~~~~~~~~~~~
2000 =>(SPM_LMRT_0001) LASER_M_RUN_TORQUE
▶Laser Motor Run Torque Set(Initial-Value : 2000 (0~1499))
0100 =>(SPM_LMST_0001) LASER_M_STOP_TORQUE
