Page 1 Installation manual Model : PHT-35LHS Version : 1.29 English...
Page 3: Notice
VATECH Co., Ltd. (manufacturer) reserves intellectual property rights (IPR) for this manual and the equipment described herein. This IPR is protected by related laws and reproduction of this manual, in part or in full, is prohibited without the prior written consent of the Manufacturer.
Page 4: Important Notes
Important Notes Important Notes Moisture could be built upon the equipment from a sudden temperature change inside and outside the installation room. Allow at least an hour before turning ON the equipment to avoid condensation. To avoid improperly balanced equipment, install the device on a flat surface to maintain stability.
Page 5: Table Of Contents
Table of Contents Table of Contents Notice ..........................i Important Notes ......................ii Table of Contents ......................iii Introduction ....................1 Manufacturer's Liability ................ 1 Customer’s Responsibility ..............1 Conventions in this Manual ..............2 Marks and Symbols ................8 Standards and Regulations ..............
Page 6: Table Of Contents
Table of Contents Connecting the Cables to the Equipment ........... 75 Leveling the Equipment ..............76 Tightening the Bolts ................78 Completing Miscellaneous Works .............. 79 Assembling Various Covers ..............79 Assembling the Temple Supports and the Chinrest......81 Installing the Switch Holders .............. 82 Setting up PC ....................
Page 7: Introduction
1. Introduction Introduction Manufacturer's Liability As the manufacturer, VATECH assumes liability for the safe and reliable installation and operation of this equipment only when: Equipment installation, including software installation, was conducted by an  authorized agent by this installation manual.
Page 8: Conventions In This Manual
1. Introduction Conventions in this Manual The following symbols are used throughout this manual to emphasize information or indicate potential risks to the equipment or user. Make sure that you fully understand each symbol and follow the accompanying instructions. To prevent physical injury and damage to the equipment, please observe all warnings and safety information included in this document.
Page 9 1. Introduction Never touch or hold the sensor or tube head areas while moving, installing, or operating the equipment. Smart Plus (PHT-35LHS) Installation Manual...
Page 10 1. Introduction DO NOT step on the base unit while installing or operating the equipment. DO NOT use the electric drill for tightening / untightening screws. Use it only for drilling a hole on the wall. Grab the recommended holding areas only to transport the equipment.
Page 11 DO NOT connect any items or equipment to this  system that are not part of the system: IEC60601-1-1 (3rd edition: 2005). Any equipment not approved by VATECH must comply  with the applicable standards: IEC 60950-1 (2nd edition: 2005) for IT equipment (Ex: PC) and IEC 60601-1 (3rd edition: 2005) for medical electrical equipment.
Page 12 1. Introduction Installation Site The PC Monitor, Emergency Cut Off Switch, and X-ray  Exposure Switch should be installed near the operator so that he or she can manage them simultaneously in an emergency. Proper shielding of the room is essential. The installers ...
Page 13 Any equipment not provided by VATECH can be  connected when the following standards have complied with IEC 60950-1 and IEC 60601-1 The electrical installation shall comply with local code ...
Page 14: Marks And Symbols
1. Introduction Marks and Symbols Symbols Description Location Powerboard/ Inverter Dangerous voltage board/Mono block Protective earth (Ground) Column Off (power: disconnected to the Main Power Main Power Switch) Switch On (power: connected to the Main Main Power Power Switch) Switch Alternate current Label Type B Applied Equipment...
Page 15 1. Introduction Symbols Description Location Indicates that electrical and electronic equipment must not be disposed of as unsorted municipal Label waste and must be collected separately. Warns ESD hazard. board/Board package Indicates that this equipment is classified as a CLASS 1 LASER Label PRODUCT by IEC 60825-1 ED.2 regulations.
Page 16: Standards And Regulations
1. Introduction Standards and Regulations Standards Smart Plus is designed and developed to comply with the following international standards and regulations: MEDICAL - APPLIED ELECTROMAGNETIC RADIATION EQUIPMENT  AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012), CAN/CSA-C22.2 No.
Page 17: Choosing An Installation Site
2. Choosing an Installation Site Choosing an Installation Site Room Requirements The location of this equipment should allow for the high  visibility of the patient by the operator, and the operator should be as about the patient as possible. This equipment should not be installed on thick carpets ...
Page 18 2. Choosing an Installation Site <With CEPH Unit (optional): 2805.9 mm (L) x 2,457.5 mm (W) or wider > Smart Plus (PHT-35LHS) Installation Manual...
Page 19 2. Choosing an Installation Site <Ceiling Height: 2,437.5 mm (H) or higher > Smart Plus (PHT-35LHS) Installation Manual...
Page 20 2. Choosing an Installation Site Minimum Space Required Without CEPH unit 2,044.3 mm (L) x 2,457.5 mm (W) x 2,437.5 mm (H) With CEPH unit 2,805.9 mm (L) x 2,457.5 mm (W) x 2,437.5 mm (H) If the ceiling height is less than 2402 mm (without Base) / 2437.5 mm (with Base) (= max.
Page 21: Specifications For Electrical Installation
2. Choosing an Installation Site Specifications for Electrical Installation These specifications are based on the MEIGaN (Medical electrical installation guidance notes). Consult the companion manual for further information: Volume 3: Specification for Electrical Installation. Electrical Requirement This equipment must be connected to a grounded outlet to fulfill the safety provisions specified in IEC 60364: the 2 edition (2006).
Page 22 2. Choosing an Installation Site Smart Plus & PC To assure line voltage quality, a separate 3-core  grounded power cable connected directly to the central distribution panel with an over-current circuit breaker rated for 20A must be used. Maximally allowed deviation of the tube voltage/tube ...
Page 23: Environmental Specifications
2. Choosing an Installation Site Environmental Specifications Item Description Temperature 10 ~ 35 ℃ During Operation Relative humidity 30 ~ 75 % Atmospheric pressure 860 ~ 1060 hPa Temperature -10 ~ 60 ℃ During Transport Relative humidity 10 ~ 75 % (non-condensing) and Storage Atmospheric pressure 860 ~ 1060 hPa...
Page 24: Exposure Switch Installation Options
2. Choosing an Installation Site Exposure Switch Installation Options There are three options for installation, depending on the configuration of the site. Nevertheless, the 2 option is preferred. Option No. 1: The user operates the Exposure Switch from inside the X-ray room. Option No.
Page 25 2. Choosing an Installation Site Option No. 3: The 3 party Exposure Switch (not VATECH’s) is used on the demand of the customers. For this scenario, see Appendix D “Connecting the 3 party The Exposure Switch” for details. Smart Plus (PHT-35LHS) Installation Manual...
Page 26: Installation Versions
2. Choosing an Installation Site Installation Versions Base-stand Type Wall-mount Type Smart Plus (PHT-35LHS) Installation Manual...
Page 27: Installing The Warning Lamp And Door Interlock Switch
2. Choosing an Installation Site Installing the Warning Lamp and Door Interlock Switch Refer to Appendix A for a complete installation guide. This system can be equipped with a warning lamp and the Door Interlock Switch  which are activated when the X-ray is energized. The warning lamp and Door Interlock Switch are not included with the equipment.
Page 28: Before Installing The System
3. Before Installing the System Before Installing the System Before or during the system installation, make sure to use checklist No.3 through No.6 in Appendix F. Installation Checklist. Required Tools The following tools are necessary to install the Smart Plus. Item Figure Size...
Page 29 3. Before Installing the System Item Figure Size Anti-Static Glove Knife Tape Ruler (for Wall Mount type) Marker Pen (thick tip) (for Wall Mount type) Hammer (for Wall Mount type) Multimeter Hammer Drill L = 200 mm (7.9”) (for Wall Mount type) Transport Dolly Smart Plus (PHT-35LHS) Installation Manual...
Page 30: Checking The Shockwatch And Tiltwatch Indicators
Locate the ShockWatch and TiltWatch indicators and check if they have been activated. DO NOT open the package if you find either ShockWatch and TiltWatch indicators are activated. Please contact your VATECH service representative for assistance. Tilt Watch Shock Watch Smart Plus (PHT-35LHS) Installation Manual...
Page 31: Unpacking Boxes
Unpacking Boxes All packages and Styrofoam used to ship this equipment  are recyclable. Return the package to your VATECH Service  Representative or dispose of it in compliance with the legal regulations of your country. 3.3.1 Box No.
Page 32 3. Before Installing the System Removing the Cover Move the main box to a convenient place as close as possible to the installation location. Separate the top cover after removing the strapping bands. Lift a small distance, remove the side covers. Remove the plastic wrap covering the box by using a cutter.
Page 33 3. Before Installing the System PANO Box Configuration  CEPH Box Configuration  Smart Plus (PHT-35LHS) Installation Manual...
Page 34 3. Before Installing the System Transportation Pull out the upper and lower carrying handles from EPS (Main Base). Assemble the upper carrying handle by using one wrench bolt. M8 x 25 Wrench Bolt (2 Sems) - 1 pcs Allen Wrench 6 mm / 0.24”...
Page 35 3. Before Installing the System Assemble the lower carrying handle by using two Wrench Bolts. M8 x 30 Wrench Bolt - 2 pcs Allen Wrench 6 mm / 0.24” The Wrench Bolt is attached to the Column unit. Remove the bolts from the Column first. Remove the EPS (Main Right) and EPS (Main Left) as follows: Remove the fixing tapes on the EPS by using a cutter.
Page 36 3. Before Installing the System Pull out the Main Unit with the EPS (Main Base) from the pallet. Put the Main Unit with the EPS (Main Base) on a Transport Dolly and move it to the installation site. When putting the Main Unit on the dolly, make sure ...
Page 37 3. Before Installing the System 3.3.2 Box No. 2 - Base Unit Component Size (mm / inch) Weight (kg / lbs.) 1035(L) x 1025(W) x 185(H) / Base 65 / 143 40.7"(L) x 40.3"(W) x 7.3"(H) Removing the cover Open the box cover and remove the packing material as shown in the figure.
Page 38 3. Before Installing the System 3.3.3 Box No. 3 – CEPH Unit (Optional) Component Size (mm / inch) Weight (kg / lbs.) 1590(L) x 820(W) x 870(H) / CEPH unit 50 / 110 62.6"(L) x 32.3"(W) x 34.3"(H) Removing the cover Open the box cover and remove the packing material as shown in the figure.
Page 39: Checking The Parts
3. Before Installing the System Checking the Parts 3.4.1 Location Layout of the Parts and Accessories Smart Plus (PHT-35LHS) Installation Manual...
Page 40 3. Before Installing the System 3.4.2 Parts List In the Accessory Box 1 & 2 Part Confirmed Items Specification Figure Comments (OK?) User Manual Yes □ No □ Installation Yes □ No □ Manual 2D Viewer For EasyDent-i Manuals Yes □ No □ Manual or EzDent 3D Viewer...
Page 41 3. Before Installing the System Part Confirmed Items Specification Figure Comments (OK?) Anti-Static 1 pair Yes □ No □ Gloves Chinrest Special Yes □ No □ Normal Yes □ No □ *. Deep Bite Block is only Deep* available in Yes □...
Page 42 3. Before Installing the System Part Confirmed Items Specification Figure Comments (OK?) Left Blank Intentionally Left Blank Intentionally Cable Tie Yes □ No □ Optic Cable Yes □ No □ LAN Cable Yes □ No □ Frame Grabber IFG Card System (or) FTG Card...
Page 43 3. Before Installing the System Part Confirmed Items Specification Figure Comments (OK?) Flat Head M3 x 6 Yes □ No □ Screw CEPH Option CEPH Arm Yes □ No □ Cover 4 Flat Head M5 x 12 Yes □ No □ Screw Set Screw M10 x 20...
Page 44 3. Before Installing the System Part Confirmed Items Specification Figure Comments (OK?) 5/16 x 60 w/ Anchor Bolt Spring and For Concrete Yes □ No □ Flat Washers M8 x 25 w/ Wrench Bolt Spring and Yes □ No □ Flat Washers Yes □...
Page 45 3. Before Installing the System Another location Confirmed Items Specification Figure Qty. Comments Location (OK?) On the Base upper side Front of the EPS Yes □ No □ Cover (Main Bottom) On the Column upper side Back of the EPS Yes □...
Page 46: Installing The Equipment: Base Stand (Optional)
4. Installing the Equipment: Base Stand (Optional) Installing the Equipment: Base Stand (Optional) Assembling the Base and Main Units If the installation site is a concrete floor, go to section 4.4 Fixing the base (Optional) and do number 1 first, after that turn back 4.1 Assembling the Base and Main Units.
Page 47 4. Installing the Equipment: Base Stand (Optional) Put the base unit to the column unit by engaging the base holes in the bolts as shown in the figure. Hold the base unit to keep it from falling. Put the base unit to the column unit by engaging the base holes in the bolts as shown in the figure.
Page 48 4. Installing the Equipment: Base Stand (Optional) Tighten the two wrench bolts. Allen Wrench 6 mm / 0.24” Put the equipment in a vertical position slowly while holding the upper handle. DO NOT damage the cables. Before erecting the equipment, keep them clear of the equipment. Smart Plus (PHT-35LHS) Installation Manual...
Page 49 4. Installing the Equipment: Base Stand (Optional) Tighten the three wrench bolts to attach the base unit. Allen Wrench 8 mm / 0.31” M10 x 25 Wrench Bolt - 3 pcs (Part No. 23) Smart Plus (PHT-35LHS) Installation Manual...
Page 50: Installing The Ceph Unit (Optional)
4. Installing the Equipment: Base Stand (Optional) Installing the CEPH Unit (Optional) Never hold the areas of the collimator, sensor, and tube head. Now it is assumed that the CEPH box has already been opened. Remove the plastic wrap covering the column unit and the tape for fixing the CEPH cables by using a cutter.
Page 51 4. Installing the Equipment: Base Stand (Optional) Tighten the three wrench bolts to attach the base unit. Allen Wrench 8 mm / 0.31” M8 x 20 - 3 pcs Wrench Bolt (Part No. 25) Flat Washer (Part No. 34) Smart Plus (PHT-35LHS) Installation Manual...
Page 52 4. Installing the Equipment: Base Stand (Optional) Connect the cables as shown in the figure. When managing the fiber optic cable, DO NOT bend, pull, or crush it.  Ensure that the caps of the fiber optic cable have  been removed.
Page 53 4. Installing the Equipment: Base Stand (Optional) Put the cables inside the CEPH Arm and assemble the CEPH arm cover by using two flat head screws. Cross Head Screwdriver w/ 6 mm / 0.24” Magnetic Tip M3 x 6 Flat Head - 2 pcs Screw (Part No.
Page 54: Installing The Wall And Column Brackets
4. Installing the Equipment: Base Stand (Optional) Installing the Wall and Column Brackets Assembling the Column Bracket The column bracket must be properly installed. Otherwise, the equipment may be shaken during the scanning. Move the equipment to the installation site near the wall. Remove the lower carrying handle.
Page 55 4. Installing the Equipment: Base Stand (Optional) Assemble the column bracket to the top of the column with four flat head screws. Cross Head Screwdriver w/ 6 mm / 0.24” Magnetic Tip M5 x 12 Flat Head - 4 pcs Screw (Part No.
Page 56 4. Installing the Equipment: Base Stand (Optional) Combining Column and Wall Brackets Prepare the wall bracket. Wall Bracket (Part No. 36) Wall Bracket Optional (for Wood (Part No. 37) Wall) Combine the column and wall brackets in the following manner with the 2 wrench bolts.
Page 57 4. Installing the Equipment: Base Stand (Optional) Marking Points on the Wall Move the equipment to the installation site as close as possible. Adjust the distance between the wall and equipment by moving it slightly, so that the wall bracket touches the wall. Mark the anchor bolt locations on the wall.
Page 58 4. Installing the Equipment: Base Stand (Optional) Drilling on the Wall Drill the wall holes of size 10.5 mm x 30 mm (depth) using the concrete hammer drill. Remove the debris and clean the holes using the dust pump. Using the hammer, insert a Ficher strong anchor into the hole. Ficher strong anchor M8 x 30 Hammer...
Page 59 4. Installing the Equipment: Base Stand (Optional) Combining the Equipment with the Anchor Bolts Place the equipment on the alignment plate, while observing 4 Hex bolts are being appropriately inserted through each hole. Hex Bolt M8 x 15 Spring washer Flat washer Torque wrench Spanner type...
Page 60: Fixing The Base (Optional)
4. Installing the Equipment: Base Stand (Optional) Fixing the Base (Optional) Concrete Floor 5/16 x 60 w/ Spring and Flat Washers Anchor Bolt 2 pcs (Part No. 34) Hammer Drill L = 200 mm (7+-.9”) Hammer Ratchet Tips: 3 mm - 8 mm Wrench (0.12”...
Page 61 4. Installing the Equipment: Base Stand (Optional) Remove nuts and washers, put the anchor bolts into the holes. Secure the anchor bolts with the hammer. Place the base unit combined equipment in the proper position, lock the nuts and washers using a ratchet wrench. Smart Plus (PHT-35LHS) Installation Manual...
Page 62 4. Installing the Equipment: Base Stand (Optional) Wooden Floor M12 x 70 – 2 pcs Wood Screws (Part No. 34) Hammer Drill L = 200 mm (7.9”) Secure the base unit using wood screws. Smart Plus (PHT-35LHS) Installation Manual...
Page 63: Connecting The Cables To The Equipment
4. Installing the Equipment: Base Stand (Optional) Connecting the Cables to the Equipment. Connect the cables in the back of the column as shown in the figure. Cable No. H000014A Optic Cable (Part No. 21) Cable Tie (Part No. 20) Exposure (Part No.
Page 64 4. Installing the Equipment: Base Stand (Optional) Assemble the Column Back Cover with four truss bolts. M4 x 8 – 2 pcs Truss Bolt (Part No. 27) Cross Head Screwdriver w/ 6 mm / 0.24” Magnetic Tip Ensure the cables go through the Column Back Cover holes as shown in the figure.
Page 65: Removing The Transportation Safety Bolts
4. Installing the Equipment: Base Stand (Optional) Removing the Transportation Safety Bolts Remove the two-column fixing bolts including the tags. Allen Wrench 6 mm / 0.24” Remove the semi-clear tape on both sides. Be careful not to scratch the cover. Smart Plus (PHT-35LHS) Installation Manual...
Page 66 4. Installing the Equipment: Base Stand (Optional) Remove the Vertical Frame Cover. Remove four Safety Bolts and two Safety Brackets including the tags. Allen Wrench 6 mm / 0.24” Be sure not to damage the cables when removing the bolts. The Safety Bracket is removable only after the Safety Bolt upon it is removed.
Page 67: Leveling The Equipment
4. Installing the Equipment: Base Stand (Optional) Leveling the Equipment T-shaped Hex Wench 8 mm / 0.3” Spirit Level Ensure that the Spirit Level should rest only on the locations indicated in the following figures to obtain the accurate center. Prepare the Spirit Level.
Page 68 4. Installing the Equipment: Base Stand (Optional) Leveling Right and Left Place the Spirit Level, as shown in the figure. Adjust the base until the bubble on the Spirit Level centers in the middle, by turning left and right screws clockwise or vice versa. Smart Plus (PHT-35LHS) Installation Manual...
Page 69: Tightening The Bolts
4. Installing the Equipment: Base Stand (Optional) Leveling the Front and Back Place the Spirit Level on the Vertical Frame, as shown in the following figure. Adjust the screws until the bubble of Spirit Level centers (level), by turning the front and back screws clockwise or vice versa.
Page 70: Installing The Equipment: Wall Mount
5. Installing the Equipment: Wall Mount Installing the Equipment: Wall Mount Installing the Equipment You are advised to plan and study the installation environment carefully in advance before proceeding since the installation involves drilling the wall and floor. Pre- installation planning is crucial to a successful installation. Accurate marking is of critical importance for a successful installation.
Page 71 5. Installing the Equipment: Wall Mount Marking Points on the Floor Put the aligning plate on the floor near the wall where the equipment should be installed as shown in the figure. Alignment (Part No. 4) Plate Mark 6 anchor bolts holes on the floor. Marker Smart Plus (PHT-35LHS) Installation Manual...
Page 72 5. Installing the Equipment: Wall Mount Drilling the Floor Remove the aligning plate. Drill the floor holes (size: 10.5 x 30 mm) by using the concrete hammer drill. Remove the debris and clean the holes with the dust pump. Put the anchor bolts into the holes and attach them with the hammer. Verify that the anchors are secured.
Page 73 5. Installing the Equipment: Wall Mount Combining the Equipment with the Anchor Bolts Put the aligning plate on the floor and ensure that all anchored bolts come through the holes on the plate. Put the equipment in a vertical position slowly while holding the upper handle as shown in the figure.
Page 74 5. Installing the Equipment: Wall Mount Put the Equipment on the aligning plate while making sure that the column bottom holes engage in the anchored bolts. Put the washers and nuts into the six anchored bolts on the floor and tighten the nuts loosely.
Page 75: Installing The Ceph Unit (Optional)
5. Installing the Equipment: Wall Mount Installing the CEPH Unit (Optional) Please refer to section 4.2 Installing the CEPH Unit (Optional). Installing the Wall and Column Brackets Assembling the Column Bracket Move the equipment to the installation site near the wall. Remove the lower carrying handle.
Page 76 5. Installing the Equipment: Wall Mount Assemble the column bracket to the top of the column with four flat head screws. Cross Head Screwdriver w/ 6 mm / 0.24” Magnetic Tip M5 x 12 - 4 pcs Flat Head Screw (Part No.
Page 77 5. Installing the Equipment: Wall Mount Combining Column and Wall Brackets Prepare the wall bracket. Wall Bracket (Part No. 36) Wall Bracket Optional (for Wood Wall) (Part No. 37) Combine the column and wall brackets in the following manner with the 2 wrench bolts.
Page 78 5. Installing the Equipment: Wall Mount Marking Points on the Wall Move the equipment to the installation site as close as possible. Adjust the distance between the wall and equipment by moving it slightly, so that the wall bracket touches the wall. Mark the anchor bolt locations on the wall.
Page 79 5. Installing the Equipment: Wall Mount Drilling on the Wall Drill the wall holes of size 10.5 mm x 30 mm (depth) using the concrete hammer drill. Remove the debris and clean the holes using the dust pump. Using the hammer, insert a Ficher strong anchor into the hole. Ficher strong anchor M8 x 30 Hammer...
Page 80 5. Installing the Equipment: Wall Mount Combining the Equipment with the Anchor Bolts Place the equipment on the alignment plate, while observing 4 Hex bolts are being appropriately inserted through each hole. Hex Bolt M8 x 15 Spring washer Flat washer Torque wrench Spanner type Remove the middle carrying handle.
Page 81: Removing The Transportation Safety Bolts
5. Installing the Equipment: Wall Mount Connecting the Cables to the Equipment Please refer to section 4.5 Connecting the Cables to the Equipment. Removing the Transportation Safety Bolts Please refer to section 4.6 Removing the Transportation Safety Bolts. Smart Plus (PHT-35LHS) Installation Manual...
Page 82: Leveling The Equipment
5. Installing the Equipment: Wall Mount Leveling the Equipment T-shaped Hex 8 mm / 0.3” Wench Spirit Level Ensure that the Spirit Level should rest only on the locations indicated in the following figures to obtain the accurate center. Prepare the Spirit Level. Turn the Rotating Unit clockwise so that the X-ray tube head faces the front as shown in the figure.
Page 83 5. Installing the Equipment: Wall Mount Turn each set screw clockwise or counterclockwise to make the equipment level while another person monitors the level indicator. Smart Plus (PHT-35LHS) Installation Manual...
Page 84: Tightening The Bolts
5. Installing the Equipment: Wall Mount Tightening the Bolts Tighten the joint bracket bolts. Allen Wrench 6 mm / 0.24” Monkey Wrench Tighten the nuts in the anchored bolts on the floor. Smart Plus (PHT-35LHS) Installation Manual...
Page 85: Completing Miscellaneous Works
6. Completing Miscellaneous Works Completing Miscellaneous Works Assembling Various Covers Base Cover (Optional) M5 x 8 – 3 pcs Truss Bolt (Part No. 26) 3 pcs Base Cap (Part No. 17) Assemble the base cover and fix it with three Truss Bolts. Cover 3 holes on the base with three Base Caps.
Page 86 6. Completing Miscellaneous Works Base Front Cover If you do not use the base during the installation, remove 2 pcs of Truss bolts while installing the front cover as below. M4 x 8 – 2 pcs Truss Bolt (Part No. 27) 2 pcs Silicon Cap (Part No.
Page 87: Assembling The Temple Supports And The Chinrest
6. Completing Miscellaneous Works Assembling the Temple Supports and the Chinrest Assembling the Temple Supports and the Bite Block should be done after acquiring a test image is completed. Insert the normal Chinrest and the normal Bite Block into the unit. Chinrest 1 pcs (Normal)
Page 88: Installing The Switch Holders
6. Completing Miscellaneous Works Installing the Switch Holders 1 pcs UP / DOWN Switch Holder (Part No. 2) Optional - 1 pcs UP / DOWN Switch (Part No. 33) 1 pcs Exposure Switch Holder (Part No. 33) M4 x 10 – 2 pcs Truss Bolt (Part No.
Page 89: Setting Up Pc
7. Setting up PC Setting up PC Direct Connection Diagram Fiber Optic Cable - Used to transfer image data to the PC. Warning System Panel - Used to provide a visible indicator: Light on when the equipment is irradiating X-ray. Smart Plus (PHT-35LHS) Installation Manual...
Page 90: The Recommended Pc Requirements
7. Setting up PC The Recommended PC Requirements It is mandatory to ensure that the PC system  configuration is compatible with the PC system requirements for the imaging and image viewer software. Since image quality may be deteriorated from lack of ...
Page 91 7. Setting up PC In Windows 10, disable Windows Defender When Windows Defender is not enabled, Windows 10 is not protected from malware and virus. Disabling Windows Defender Open the Start screen, type Windows Defender in the search box. Click the Windows Defender icon to start Windows Defender on the search result.
Page 92 7. Setting up PC On Select Folder window, type C:\VcaptureSW in the folder field and click Exclude this folder. Smart Plus (PHT-35LHS) Installation Manual...
Page 93: Installing The Internal Peripherals
7. Setting up PC Installing the Internal Peripherals Allow enough time to dissipate remnant energy after unplugging the power cord from the main outlet or PC. Disregard this section in case the PC system is supplied  with the equipment. (The peripherals have already been installed inside the PC.) Whenever managing the fiber optic frame grabber board: ...
Page 94 7. Setting up PC Installing selectable Frame Grabber Board Unplug the power cable from the back of t h e PC and wait for a while. Open the PC cover. Insert the frame grabber (Part No. 21) carefully into that PCIe2 x 4 slot and lock it.
Page 95: Connecting The Cables To Pc
7. Setting up PC Connecting the Cables to PC Always check the cable condition visually. Surprisingly,  unexpected errors affecting image acquisition arise from the bad cable or its bad contact condition. Connect the regular cables for PC: keyboard, mouse, ...
Page 96 7. Setting up PC Confirm the result after connections are as same as below. The illustrations may differ from the actual product. Smart Plus (PHT-35LHS) Installation Manual...
Page 97: Setting Up Pc's Environment Variables
8. Setting up PC’s Environment Variables Setting up PC’s Environment Variables Disregard this section in case the PC system is supplied with the equipment. (The environment variables of the PC have already been set on the PC.) Before Beginning Ensure that the Emergency Stop Switch is in the OFF ...
Page 98: Turning The Firewall Off
8. Setting up PC’s Environment Variables Turning off the Firewall The LAN port and local IP may be blocked by the Windows Firewall property, leading to interruptions in imaging acquisition and data transmission. For this reason, it is required to disable the Windows Firewall by using the following procedures. Open the Start screen, type Windows Firewall in the search box.
Page 99: Setting Up The Power Mangement Options
8. Setting up PC’s Environment Variables Setting up the Power Management Options To avoid disruptive and abnormal operation while acquiring an image, it is required to reconfigure some parameters on the Windows operating system. Disable the Screen Saver Open the Start screen, type Screen Saver in the search box. On-Screen Saver Settings screen select (None) in the pull-down menu.
Page 100 8. Setting up PC’s Environment Variables Selecting the Power Options: Monitor and System Open the Start screen, type Power Options in the search box. Click Choose when to turn off the display. Select Never for both Turn off the display and Put the computer to sleep fields. Click Save changes to apply the settings.
Page 101: Turning Off The User Account Control
8. Setting up PC’s Environment Variables Turning off the User Account Control Open the Start screen, type User Account Control in the search box. Disable the UAC by moving the slider bar down to the bottom, Never notify. Then, click OK to apply change settings. Smart Plus (PHT-35LHS) Installation Manual...
Page 102: Setting Folder Exclusions With Anti-Virus Software
For Smart Plus, the following folders, and files inside for relevant software should be excluded from the virus scan. Path Software C:\Program Files\Vatech Ez3D-i/EzDent-i C:\VCaptureSW Console Software Suppose the anti-virus program from McAfee is running ...
Page 103: Installing Software
9. Installing Software Installing Software Disregard this section in case the PC system is supplied with the equipment. (The software has already been installed.) Before Beginning Ensure that the Emergency Stop Switch is in the OFF  position before starting with the InstallShield installation.
Page 104: Software Installation Flow
9. Installing Software Software Installation Flow Installing Image Viewer Program One of the image viewer programs among the EzDent-i / EasyDent or 3 party program must be installed at this time. For the details on the installation procedures, refer to the corresponding manuals.
Page 105: Installing The Installshield
9. Installing Software Installing the InstallShield The InstallShield installation information is included in the USB drive provided as an accessory. Please check the serial number.txt (e.g., 047-011752.txt) file. Turn on the PC and the equipment if they are not yet. Insert the USB drive into the USB connector and then perform a virus scan for the PC before installing the InstallShield.
Page 106 9. Installing Software Confirm that all modalities are checked as below. If the CEPH feature is not included in the equipment, uncheck the CEPH option. Moreover, click Next. Confirm that the “WidePano” is selected in the CBCT sensor type selection window and click Next.
Page 107 9. Installing Software (Optional) Confirm that the “WideCEPH” is selected in the CEPH sensor type selection window and click Next. 10. Select the default port number: COM2. Select the port number: COM2. The same COM port number should be used between the equipment and PC. 11.
Page 108 9. Installing Software 13. Select the connection option for CBCT modality and click Next to continue. When EasyDent is installed, select EasyDent, when EzDent- i is installed, select SDK. 14. Check the options according to the product specifications. When the AutoSave is checked, the image data acquired saved automatically.
Page 109 9. Installing Software 16. You can check the information entered so far with the Ready to Install window. If necessary, you can modify it by clicking Back. 17. When the information is confirmed, click Install to continue. Smart Plus (PHT-35LHS) Installation Manual...
Page 110 9. Installing Software Installing the DICOM Viewer After completing basic settings, the DICOM Viewer installation will be started. Click Next in the Welcome window. Select “I accept the terms of the license agreement” and click Next. Enter the User Name and clinic and click Next. Smart Plus (PHT-35LHS) Installation Manual...
Page 111 9. Installing Software From the next screen, click Install. Click Finish to exit the wizard. Smart Plus (PHT-35LHS) Installation Manual...
Page 112 9. Installing Software Installing the DirectX After completing the DICOM viewer installation, DirectX® installation will be started. Select “I accept the agreement” in the Welcome window. Click Next to start the installation. Smart Plus (PHT-35LHS) Installation Manual...
Page 113 9. Installing Software Click Finish to exit the wizard. Smart Plus (PHT-35LHS) Installation Manual...
Page 114 9. Installing Software Installing the Frame Grabber (Virtual Serial) <Inform Grabber> After completing the Direct X® installation, Virtual Serial installation will be started. Click Install in the Welcome window. During installation, VA_4x Cap 1.1 installation wizard will appear. Click Install to start the installation.
Page 115 9. Installing Software Click Finish to exit the wizard. Microsoft Visual C++ 2010 x64 Redistributable installation or maintenance window will appear. Select one of the options and click Next to continue the process. Click Finish to exit the Visual C++ 2010 x64 Redistributable installation or maintenance wizard.
Page 116 9. Installing Software <Flectron Grabber> After completing the Direct X® installation, Grabber Driver Setup will be started. Select the language in the installer language window and press the OK button. When the Grabber Driver Setup window appears, click the Next button. Enter the installation location and click the Install button.
Page 117 9. Installing Software The "Installing" window will appear and disappear, and the Completing Grabber Driver Setup window will appear. Choose the Reboot now or I want to reboot later and click the button manually. If an error occurs during installation, it will be displayed in red font color below.
Page 118 9. Installing Software <Leon Grabber> 1. After completing the Direct X® installation, the installation program will be started. Select the language in the installer language select window and press the OK button. 2. Press the V.Grabber’s Install button. 3. The installation is completed and the V.Grabber Installation Program window appears.
Page 119 9. Installing Software Finishing Installation The installation has just been completed. Click Finish and restart the PC. Verifying that All Components are Properly Installed Locate the file: Smart Plus_Install_Log.txt on the desktop. Open it to check the file. You can find out that all components are installed. Go to section 9.5 Setting up the User-specific Information.
Page 120: Setting Up The User-Specific Information
9. Installing Software Setting up the User-specific Information See the corresponding section for set-up instructions, based on the viewer program (EasyDent or EzDent-i (SDK)) installed on the PC. • EasyDent: Refer to Section 9.5.1 when the EasyDent is installed. • EzDent- i: Refer to Section 9.5.2 when the EzDent-i is installed.
Page 121 9. Installing Software Interfacing the EasyDent with Imaging Program (One-time Linking) On the main screen of the EasyDent, click Help  Configuration. Click on the Program tab. Check ‘Select capture mode for Dental CT’ and select ‘Etc.’ from the drop-down list.
Page 122 9. Installing Software Click on the “…” button for the Path and select the Console SW’s executable file. The Path is displayed as shown in the following figure. Smart Plus (PHT-35LHS) Installation Manual...
Page 123 9. Installing Software Check ‘Select capture mode for panorama’ and select ‘Etc.’ from the drop-down list. Click on the “…” button for the Path and select the Console SW’s executable file. Smart Plus (PHT-35LHS) Installation Manual...
Page 124 9. Installing Software The Path is displayed as shown in the following figure. Click Apply. 10. When the following message appears, click OK to restart the program. 11. Re-run the EasyDent program and check that the change has been applied. Smart Plus (PHT-35LHS) Installation Manual...
Page 125 9. Installing Software Creating a new Patient Record For details on this subject, refer to the accompanying EasyDent Manual. Click the Patient icon ( ) on the upper left corner of EasyDent’s main GUI window. Then, the following dialog box will be displayed. Enter the required patient information.
Page 126 When initially executing the imaging program, the registration window will be displayed. Click Next to proceed. Select “I agree to the Vatech Privacy Policy” and click Next. Enter the required information and click Next. For the console PC connected to the internet, go to step 4. And for the console PC not connected to the internet, go to step 5.
Page 127 9. Installing Software <For the Console PC connected to the Internet> Click Finish. <For the Console PC NOT connected to the Internet> Click Download file to download and save the file (HTML type) into a memory device. Execute the file in the memory device from the PC connected to the internet. Click Request verification.
Page 128 9. Installing Software Download auth.Acer file. Copy the downloaded auth. cert file to the console PC. Click the Upload Verification file to upload auth. cert file. Click Next. Click Finish. Smart Plus (PHT-35LHS) Installation Manual...
Page 129 9. Installing Software Initiating the Imaging Program First, click on the patient information in the Patient List, and click on the imaging modality button on the upper left corner of EasyDent’s main window to open the imaging program. The main screen of the selected mode is displayed. From the main screen, you can configure the imaging parameter settings before acquiring an image.
Page 130 9. Installing Software 9.5.2 When the EzDent-i is installed This program must be run in administrator mode. Running the Image Viewer Run the image viewer. On your desktop, double-click the EzDent-i icon. The EzDent-i’s main window is displayed as follows. Smart Plus (PHT-35LHS) Installation Manual...
Page 131 9. Installing Software Interfacing the EzDent-i with Imaging Program (One-time Linking) On the main screen of the EzDent-i, click EzDent-i  Setting. Click Acquisition  Console Program. Smart Plus (PHT-35LHS) Installation Manual...
Page 132 9. Installing Software Make sure that the console program settings are as follows: Console Program Path: C:/VCaptureSW/exe/VCaptureSW.exe  Capture Message: Smart Plus Captured  Patient Information File Path: C:/VCaptureSW/PatientInfo.ini  Click OK and restart the program to apply the settings. Smart Plus (PHT-35LHS) Installation Manual...
Page 133 9. Installing Software Creating a New Patient Record For further details on this subject, refer to the accompanying EzDent-i Manual. Click on the Add Patient button from the PATIENT tab. Enter the required patient information. Chart Number, First Name, and Last Name are required fields that must be filled in.
Page 134 9. Installing Software Initiating the Imaging Program Click the ACQUISITION tab. The imaging mode selection buttons appear. The imaging mode selection buttons in the left menu may appear differently, depending on the equipment’s capacity for acquiring images. Select the imaging mode. Then, the main GUI in the selected imaging mode appears.
Page 135 From the main GUI window, click the settings icon in the upper right corner. Log in the tap will be open by default. On the right side of the screen, select Engineer and type the password ('vatech') and then click Log In. Click on the User tab.
Page 136 9. Installing Software In the Image Label Option, check that the default equipment’s brand name and text size are displayed as shown in the following figure. In the DAP, check that the default DAP Level and DAP Unit are displayed as shown in the following figure.
Page 137 9. Installing Software In the Patient Information Setting, configure the Link Type, File Path, and File Name as shown in the following figure. 10. In the Link Information Setting, configure the Link Type and File Extension as below. Fields When EasyDent is used When EzDent-i is used CT / CR Link Type Default...
Page 138 9. Installing Software 11. Click on the Default tab and configure the user-defined parameters. The default features can be modified according to the user’s requirements. 11. Click Save if changes occurred. Smart Plus (PHT-35LHS) Installation Manual...
Page 139 9. Installing Software Disabling the Packing Mode Smart Plus has a unique feature─packing mode built into the system to prevent the unit from being damaged while shipping and transporting. Since it is in the packing mode through the factory default, the packing mode is required to be disabled at this step for a successful installation.
Page 140 9. Installing Software Enter the command PKEN_0000] to exit the packing mode. Now note that the equipment is out of the packing mode. Use the command PKEN_0001] to re-enter the packing mode. Click Exit and terminate the Control Panel. (Important!) Exit the imaging program (main GUI). Reboot the system for the changes to take effect.
Page 141 9. Installing Software Selecting an Announcement Mode: Music or Beep (Optional) If selecting an announcement between music and beep is necessary, perform the following procedures. Command specifications: Command format: [SPM_MPOP_XXXX] Announcement XXXX Imaging Modes Division Mode 0000 CT/PANO Music Different for each mode 0001 CT/PANO Music...
Page 142 9. Installing Software Finalizing the Parameter Settings Click Exit  Close and terminate the Control Panel. (Important!) Exit the imaging program (main GUI). Smart Plus (PHT-35LHS) Installation Manual...
Page 143: 10. Technical Specifications
10. Technical Specifications 10. Technical Specifications 10.1 Mechanical Specifications Dimensions (unit = mm) With Without CEPH unit CEPH unit view Side view (Wall bracket dimensions) Front view Side view Smart Plus (PHT-35LHS) Installation Manual...
Page 144 10. Technical Specifications Item Description 137 kg (302.0 lbs. – without Base) Without CEPH unit 190 kg (418.9 lbs. – with Base) Weight 162 kg (357.1 lbs. – without Base) With CEPH unit 215 kg (474.0 lbs. – with Base) Without Max.
Page 145: Electrical Specifications
10. Technical Specifications 10.2 Electrical Specifications Item Description Power supply voltage 100 - 240 V ~ Frequency 50 / 60 Hz Power rating 2.0 kVA Tube Voltage (kVp) ± 10 %, Tube Current (mA) ± Accuracy 20 %, Exposure Time (s) ± (5 % + 50 ms) The input line voltage depends on the local electrical distribution system.
Page 146: Environmental Specifications
10. Technical Specifications 10.3 Environmental Specifications Item Description Temperature 10 ~ 35 ℃ During Operation Relative humidity 30 ~ 75 % Atmospheric pressure 860 ~ 1060 hPa Temperature -10 ~ 60 ℃ Transport and Storage Relative humidity 10 ~ 75 % Atmospheric pressure 860 ~ 1060 hPa Smart Plus (PHT-35LHS) Installation Manual...
Page 147: Installing The Warning Lamp And Door Interlock Switch
Appendix Appendix A. Installing the Warning Lamp and Door Interlock Switch Requirement The warning control system shall be connected to the ERB (earth reference bar) of the room that it is associated with. The switching arrangements, location, height, and the number of illuminated warning signs shall be agreed with the local radiation protection advisor (RPA).
Page 148 Appendix Schematic Diagram Components Supplied Smart Plus (PHT-35LHS) Installation Manual...
Page 149 Appendix Procedures <The individual cable length> Signal Cable: 5 m / 198”  Door interlock cable: 5 m / 198”  Warning lamp: 1 m / 40”  Power source cable: 1 m / 40”  Prepare the Warning System Panel (Part No. 28) Install the Warning System Panel at the proper height after taking each cable length into account.
Page 150: Installing The Emergency Stop Switch
Appendix B. Installing the Emergency Stop Switch Install the Emergency Stop Switch on the power cable line.  Install this switch so that it is easy to reach in the emergency case but  cannot be pushed by mistake. The switch shall be a type of mistake-proof. ...
Page 151: Limiting The Column Height
Appendix C. Limiting the Column Height This section explains how to limit the column height within the permissible range. Measure the ceiling height in the X-ray shield room: H ceiling < Removing the column covers > Remove two Fixing Bolts as shown in the figure. Remove the Column Rear-Top Cover as shown in the figure.
Page 152 Appendix Determining the Height Determine the screw height using the following formula. =100 mm – d screw height mm: the minimum desired distance between the ceiling and the top of the equipment  when the column is fully extended. d = H 2306 mm (Example height: The height of the ceiling ceiling...
Page 153 Appendix Adjusting the Screw Height We know the H is 236 mm from the previous example. So, we will move the screw screw height from the default (current) position to the new one. Loosen two bolts halfway (important!). DO NOT unscrew completely the bolt. If not, it could drop into the column and may cause big trouble to retrieve it out.
Page 154: Connecting The 3 Rd Party Exposure Switch (Optional
D. Connecting the 3 party Exposure Switch (Optional) This section explains how to connect the third-party Exposure Switch with the equipment from VATECH. < How to > Cut the Exposure Switch cable provided with the equipment. According to the following schematic diagram, rewire the cables.
Page 155: Checking Pc Bios Settings
Appendix E. Checking PC BIOS Settings < HP PC BIOS Setup > PC Model: HP Z4 PC BIOS default Main Menu Sub1 Menu Sub2 Menu Setup Value Advanced Power Options Runtime Power Management [Disable] Advanced Power Options Idle Power Savings [Normal] Advanced Power Options...
Page 156: Installation Checklist
Appendix F. Installation Checklist 1. General Information: Customer Information about the Equipment Purchaser Name of Clinic or Hospital Address Phone E-Mail Website Dealer Information about the Equipment Seller Name of Dealer Address Phone E-Mail Website A-10 Smart Plus (PHT-35LHS) Installation Manual...
Page 157 Appendix 2. Installation Information: Address of Installation Site Names of Installers Scheduled Date of Installation Date of installation Model Serial No. 3. System Delivery to Site: Did you review and identify the delivery route and method for equipment in advance? Is the freight elevator available? Is the security guard, if any, notified of the installation in advance?
Page 158 Appendix 4. Before Installation: Site Check List Is the room large enough? At minimum, with CEPH unit: 2,044.3 mm (L) x 2,457.5 mm (W) x 2,437.5 mm (H) Without CEPH unit: 2,805.9 mm (L) x 2,457.5 mm (W) x 2,437.5 mm (H) Is the door entrance wider than 800mm (32”)? Is a radiation protection plan in place?
Page 159 Appendix After Opening Boxes Did the installers make sure there are not any scratches or broken surface equipment? Are all accessories and cases included in the box? Have you read the installation manual out in its entirety before starting the installation? Did the installer take pictures after opening the boxes? Did the installer make sure there are not any suspicious holes or scratches on the box after opening?
Page 160 Type: Is the 3 party software installed? If yes, indicate the name(s) and versions. Are they compatible with software from Vatech®? If No, Version: indicate the name(s) and versions. 8. Electrical Requirements: Is the circuit breaker installed and evaluated in the distribution...
Page 161 Appendix 9. Network Configuration: Is a network configured with 1 Gbit/s of CAT5? Is the equipment connected to the network? Is the network installation company identified? What is the TCP/IP address assigned? Address: What is the subnet masking address? Address: Is there a DHCP server? Smart Plus (PHT-35LHS) Installation Manual A-15...
Page 162 Appendix Intentionally left blank A-16 Smart Plus (PHT-35LHS) Installation Manual...
Page 163 No part of this manual may be reproduced, transmitted, or transcribed without the expressed written permission of the manufacturer. We reserve the right to make any alterations that may be required due to technical improvement. For the most current information, contact your VATECH representative. Tel: (+82) 1588-9510 Email: gcs@vatech.co.kr Website: www.vatech.com...
Page 165 www.vatech.com...

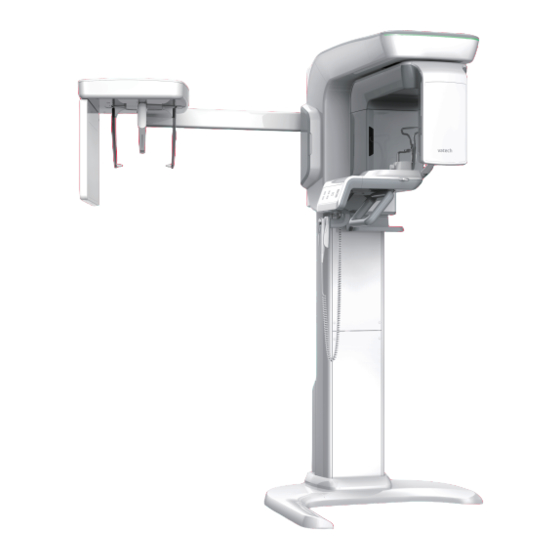

Vatech Smart Plus PHT-35LHS Installation Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Vatech Smart Plus PHT-35LHS

Summary of Contents for Vatech Smart Plus PHT-35LHS

Table of Contents
