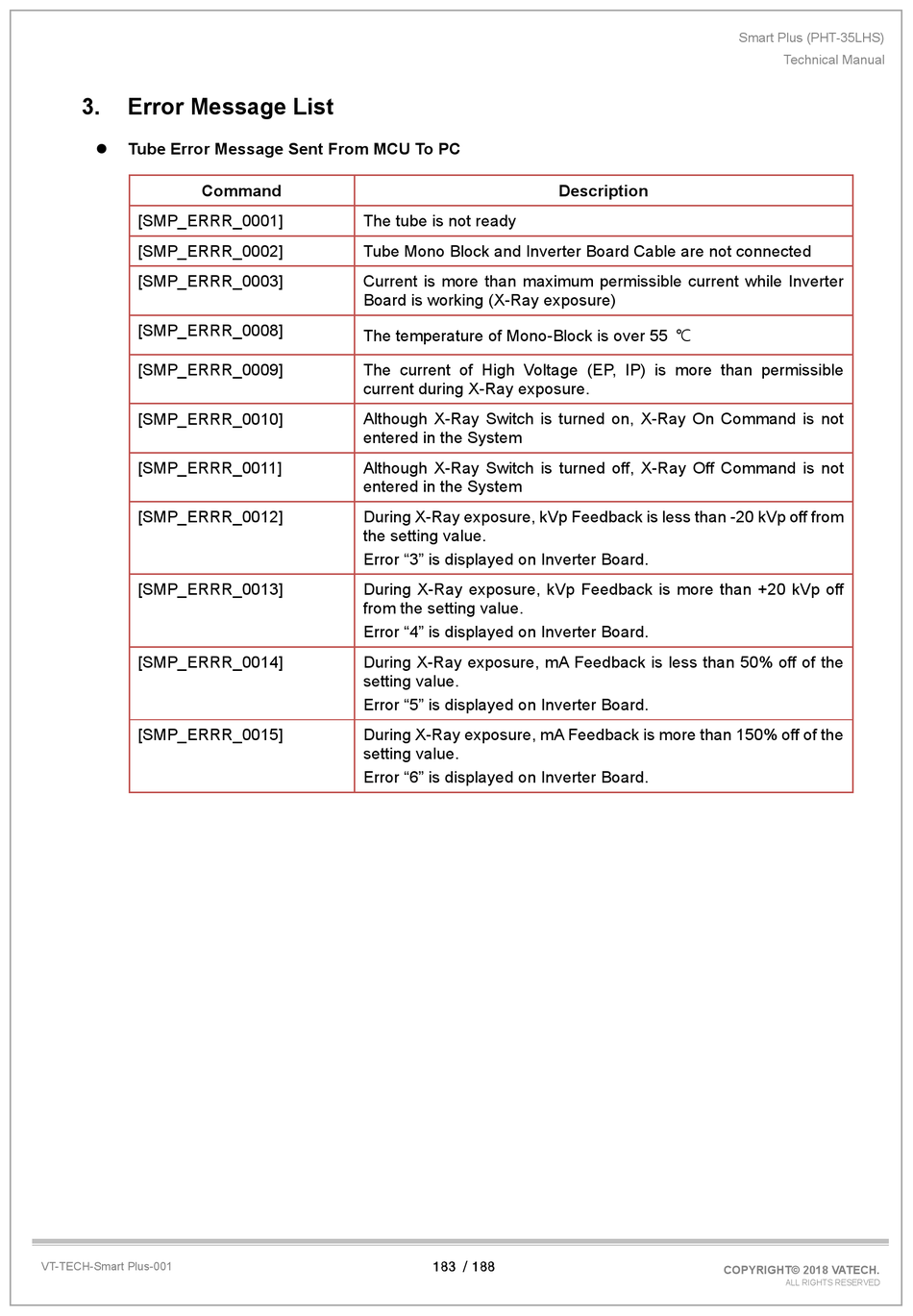

Error Message List

Tube Error Message Sent From MCU To PC

Command
[SMP_ERRR_0001]
[SMP_ERRR_0002]
[SMP_ERRR_0003]
[SMP_ERRR_0008]
[SMP_ERRR_0009]
[SMP_ERRR_0010]
[SMP_ERRR_0011]
[SMP_ERRR_0012]
[SMP_ERRR_0013]
[SMP_ERRR_0014]
[SMP_ERRR_0015]
VT-TECH-Smart Plus-001
The tube is not ready
Tube Mono Block and Inverter Board Cable are not connected
Current is more than maximum permissible current while Inverter
Board is working (X-Ray exposure)
The temperature of Mono-Block is over 55 ℃
The current of High Voltage (EP, IP) is more than permissible
current during X-Ray exposure.
Although X-Ray Switch is turned on, X-Ray On Command is not
entered in the System
Although X-Ray Switch is turned off, X-Ray Off Command is not
entered in the System
During X-Ray exposure, kVp Feedback is less than -20 kVp off from
the setting value.
Error "3" is displayed on Inverter Board.
During X-Ray exposure, kVp Feedback is more than +20 kVp off
from the setting value.
Error "4" is displayed on Inverter Board.
During X-Ray exposure, mA Feedback is less than 50% off of the
setting value.
Error "5" is displayed on Inverter Board.
During X-Ray exposure, mA Feedback is more than 150% off of the
setting value.
Error "6" is displayed on Inverter Board.
