Identification - Grizzly G1014Z Owner's Manual

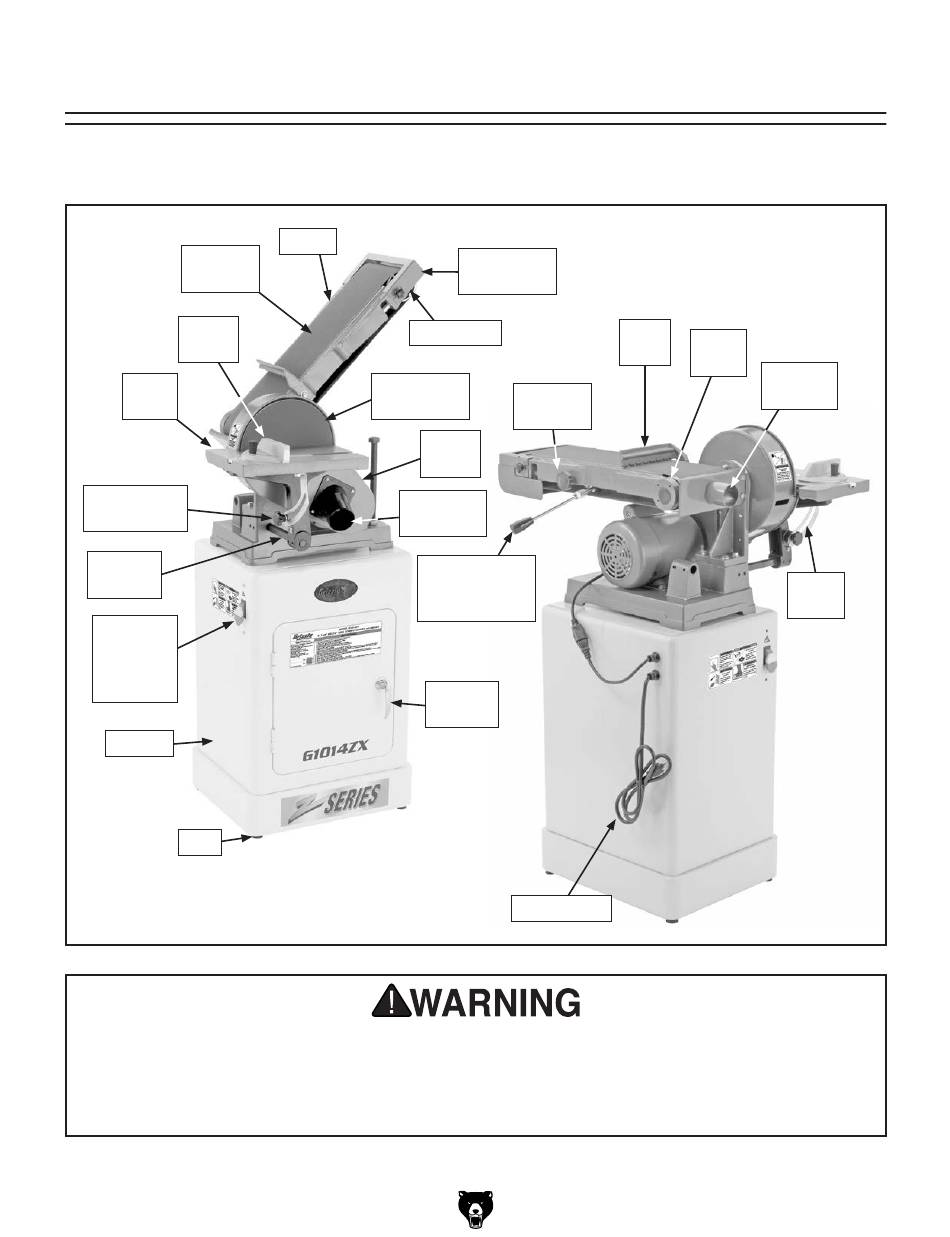

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Sanding
Belt
Miter
Gauge
Work
Table
Angle Scale
Lock Knob
Support
Rod
ON/OFF
Switch w/
Disabling
Key
Cabinet
Foot
For Your Own Safety Read Instruction Manual Before Operating the Sander
a) Wear eye and ear protection.
b) Support workpiece with miter gauge, backstop, or work table.
c) Maintain ⁄ in. maximum clearance between table and sanding belt or disc.
1
16
d) Avoid kickback by sanding in accordance with directional arrows.
Model G1014Z/G1014ZX (Mfd. Since 08/22)

Identification

Platen
Idler Roller
9" Sanding
Disc
Pulley
Cover
2 ⁄ " Dust
1
2
Port
Quick
Release
Tension Lever
Door
Handle
Idler Roller
Guard
Back
Stop
Tracking
Knob
Power Cord
Drive
Roller
2" Dust
Port
Angle
Scale
