23. While looking through the access hole on the
side of the cover, rotate the plate and tighten
each of the set screws to secure the plate to
the drive shaft (see Figure 31).
Set Screws

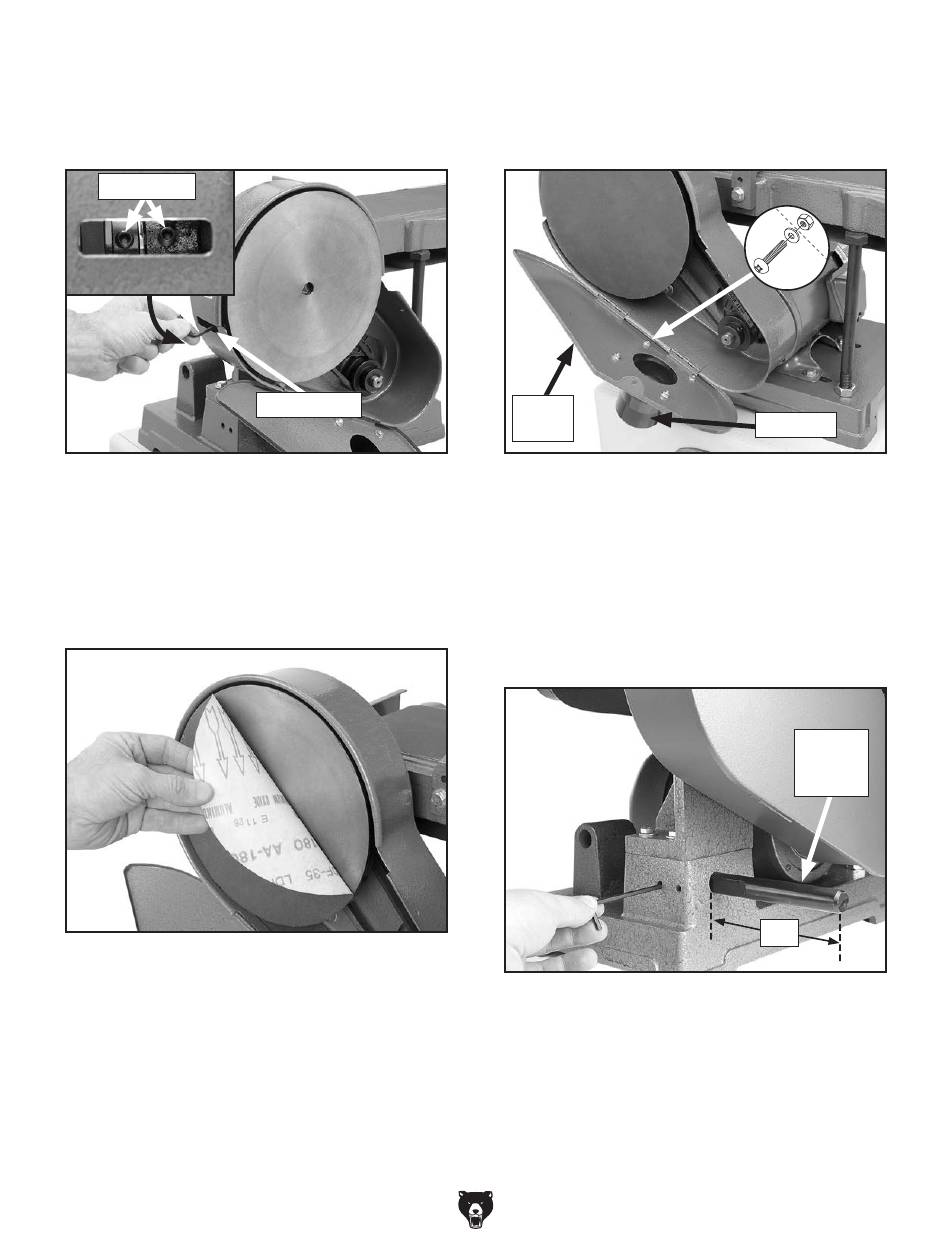

Figure 31. Securing plate to drive shaft.
24. Peel off the backing on the 9" PSA (pres-
sure sensitive adhesive) sanding disc, make
sure the cast iron plate is clean, and install
the sanding disc onto the plate, as shown
in Figure 32. Make sure the sanding disc
adheres completely flat against the plate.
Figure 32. Installing sanding disc onto cast iron
plate.
-24-
Access Hole
25. Install the 2
⁄ " black plastic dust port onto the
1
2
pulley cover with (4) 10-24 x
screws, 10-24 hex nuts, and #10 flat wash-
ers, as shown in Figure 33.
Pulley
Cover
Figure 33. 2 ⁄ " dust port installed.
1
2
26. Secure the pulley cover with the thumb knob.
27. Loosen the (2) set screws on the back of
the base, slide the table support rod into the
base, making sure the flat of the rod faces the
set screws, then tighten the set screws, as
shown in Figure 34. The rod should protrude
about 6 ⁄ " from the side of the base.
1
4
Figure 34. Installing table support rod.
