11. Place a machinist's square on the work table
and against the sanding belt, as shown in
Figure 67, and check for gaps between the
square, belt, and table.

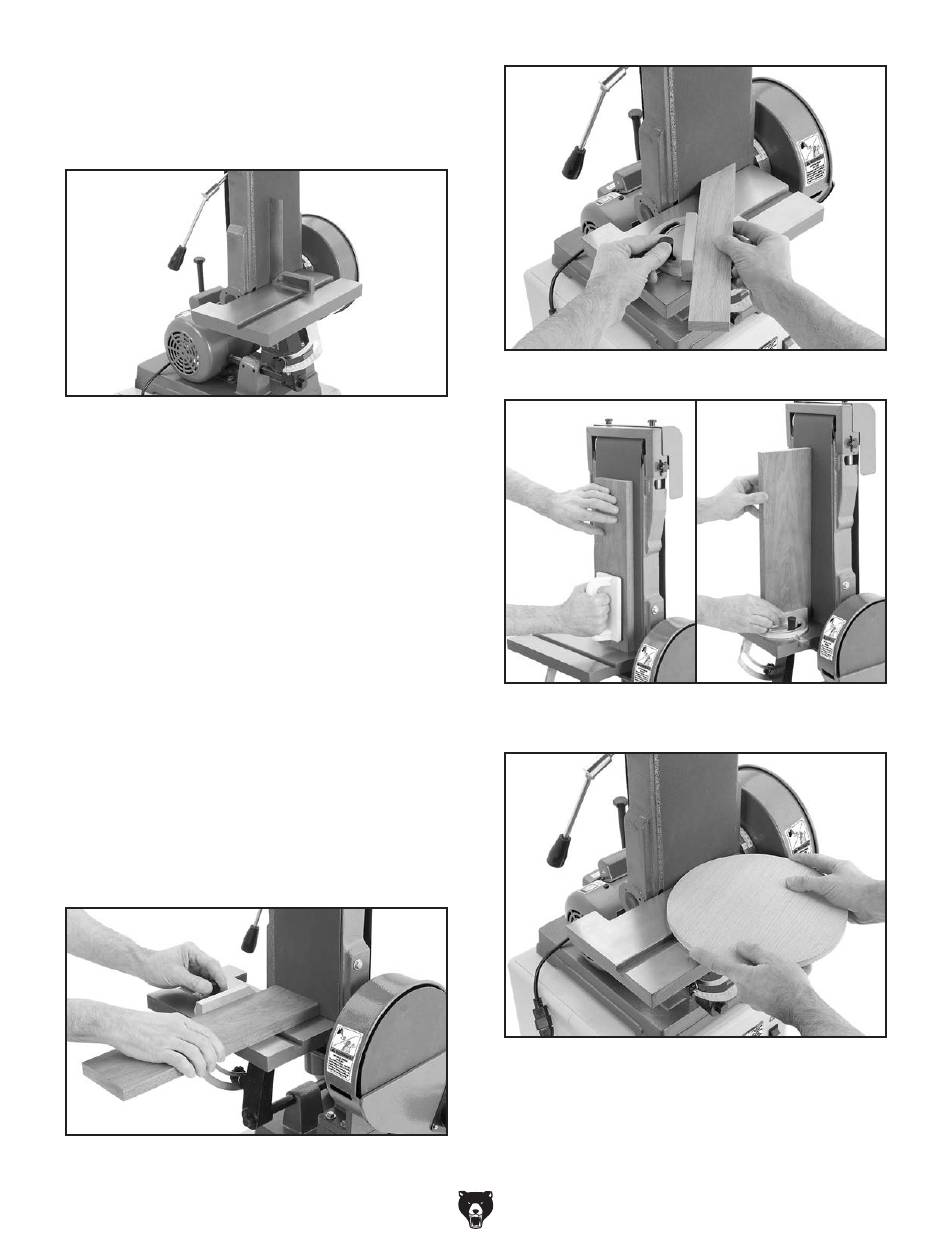

Figure 67. Squaring table and sanding belt.
— If there are any gaps, loosen the table
tilt knob, adjust the table as needed to
remove the gaps, then tighten the knob.
Loosen the angle pointer screw, position
the pointer over the zero mark on the
scale, then tighten the screw.
12. Insert the miter gauge into the left side of the
miter slot.
Performing Vertical Sanding
1.
Adjust the angles of the work table and miter
gauge for your operation.
2.
Place the workpiece on the table and firmly
against the miter gauge.
3. Slowly and with light pressure, move the
workpiece into the left side of the sanding
belt. See Figures 68–71 for examples of
horizontal belt sanding.
Figure 68. Example of end grain sanding.
-38-
Figure 69. Example of vertical miter sanding.
Figure 70. Example of vertical face and edge
sanding.
Figure 71. Example of sanding round workpiece
in vertical position.
Model G1014Z/G1014ZX (Mfd. Since 08/22)
