MOTOR (Prewired 110V)
Ground
MOTOR (Wired 220V)
Ground
Ground
Neutral
Hot
Ground
Hot
Hot
6-15 PLUG
(As Recommended)
Model G1014Z/G1014ZX (Mfd. Since 08/22)

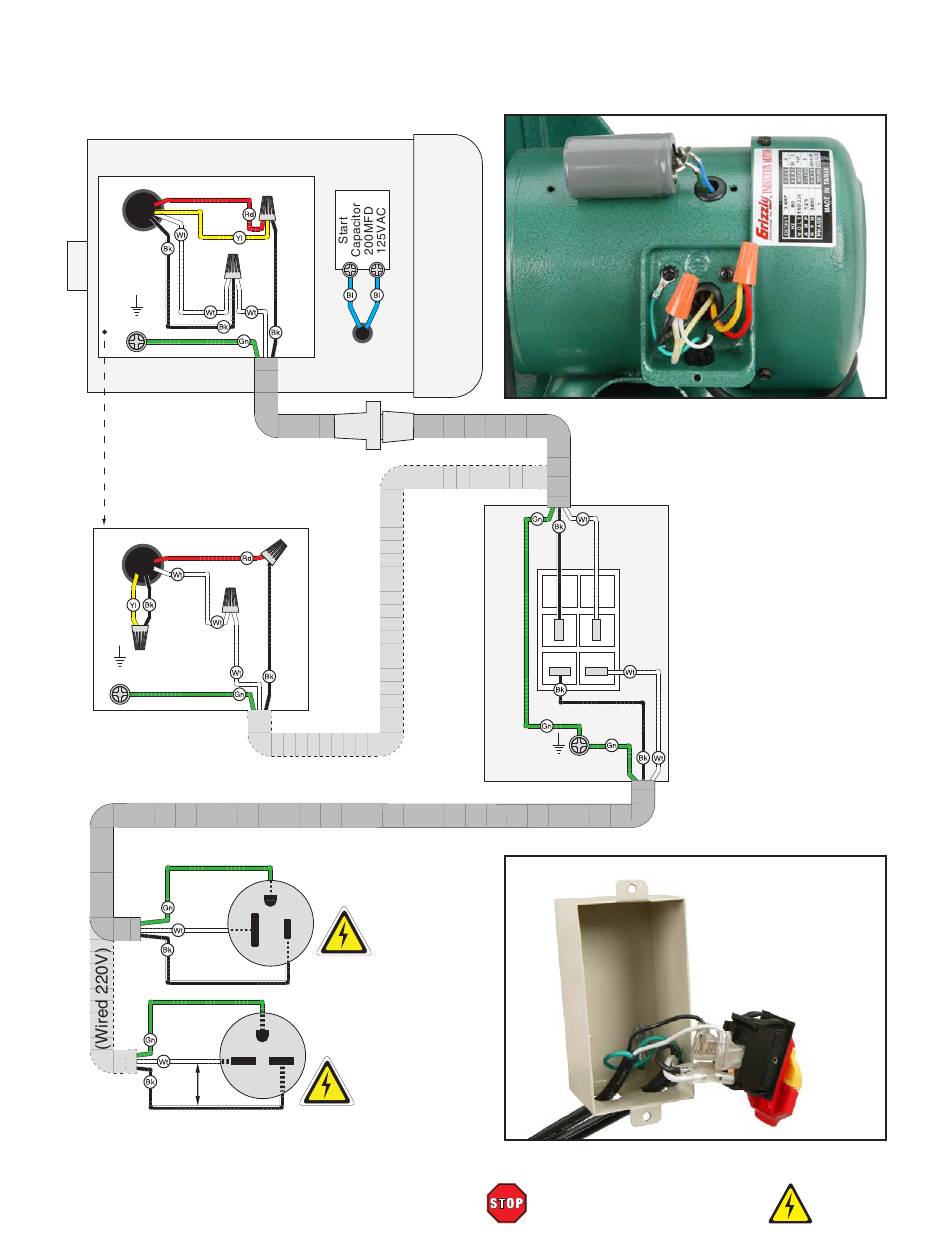

G1014ZX Wiring Diagram
(Wired 220V)
5-15 PLUG
(Included)
110V
G
220V
Figure 93 G1014ZX motor wiring.
3
6
PADDLE SWITCH
2
5
1
4
(viewed from behind)
Ground
Figure 94. G1014ZX switch wiring.
READ ELECTRICAL SAFETY
ON PAGE 51!
KEDU HY18
-53-
