Anchoring to Floor

Number of Mounting Holes ............................. 4
Diameter of Mounting Hardware .................
We recommend mounting the Model G1014Z
to the floor. Use machine mounts on the Model
G1014ZX because the mounting holes cannot be
accessed through the cabinet.
Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.
If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect-
ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.
If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we rec-
ommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.
Anchoring to Concrete Floors
Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con-
crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.
Machine Base
Concrete

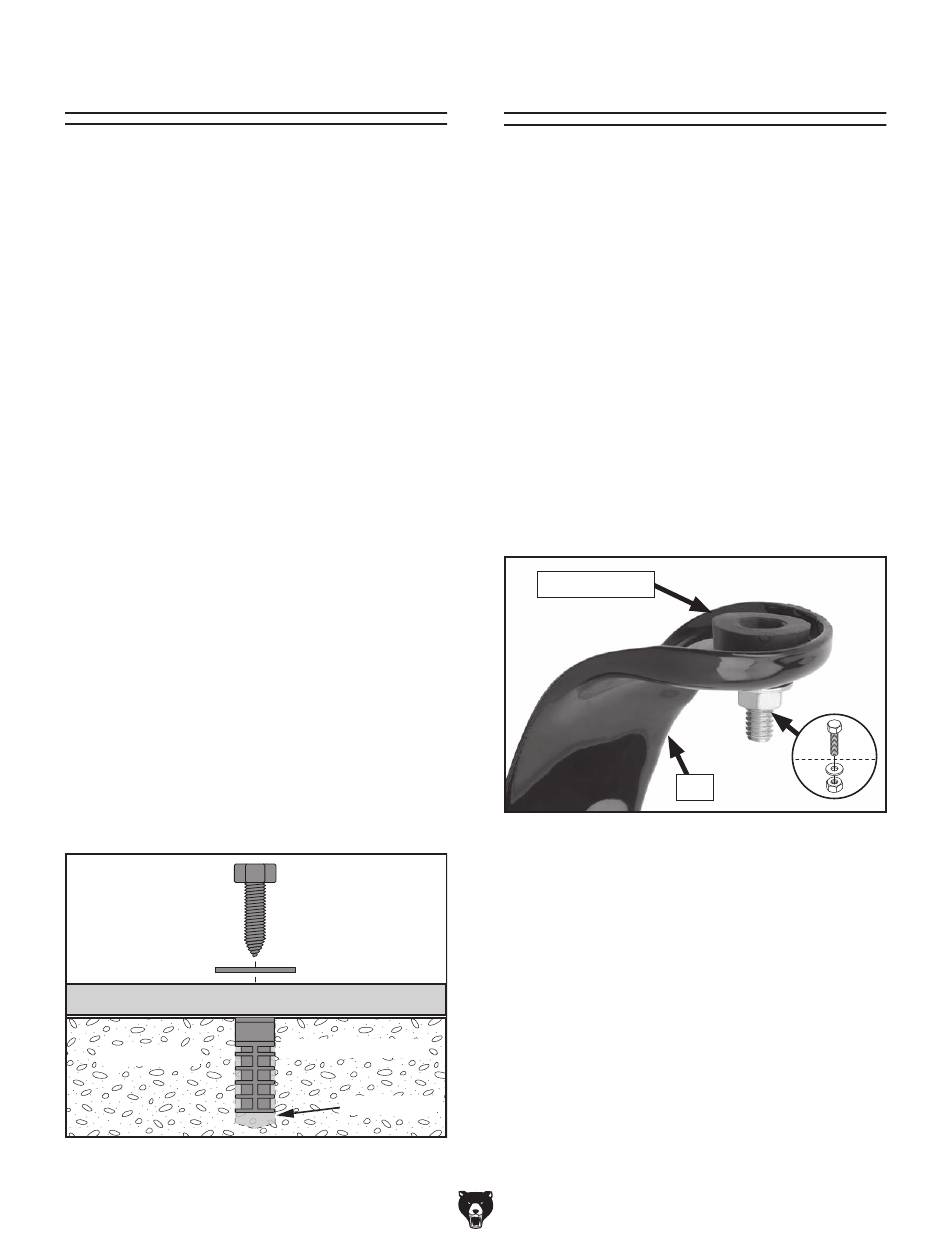

Figure 16. Popular method for anchoring
machinery to a concrete floor.
-20-
⁄ "
5
16
Lag Screw
Flat Washer
Lag Shield Anchor
Drilled Hole

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to Needed for Setup and gather
all listed items. To ensure the assembly process
goes smoothly, first clean any parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
For the Model G1014Z, begin assembly with Step
1. For the Model G1014ZX, begin assembly with
Step 11.
To assemble machine:
1. Insert a ⁄ "-18 x 1" hex bolt through bottom
5
16
of rubber foot, then insert foot into bottom
of leg and fasten it finger tight with
hex nut and ⁄ " flat washer, as shown in
5
16
Figure 17.
Rubber Foot
Leg
Figure 17. Foot fastened to bottom of a leg.
2. Repeat Step 1 to install remaining feet on the
other (3) legs.
3.
Fasten (1) long upper and long lower brace
to (2) stand legs with (8)
bolts, ⁄ "-18 hex nuts, and
5
16
as shown in Figure 18. Finger tighten the
fasteners for now.
Model G1014Z/G1014ZX (Mfd. Since 08/22)
⁄ "-18
5
16
⁄ "-18 x ⁄ " carriage
5 1
16 2
⁄ " flat washers,
5
16
