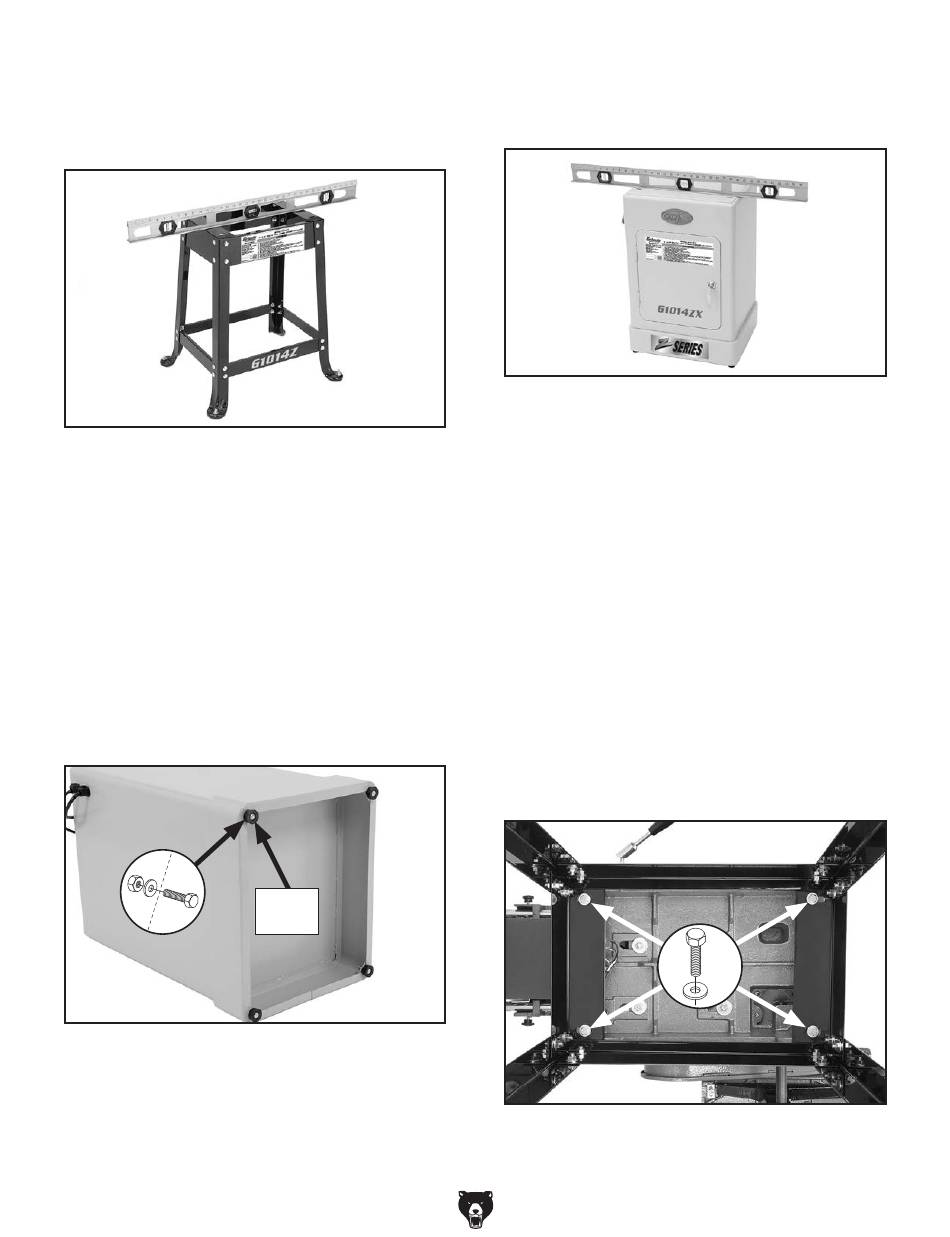

9. Place a level on top of the stand (see Figure
22) and adjust the stand if needed by shim-
ming the feet so it is level from front-to-back
and side-to-side.
Figure 22. Leveling stand.
10. Proceed to Step 16.
11. Place the cabinet flat on its side on a flat,
protected surface, but do not lay it down on
the switch or door handle.
12. Insert a
⁄ "-18 x 1" hex bolt through the
5
16
bottom of each of the four rubber feet, then
insert the hex bolt on each foot into the
mounting holes on the bottom of the cabinet.
13. Fasten each foot with a
⁄ " flat washer (see Figure 23).
5
16
x 4
Figure 23. Feet installed onto bottom of cabinet.
14. Place the stand upright on its feet, then place
the shelf in the cabinet.
-22-
⁄ "-18 hex nut and
5
16
Foot
(1 of 4)
15. Place a level on top of the cabinet (see
Figure 24) and adjust it level from front-to-
back and side-to-side by shimming it.
Figure 24. Leveling cabinet.
16. With the help of an assistant, lift the sanding
unit onto the stand (G1014Z) or the cabinet
(G1014ZX), and align the mounting holes in
the sander unit and the stand or cabinet.
Note: To access the top mounting holes
inside the G1014ZX cabinet stand, open the
front door.
Tip: Insert the end of the included 4mm hex
wrench through the mounting holes in the
sanding unit and the stand or cabinet, then
jiggle the wrench back and forth to align the
mounting holes.
17. Secure the sanding unit to the stand or cabi-
net with (4) ⁄ "-18 x
5
16
washers, as shown in Figures 25–26.
Figure 25. G1014Z sander fastened to stand
(view from underneath stand).
