Housing F12: standard, complete pre-mounted, incl. nameplate, cable gland and Teflon filter
543 120 - 0022 G ½" cable gland
543 120 - 0023 NPT ½" cable gland
543 120 - 0024 M20 x 1.5 PA cable gland
5201 3409 M20 x 1.5 metal cable gland (not for lid with sight glas)
5200 1992 M12 PROFIBUS PA plug
5200 8556 7/8 UNC Fieldbus Foundation plug
5201 3348 G ½" cable gland, 4 wire
5201 3349 NPT ½" cable gland, 4 wire
5201 3350 4 wire, M20 x 1.5 PA cable gland
5201 3351 4 wire, M20 x 1.5 metal cable gland (not for lid with sight glas)
C
O-ring
E N E N
D R D R
M I M I E S E S
O rd O rd C R C R
S + S +
e r e r
O P O P
S e S e C o C o
d e : d e :
r. -N r. -N I L O I L O
o .: o .:
M e M e
s s b s s b
M e M e e re e re
a s u a s u
ic h ic h
ri n g ri n g
ra n ra n
g e g e
U 1 U 1
m a
6 .. .3 6 .. .3 x . 2
4 .. .2 4 .. .2
6 V 6 V
0 m 0 m
D C D C
A A
B
Stop screw
O-ring
86
9.4

Spare parts

Note!
You can order spare parts directly from your E+H service organization by giving the
serial number which is printed on the measuring transducer nameplate (see page 6 ff.).
The corresponding spare part number also appears on each spare part. Installation
instructions are given on the instruction card that is also delivered.

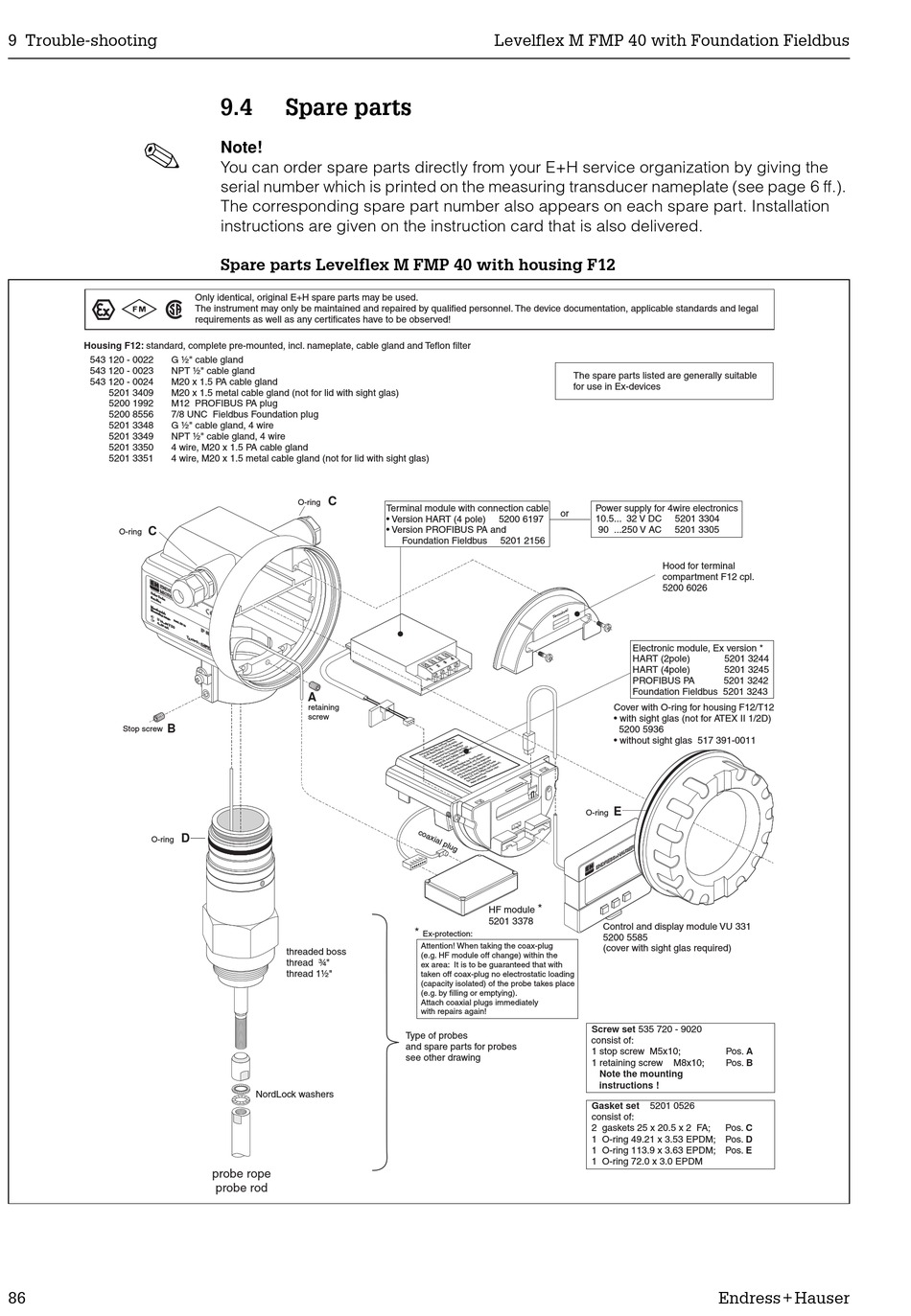

Spare parts Levelflex M FMP 40 with housing F12
Only identical, original E+H spare parts may be used.
The instrument may only be maintained and repaired by qualified personnel. The device documentation, applicable standards and legal
requirements as well as any certificates have to be observed!
C
O-ring
H A H A
U S U S
T I T I E R E R
I I
0 m
I P I P
6 5 6 5
T T
A A > 7 0 > 7 0
° C ° C
: :
t > 8 t > 8
5 °C 5 °C
A
retaining
screw
D
threaded boss
thread ¾"
thread 1½"
NordLock washers
probe rope
probe rod
Levelflex M FMP 40 with Foundation Fieldbus
Terminal module with connection cable
• Version HART (4 pole) 5200 6197
• Version PROFIBUS PA and
Foundation Fieldbus 5201 2156
r m
T e
*
HF module
5201 3378
*
Ex-protection:
Attention! When taking the coax-plug
(e.g. HF module off change) within the
ex area: It is to be guaranteed that with
taken off coax-plug no electrostatic loading
(capacity isolated) of the probe takes place
(e.g. by filling or emptying).
Attach coaxial plugs immediately
with repairs again!
Type of probes
and spare parts for probes
see other drawing
The spare parts listed are generally suitable
for use in Ex-devices
Power supply for 4wire electronics
or
10.5... 32 V DC 5201 3304
90 ...250 V AC 5201 3305
Hood for terminal
compartment F12 cpl.
5200 6026
l
in a
Electronic module, Ex version *
HART (2pole) 5201 3244
HART (4pole) 5201 3245
PROFIBUS PA 5201 3242
Foundation Fieldbus 5201 3243
Cover with O-ring for housing F12/T12
• with sight glas (not for ATEX II 1/2D)
5200 5936
• without sight glas 517 391-0011
E
O-ring
E R
U S
H A
S +
E S
D R
E N
Control and display module VU 331
5200 5585
(cover with sight glas required)
Screw set 535 720 - 9020
consist of:
1 stop screw M5x10; Pos.
1 retaining screw M8x10; Pos.
Note the mounting
instructions !
Gasket set 5201 0526
consist of:
2 gaskets 25 x 20.5 x 2 FA; Pos.
1 O-ring 49.21 x 3.53 EPDM; Pos.
1 O-ring 113.9 x 3.63 EPDM; Pos.
1 O-ring 72.0 x 3.0 EPDM
