Levelflex M FMP 40 with Foundation Fieldbus
Endress+Hauser
6.7

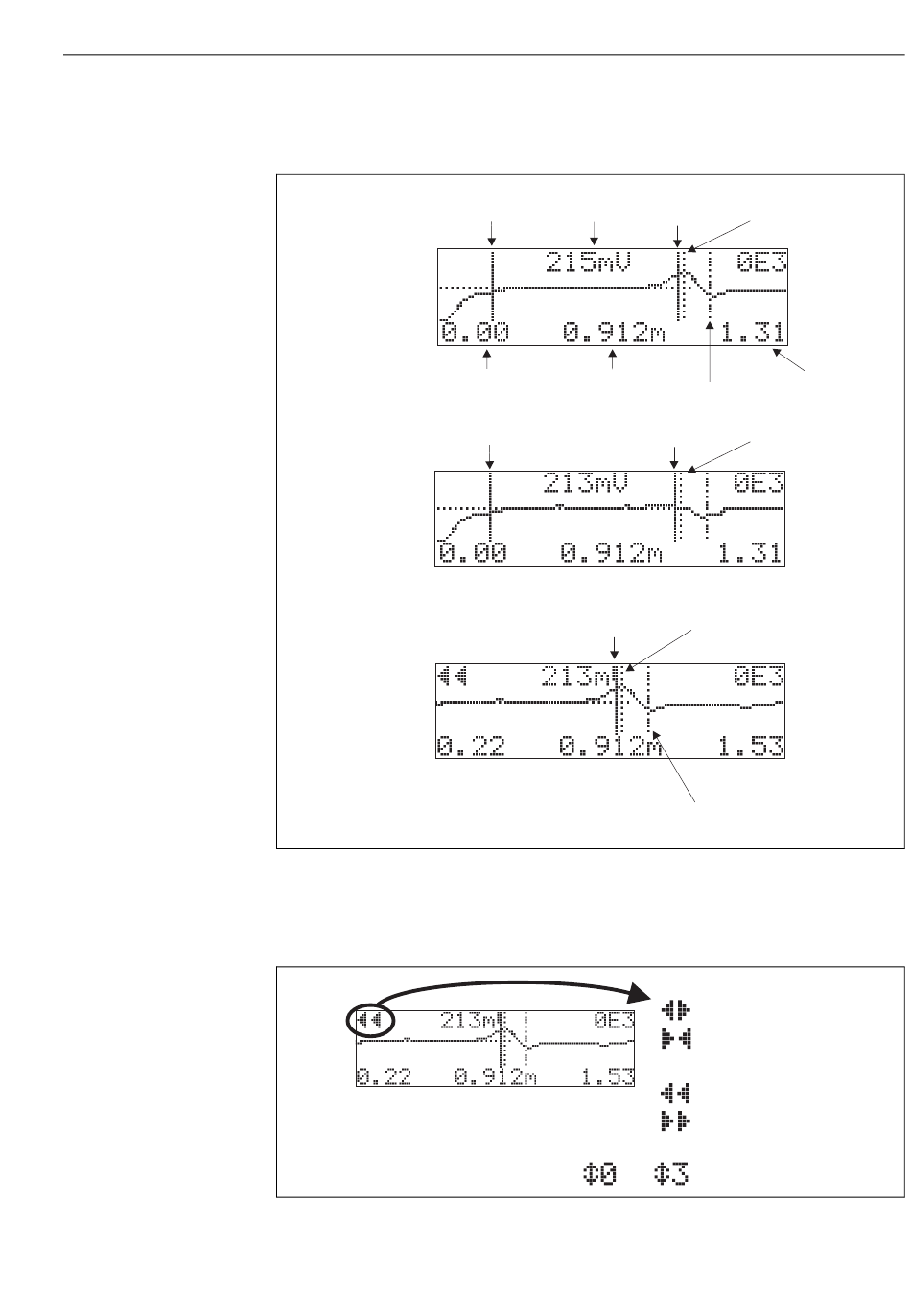

Function "envelope curve display" (0E3)

You can obtain the following information from the envelope curve display in this function:
envelope curve
minimum distance
mapping
substracted signal
Navigation in the envelope curve display
Using navigation, the envelope curve can be scaled horizontally and vertically and
shifted to the left or the right. The active navigation mode is indicated by a symbol in the
top left hand corner of the display.
quality of
full calibr. evaluated echo
distance of
of the plot evaluated echo
full calibr.
empty calibr.
...
6 Commissioning
evaluated echo
empty calibr. is marked
maximum distance
of the plot
probe length
level echo
empty calibr.
level echo
probe length
Horizontal Zoom mode:
- h orizontal zoom in
- horizontal zoom out
Move mode:
- m oved to the left
- moved to the right
Vertical Zoom mode:
- vertical zoom (4 steps)
