Levelflex M FMP 40 with Foundation Fieldbus
wall
94
pipe
Endress+Hauser

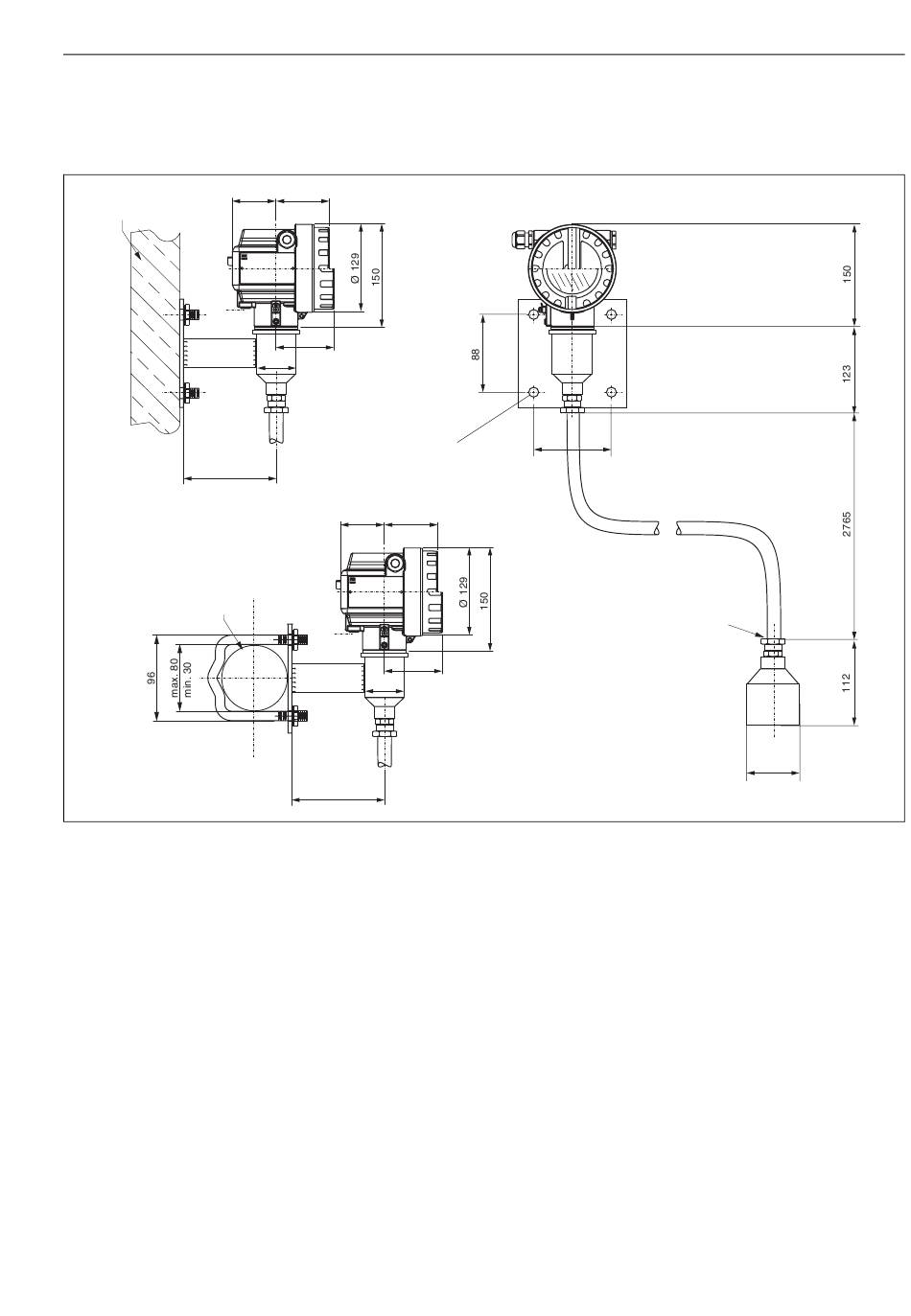

Installation with separate housing
• Follow installation instructions on Page 14 ff..
• Mount housing on a wall or pipe as shown in the diagram.
65 78
ENDRESS+HAUSER
Levelflex M
85
52
65 78
ENDRESS+HAUSER
Levelflex M
85
52
94
The separate housing is designed for use at high environmental temperatures at the
mounting location of the sensor. The max. measuring range is reduced to 30 m/1181".
The version with separate housing consists of the probe, a connecting cable and the
housing. If they are ordered as a set, they are assembled on delivery.
1) The protective hose can not be dismantled at this point.
88
4 x Ø 8,5
3 Mounting
1)
Ø 76
27
