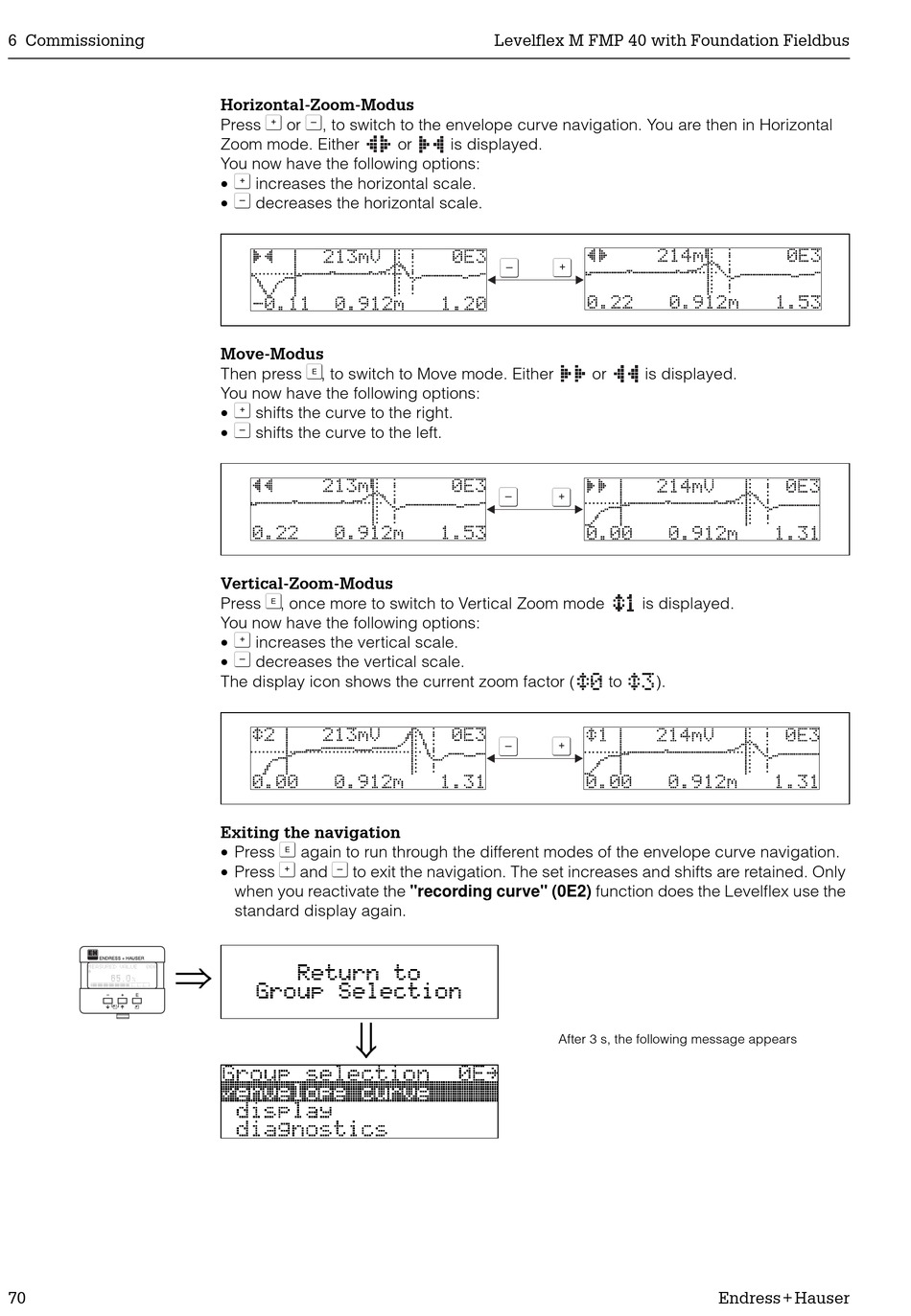

Endress+Hauser Fieldbus levelflex M FMP 40 Operating Instructions Manual page 70

6 Commissioning
⇒
70
Horizontal-Zoom-Modus
O S
Press or , to switch to the envelope curve navigation. You are then in Horizontal
Zoom mode. Either
You now have the following options:
• O
increases the horizontal scale.
•
S
decreases the horizontal scale.
Move-Modus
F
Then press , to switch to Move mode. Either
You now have the following options:
•
O
shifts the curve to the right.
•
S
shifts the curve to the left.
Vertical-Zoom-Modus
F
Press , once more to switch to Vertical Zoom mode
You now have the following options:
•
O
increases the vertical scale.
• S
decreases the vertical scale.
The display icon shows the current zoom factor (
Exiting the navigation
• Press
F
again to run through the different modes of the envelope curve navigation.
• Press O S
and to exit the navigation. The set increases and shifts are retained. Only
when you reactivate the "recording curve" (0E2) function does the Levelflex use the
standard display again.
⇓
Levelflex M FMP 40 with Foundation Fieldbus
or is displayed.
S O
S
O
S O
After 3 s, the following message appears
or is displayed.
is displayed.
to ).
