3 Mounting
F12 or T12 housing
F12 or T12 housing
10
3
Mounting
3.1

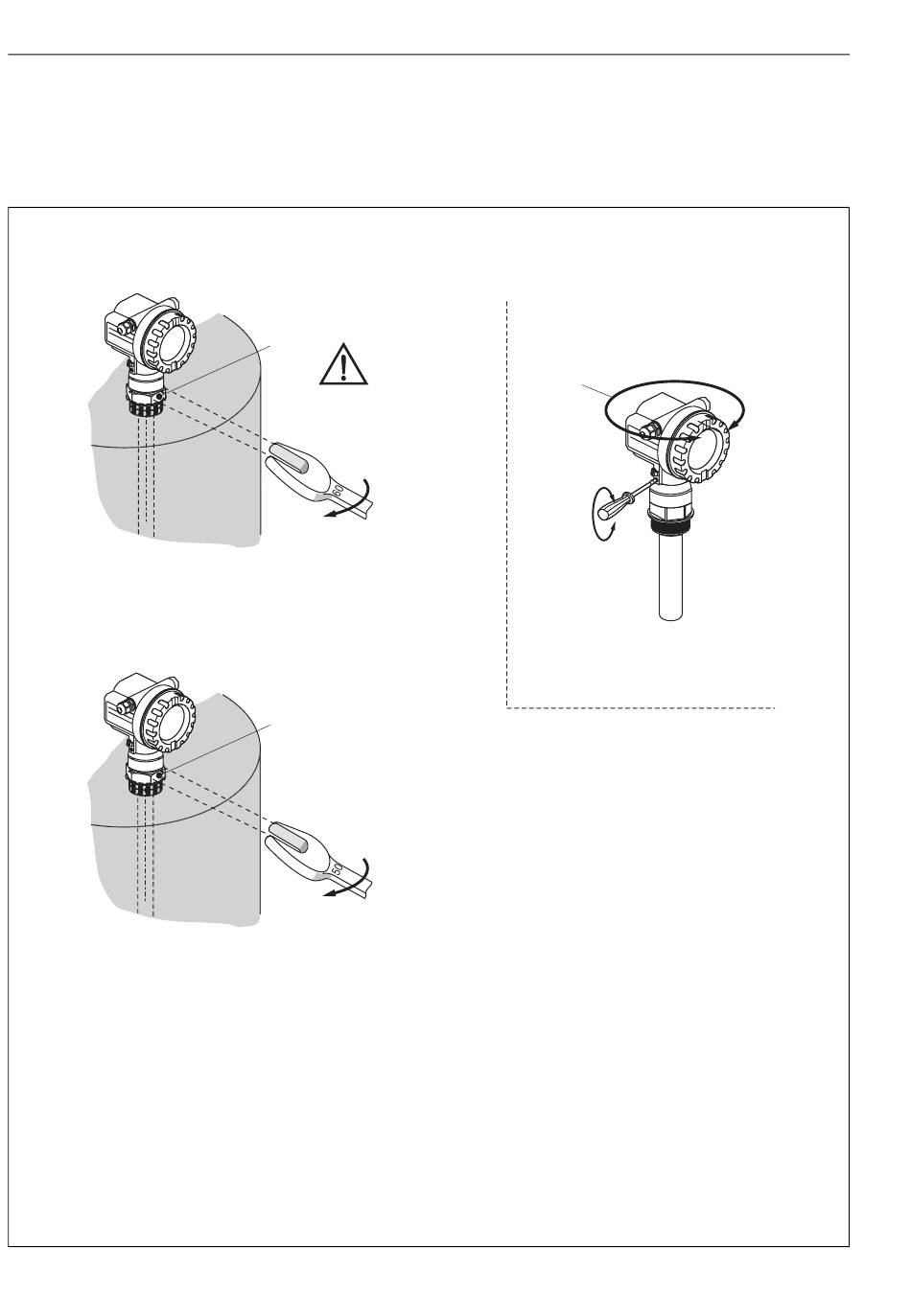

Quick installation guide
½
1 "
Caution!
Use only the
threaded boss ???
AF 60
max. torque
20 Nm
¾"
AF 50
max. torque
5 Nm
Levelflex M FMP 40 with Foundation Fieldbus
Turn housing
The housing can be turned 350°
in order to simplify access to the
display and the terminal compartment
F12 housing
2
3
1
Endress+Hauser
