5.5.2 Hardware settings

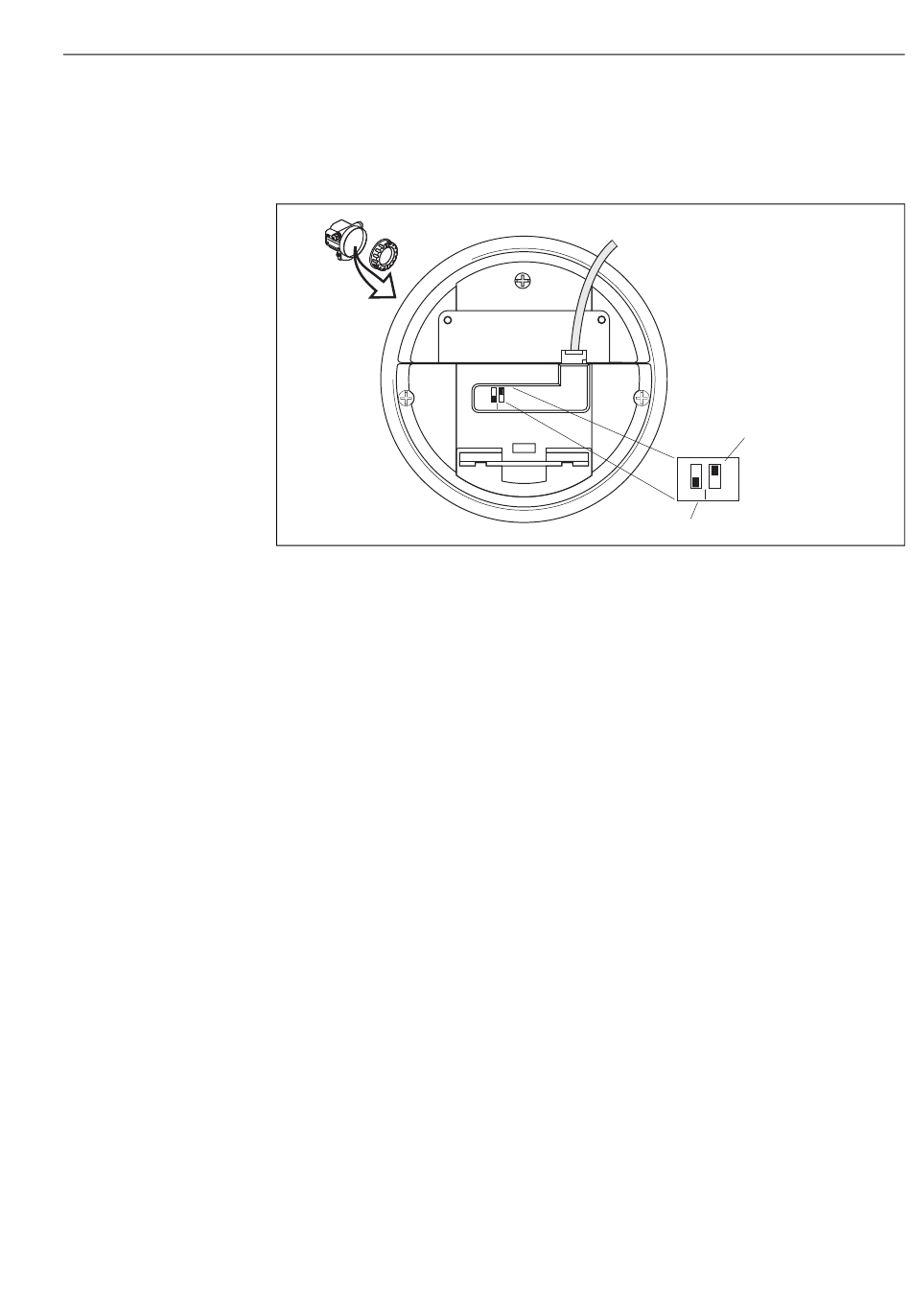

A DIP-switch in the connection compartment of the Levelflex M controls allows the write
protection and simulation functions to be set via hardware.
• If "SIM" is switched off, the simulation function is not accesible in the configuration tool.
• If "WP" is switched on, parameter access is disabled.
EN EN DR DR
Orde Orde MIC MIC RO RO ES ES S+ S+
Ser.- Ser.- r Cod r Cod e: e: PIL PIL HA HA US US
No.: No.: OT OT II II ER ER
Mes Mes
Mea Mea sber surin surin sber eich eich
g rang g rang
U 16... 4...2 4...2 U 16... e e max max . 20 . 20
36 0 mA 0 mA 36 V DC V DC m m
IP IP 65 65
T T
A A >70° >70° C : C :
t >85° t >85°
C C
Device identification
Foundation Fieldbus identifies the device by its identification code and automatically
allocates an appropriate field address. There is no separate hardware switch for this
purpose.
on
off
SIM WP
5 Operation
default settings:
write protection OFF
simulation ON (i.e. simulation is
allowed in the configuration tool)
write protection
on
off
SIM WP
simulation
