3.4.4 Installation in bulk solid silos
Tensile load
Bulk solids exert tensile forces on rope probes whose height increases with::
• the length of the probe, i.e. max. cover,
• the bulk density of the product,
• the silo diameter and
• the diameter of the probe rope

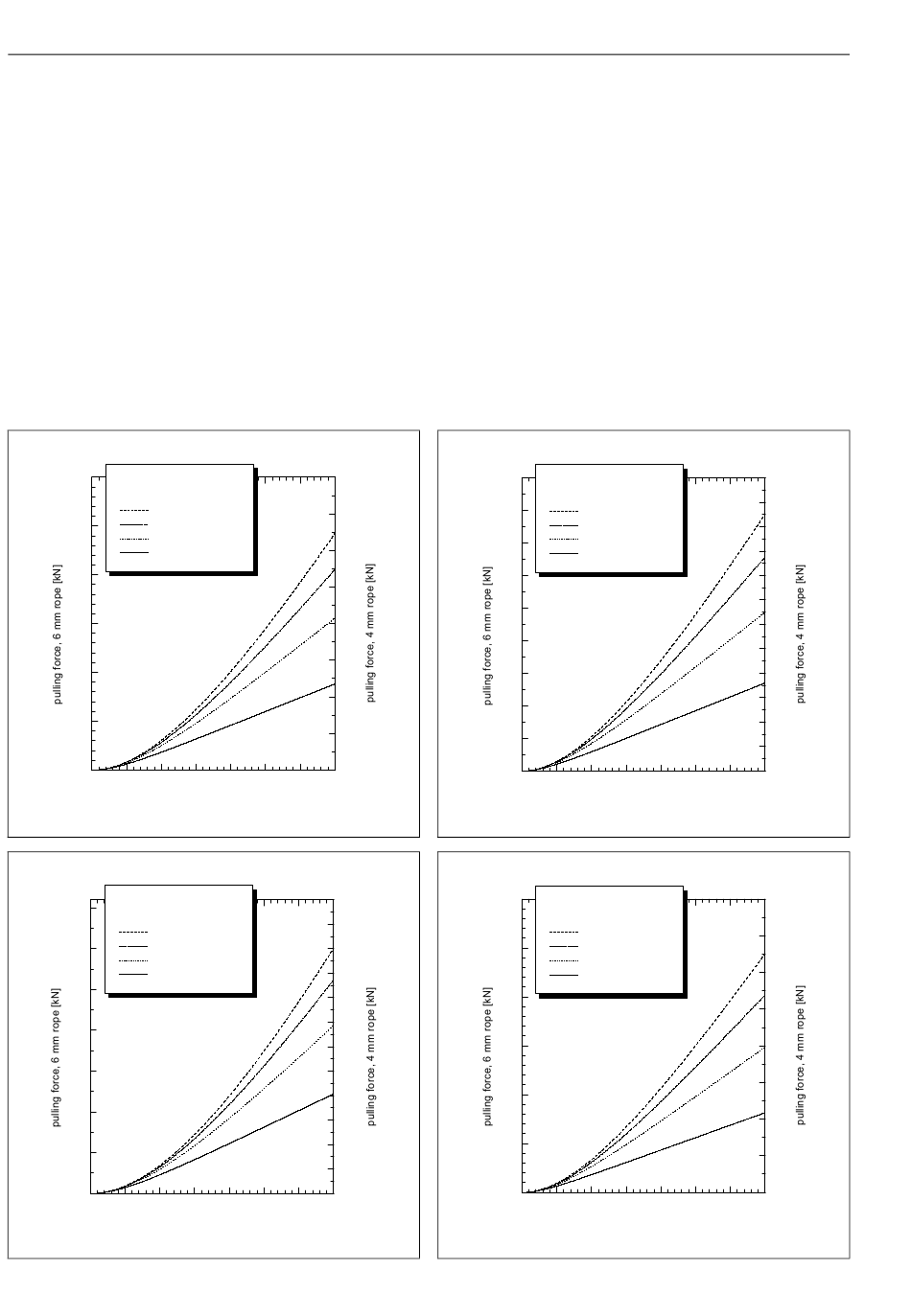

The following diagrams show typical loads for frequently occurring bulk solids as
reference values. The calculation is performed for the following conditions:
• Suspended probe (probe end not fixed at the bottom)
• Free-flowing bulk solid, i.e. mass flow. A calculation for core flow is not possible.
In the event of collapsing cornices, considerably higher loads can occur.
• The specification for tensile forces contains the safety factor 2, which compensates
for the normal fluctuation range in pourable bulk solids.
