Levelflex M FMP 40 with Foundation Fieldbus
Endress+Hauser

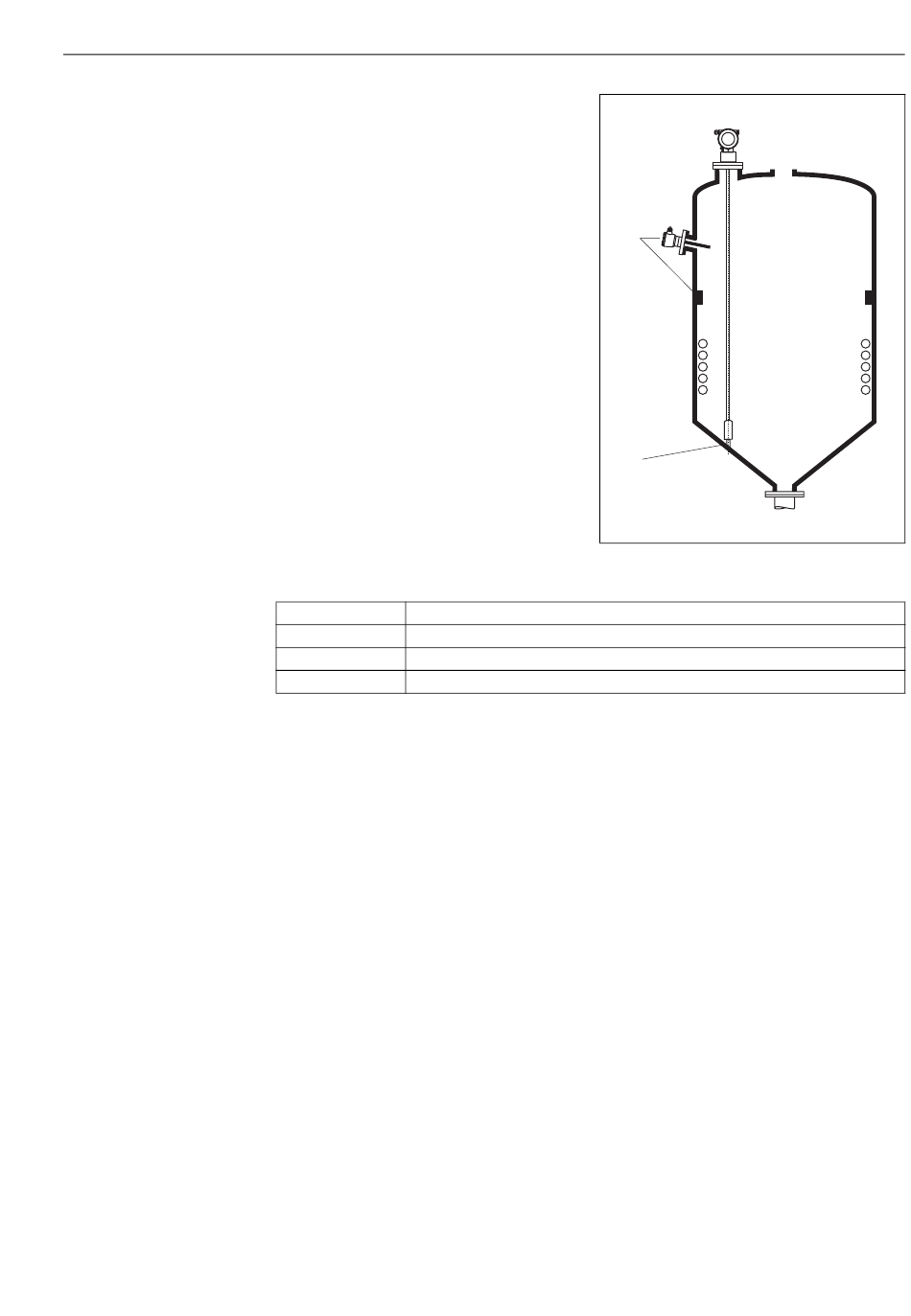

Other installations
• Select the mounting location such that
the distance to internals (5) (e.g. limit
switch, struts) > is 300 mm over the
entire length of the probe, also during
operation.
• Probe must within the measuring span
not touch any internals during operation.
If necessary: when using rope probes
the probe end (4) may be fixed to ensure
that (see page 23)!.
Optimization options
• Interference echo suppression:
Measurement can be optimised by
electronically tuning out interference
echoes.
Minimum distance B of the probe to the container wall:
Wall
Metal 100 mm for smooth walls
Plastic 100 mm, min. 300 mm to metallic components outside of the tank
Concrete 0.5 m/20", otherwise the max. possible measuring range is reduced
Distance to protruding internals min. 300 mm.
5
4
min. distance B
3 Mounting
