Levelflex M FMP 40 with Foundation Fieldbus
!
Endress+Hauser
6.8

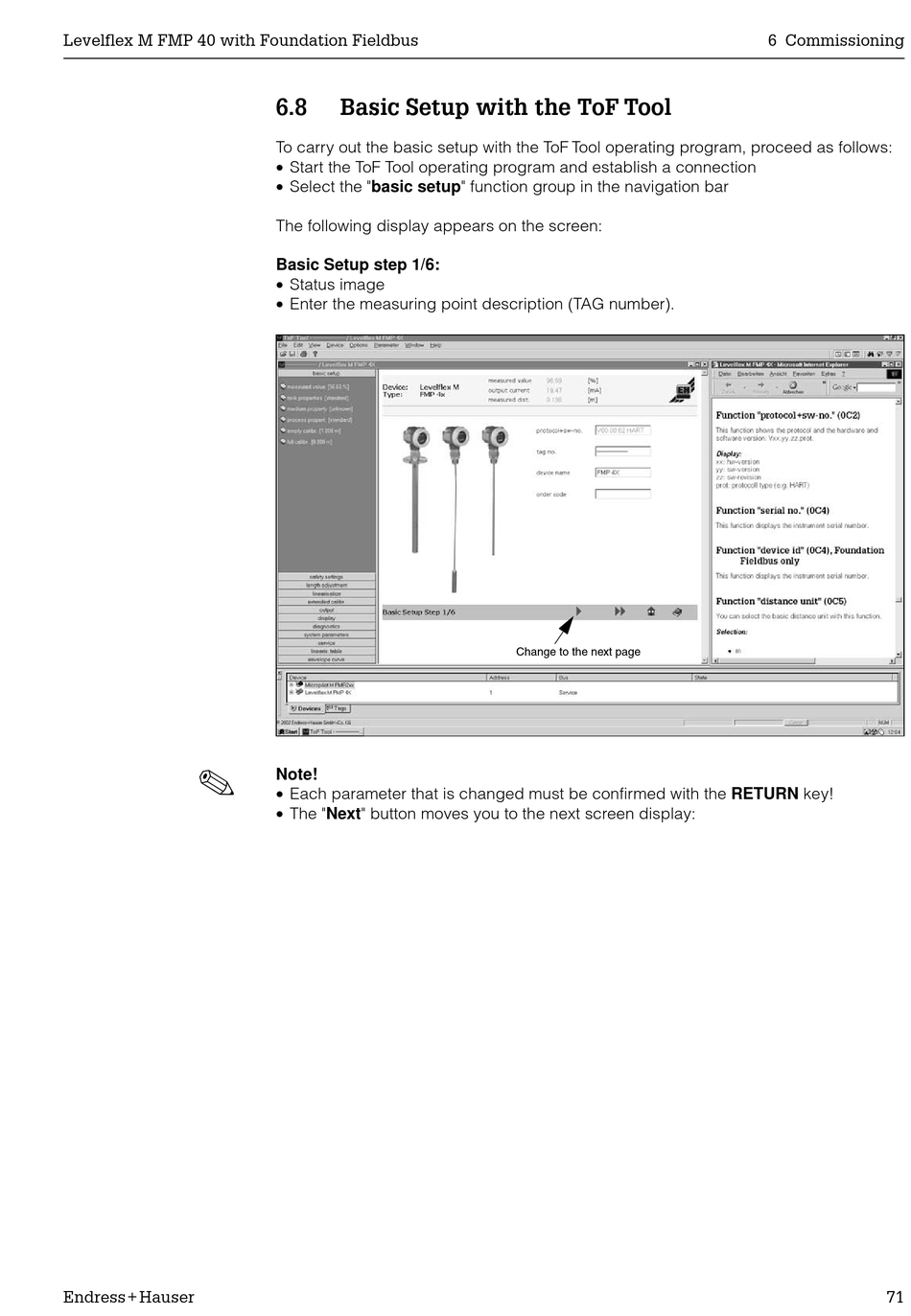

Basic Setup with the ToF Tool

To carry out the basic setup with the ToF Tool operating program, proceed as follows:
• Start the ToF Tool operating program and establish a connection
• Select the "basic setup" function group in the navigation bar
The following display appears on the screen:
Basic Setup step 1/6:
• Status image
• Enter the measuring point description (TAG number).
Note!
• Each parameter that is changed must be confirmed with the RETURN key!
• The "Next" button moves you to the next screen display:
Change to the next page
6 Commissioning
71
