3 Mounting
26

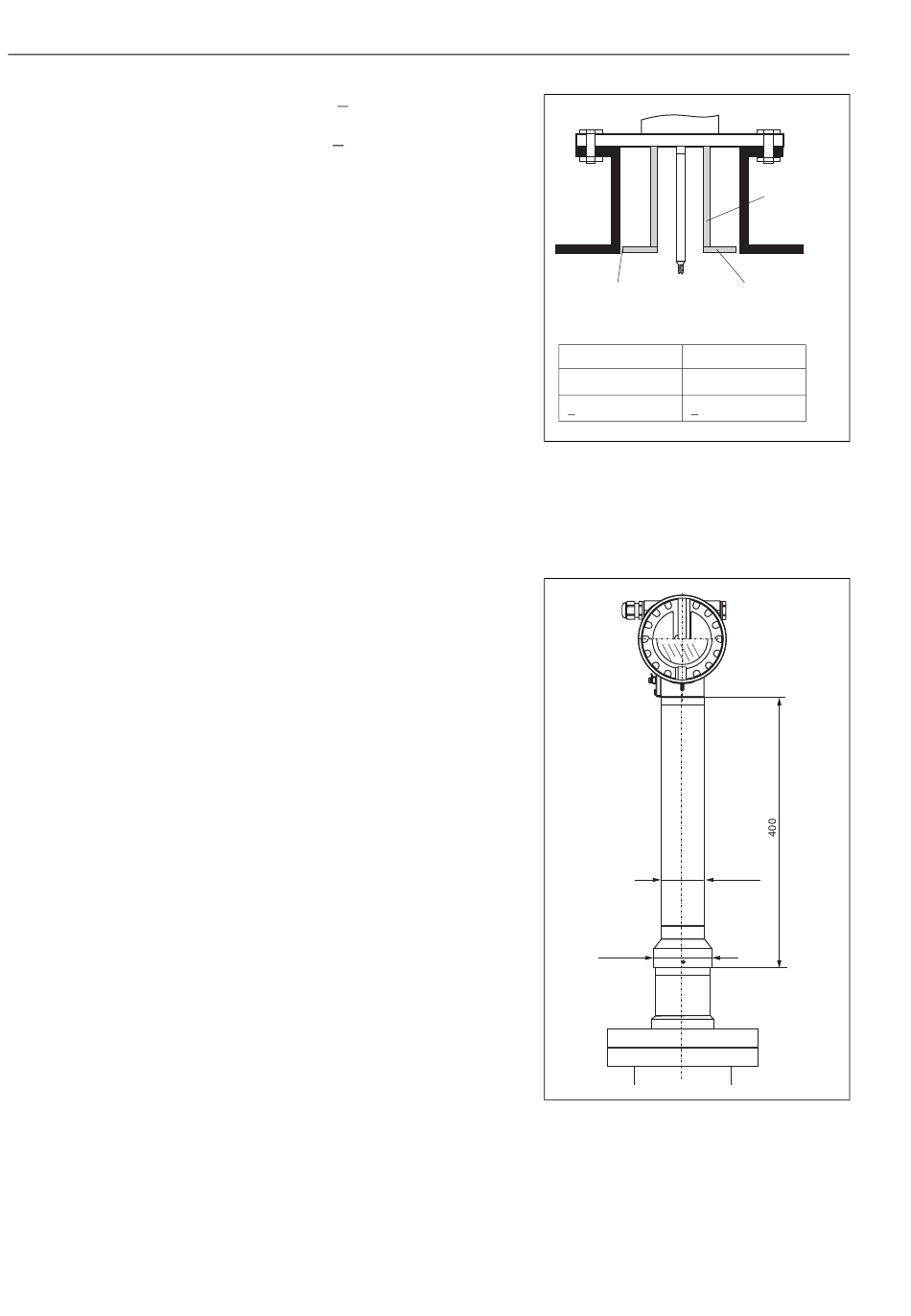

Installation in > DN 300/DN 12"
nozzles
If installation in > 300mm/12" nozzles is
unavoidable, installation must be carried
out in accordance with the sketch on the
right.
3.4.7 Installation for difficult to access process connections
For tight spaces or temperatures above that in the graphic, the electronics housing can
be ordered with distance pipe or connecting cable (seperate housing).
Installation with distance pipe
• Follow installation instructions on
Page 14 ff..
• After mounting, the housing can be
turned 350°, in order make access to the
display and the connection
compartment easier.
• The max. measuring range is reduced to
34 m/1338".
Levelflex M FMP 40 with Foundation Fieldbus
Approx. flush with
the lower edge of
±
the nozzle ( 50 mm).
nozzle diameter
DN 300
> DN 400
Ø 67
pipe
Ø 150 ... 180
plate
plate diameter
280
> 350
Ø 60,3
