5.1.1 General structure of the operating menu
The operating menu is made up of two levels:
• Function groups (00, 01, 03, ..., 0C, 0D):
The individual operating options of the instrument are split up roughly into different
function groups. The function groups that are available include, e.g.: "basic setup",
"safety settings", "profibus param.", "display", etc.
• Functions (001, 002, 003, ..., 0D8, 0D9):
Each function group consists of one or more functions. The functions perform the
actual operation or parameterisation of the instrument. Numerical values can be
entered here and parameters can be selected and saved. The available functions of
the "basic setup (00)" function group include, e.g.:"tank properties" (002), "medium
property (003)", "process cond. (004)", "empty calibr. (005)", etc.
If, for example, the application of the instrument is to be changed, carry out the following
procedure:
1. Select the "basic setup (00)" function group.
2. Select the "tank properties" (002) function (where the existing tank shape is
selected).
5.1.2 Identifying the functions

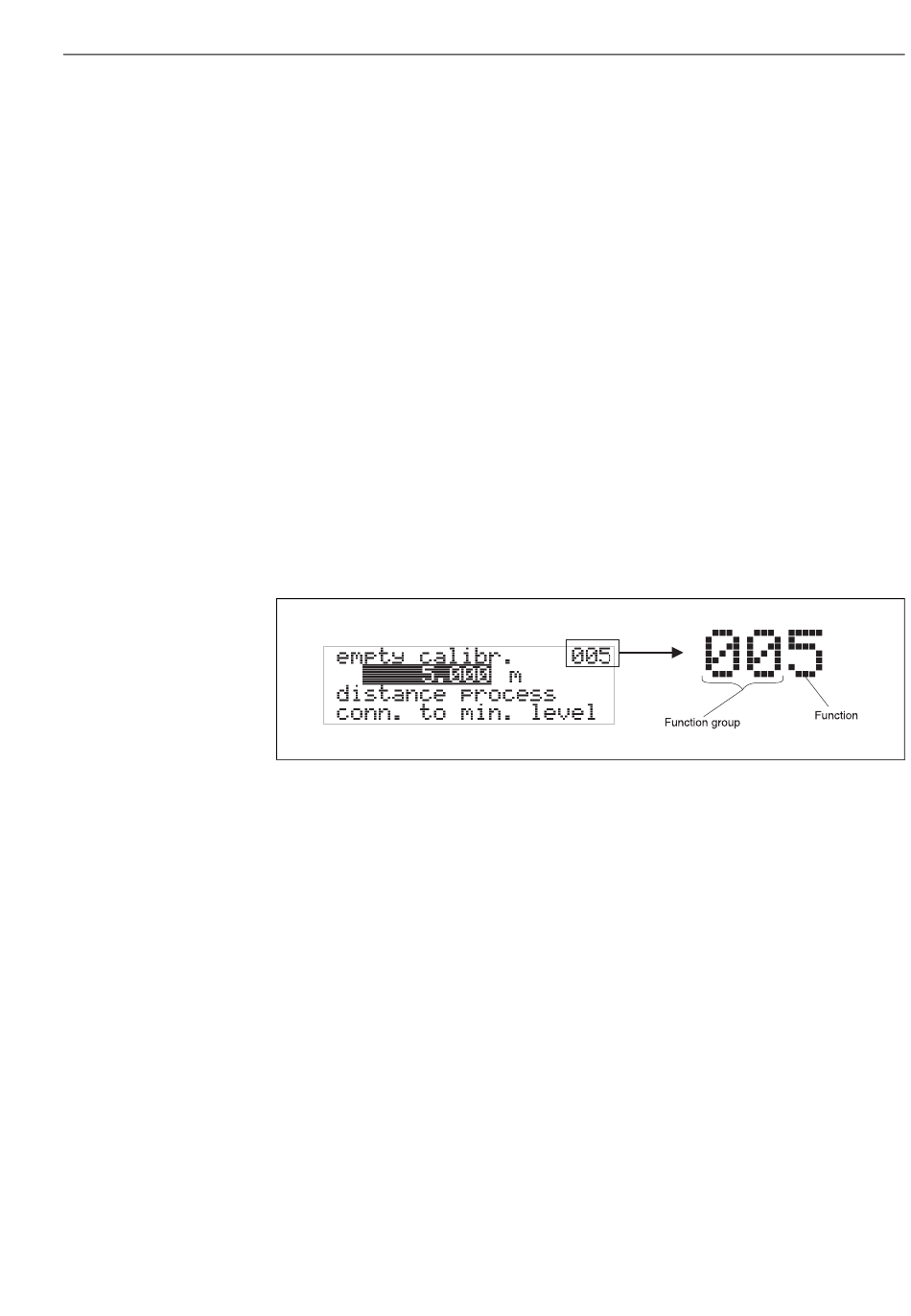

For simple orientation within the function menus, for each function a position is shown
on the display.
The first two digits identify the function group:
• basic setup
00
• safety settings
01
• length adjustment 03
...
The third digit numbers the individual functions within the function group:
• basic setup
00
• Here after the position is always given in brackets (e.g. "tank properties" (002)) after
the described function.
→ • tank properties
• medium property
• process cond.
...
5 Operation
002
003
004
