EV-ADF5904SD2Z User Guide

EVALUATION BOARD SOFTWARE

The control software for the
the evaluation kit on a CD. To install the software, follow the
on-screen instructions.
To run the software, click the ADF5904 file on the desktop or
from the Start menu.
In the Select Device and Connection tab, select the device and
the connection method, and click Connect.
EV-ADF5904SD2Z is included in

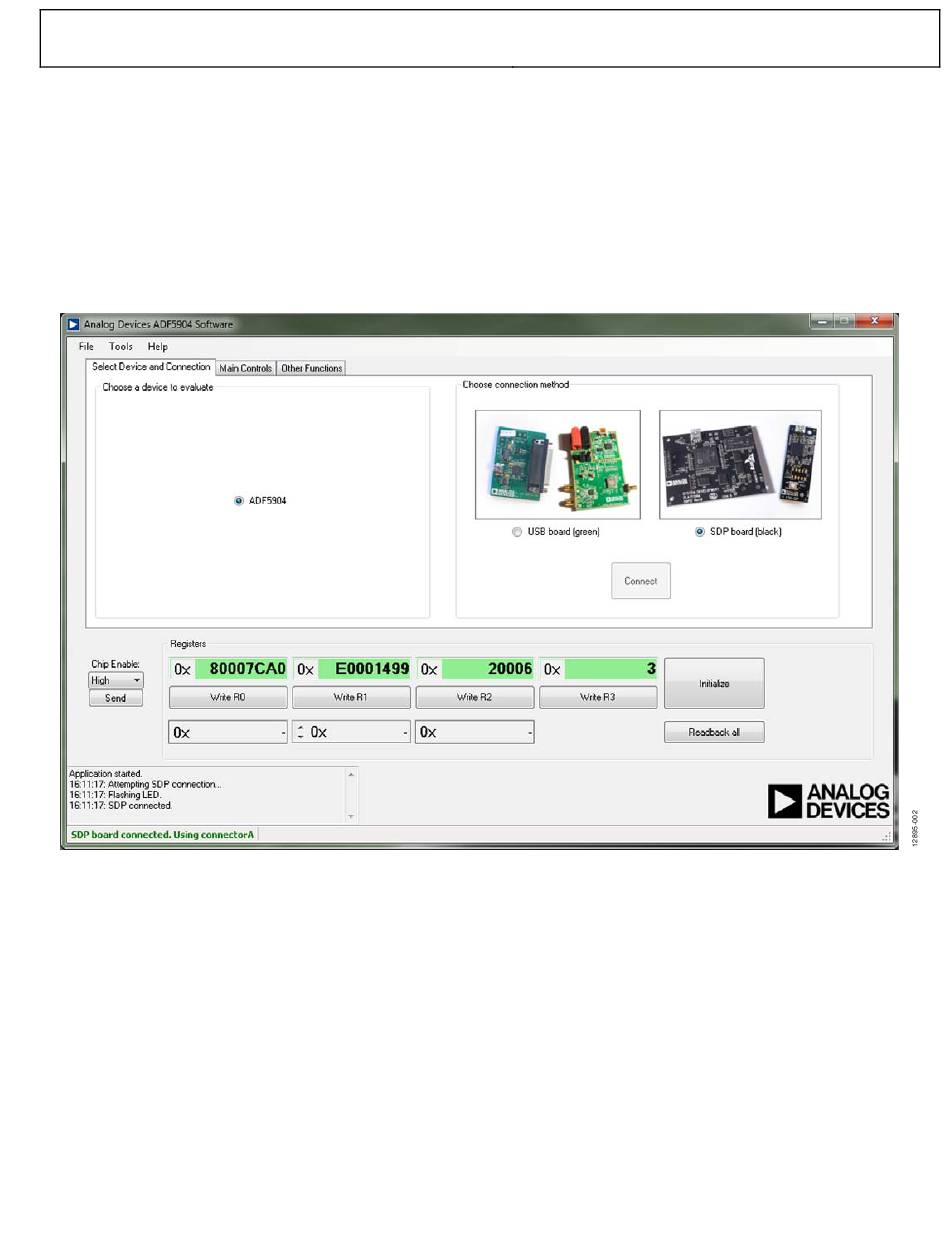

Figure 2. Software Front Panel Display—Select Device and Connection
Confirm that Analog Devices Eval Board connected is
displayed at the bottom left of the window (see Figure 2).
Otherwise, the software has no connection to the evaluation
board.
Note that, when connecting the board, it takes approximately
5 sec to 10 sec for the status label to change.
Rev. 0 | Page 5 of 14
UG-791
